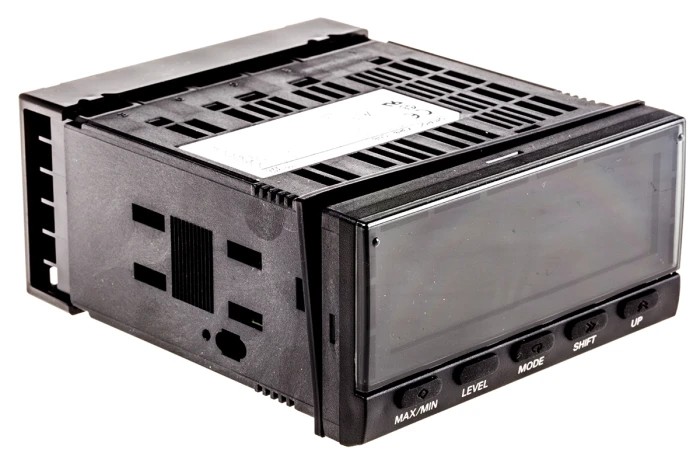

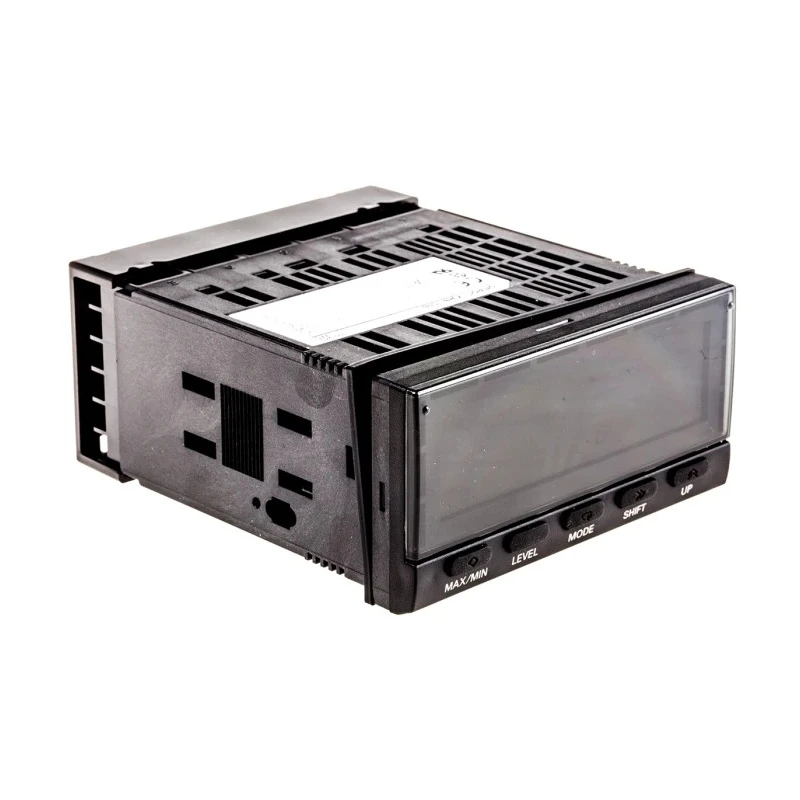

Omron 5 Digit Up/Down Pulse Counter Panel Meter 100-240Vac Supply K3HB

Omron K3HB 5 Digit Up/Down Pulse Counter Panel Meter operates on 100-240Vac supply, designed for reliable process control and automation applications. The K3HB series offers a 5-digit numeric display with a digit height of 14.2mm, providing clear readability in panel installations sized 1/8 DIN (48x96mm).

This counter supports up/down counting with a scalable input frequency up to 50kHz, able to interface with NPN, PNP open collector, voltage pulses, and non-voltage contact pulse signals. It features a dual color change display to visually indicate process status and includes a configurable bar graph that represents the magnitude of pulse inputs effectively.

Constructed with an IP66-rated front fascia, the meter withstands harsh industrial and washdown environments ensuring durability and longevity. The precise dimensions (101.2 x 112 x 48 mm) and standardized panel cut-out size (92 x 45 mm) facilitate easy mounting in control panels.

The K3HB series replaces the previous K3N range and enhances functionality by providing flexible pulse counting options suitable for encoders, sensors, and switches used in industrial automation, manufacturing, and process control systems. Optional extension cards are available for customized applications.

5-digit numeric display with 14.2mm digit height for clear visibility. Supports up/down counting with input speeds up to 50kHz. Accepts multiple pulse input types including NPN, PNP, and voltage pulses. IP66 rated front fascia for protection in harsh environments.

Configurable bar graph and dual color change display for process status indication. Compact 1/8 DIN size for panel mounting with standardized cut-out dimensions. Applications include industrial automation, process control, and measurement systems.
