Kubler CODIX 560 Digital 6-Digit Counter LED Display Voltage 10-30VDC 14mm Digit Height 6.560.010.300

Kubler 6.560.010.300 CODIX 560 series is a high-precision digital 6-digit counter designed for industrial process control and automation applications. Its multifunctional design combines counting, timing, and position display functions in a single LED-based instrument operating at 10-30V DC supply voltage.

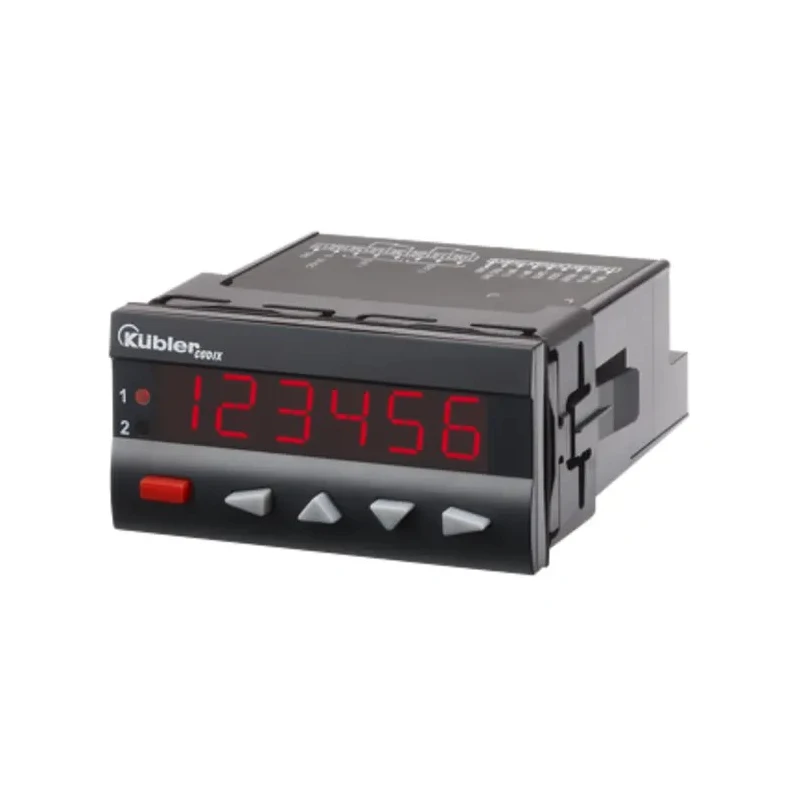

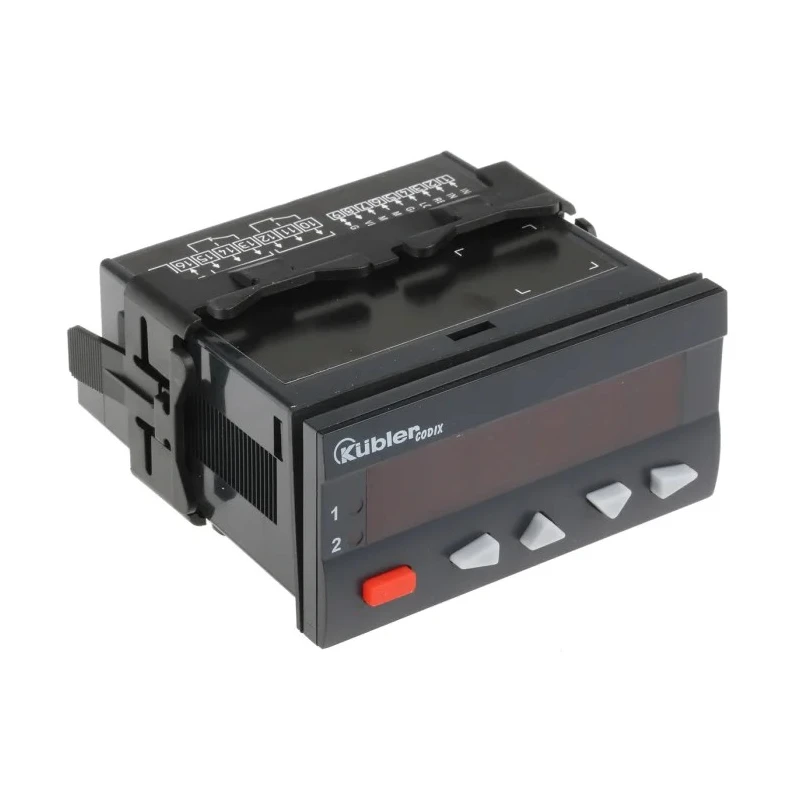

The 14mm high LED digits offer clear visibility even under poor ambient lighting and from long distances. Ergonomically designed front keys allow comfortable operation, including when wearing gloves, facilitating use in rugged industrial environments.

This counter supports dual presets with up to six digits display, suitable for applications such as batch counting, position monitoring, totalization, or tachometer functions. Multiple count modes and preset tracking features eliminate reprogramming needs, enhancing operational efficiency.

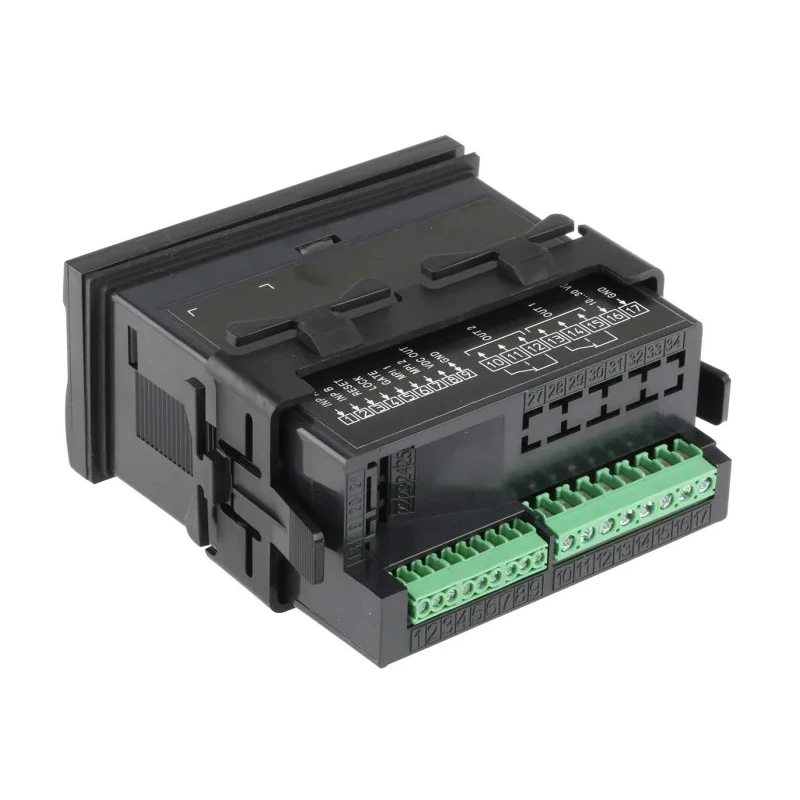

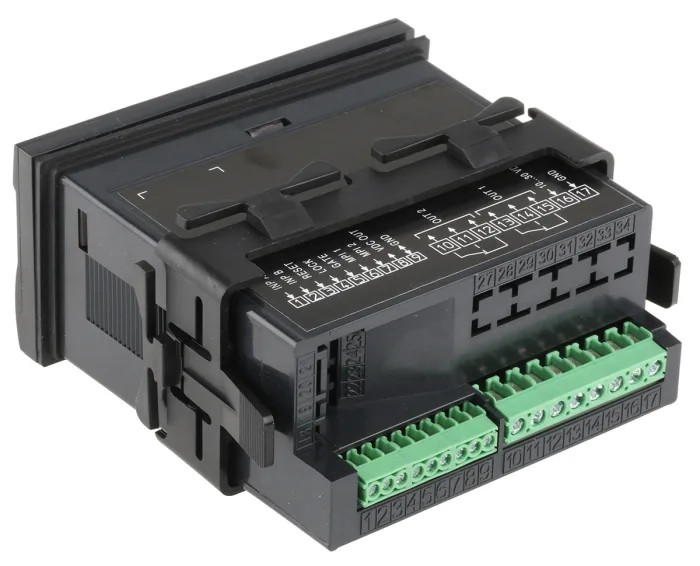

Installation is simplified by the plug-in screw terminal connections, and its compact front panel dimensions of 96mm x 48mm make it suitable for integration into mosaic systems. The device meets IP65 standards ensuring effective protection against dust and water, suitable for harsh industrial settings.

The operating temperature range spans from -20°C to 65°C, allowing reliable performance across diverse environments. Additional features include status displays of presets, four-stage reset modes, and robust three-stage keypad locking to prevent unauthorized changes.

Kubler CODIX 560 counters find extensive use in manufacturing assembly lines, industrial counting applications, and control and monitoring systems requiring accurate and reliable digital displays.

This product is made in Germany, ensuring high quality and durability for demanding process control requirements. Dual preset 6-digit multifunction counter with LED display. Voltage rating 10 to 30 V DC with plug-in screw terminals.

IP65 protection for harsh industrial environments. Wide operating temperature range -20°C to 65°C. Suitable for batch counting, totalizing and tachometer functionalities. Large digits (14mm) for excellent visibility from distance.

4-stage reset and 3-stage keypad locking for secure operation. Compact 96mm x 48mm front panel size for easy panel integration. Made in Germany with robust build quality. Browse the full range of Kubler industrial Counters and digital controls on EnvMart for advanced automation solutions.
