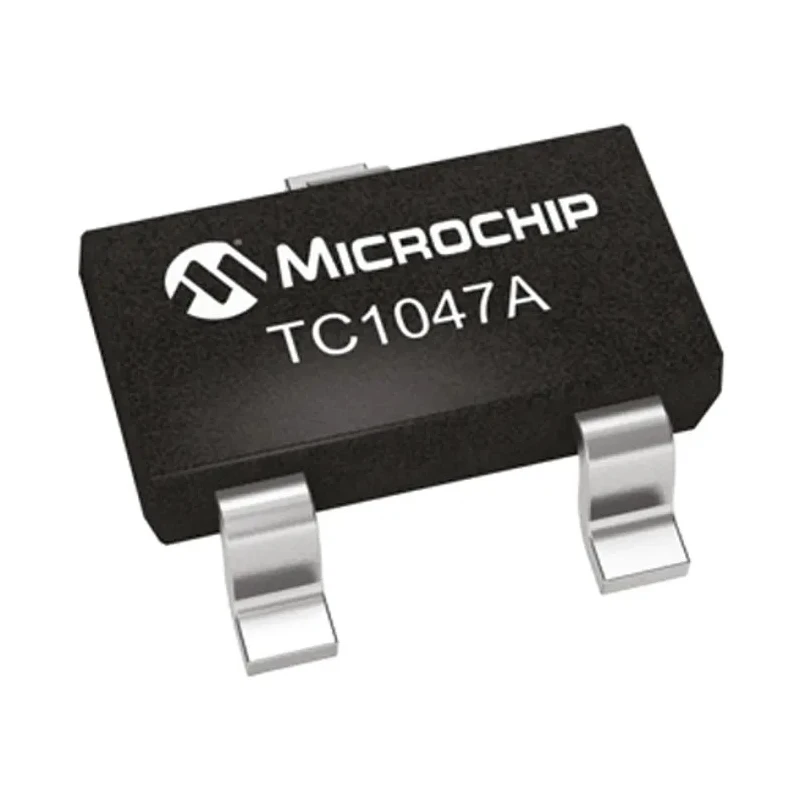

Microchip Voltage Output Voltage Temperature Sensor, Surface Mount Analogue 3-Pin SOT-23, Accurate ±2°C TC1047
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±2°C |
| Brand | Microchip |
| Height | 1.02mm |
| Length | 3.05mm |
| Model | TC1047 |
| Width | 1.4mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | TC1047 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Sensor Gain | 10mV/°C |
Key Features
- Surface mount device in compact 3-pin SOT-23 package.
- Operates over supply voltage range of 2.5V to 5.5V.
- Measurement range spans -40°C to +125°C for wide industrial applications.
- Output voltage linearly proportional to temperature with 10mV per degree Celsius gain.
- Reliable temperature sensing ideal for mobile phones, temperature regulation, and controlled fans.
- Robust design manufactured in Thailand ensures quality and consistency.
- Low profile with dimensions of 3.05mm length, 1.4mm width, and 1.02mm height.
Product Description
Microchip TC1047 temperature sensor is a voltage output, analogue interface device designed for accurate temperature-to-voltage conversion across -40°C to +125°C operational range. Its compact 3-pin SOT-23 surface mount package facilitates integration into densely packed electronic assemblies.
Operating within a supply voltage range of 2.5V to 5.5V, the sensor produces an output voltage proportional to the ambient temperature with a gain of 10 mV/°C and accuracy of ±2°C, making it suitable for precision temperature monitoring needs.
Common applications include mobile phone thermal management, temperature-controlled fans, and temperature regulation systems in various industrial electronics.
The sensor's package dimensions - 3.05mm in length, 1.4mm width, and 1.02mm height - support space-constrained designs. Manufactured in Thailand, it fulfills quality requirements for reliable and durable performance.
Surface mount 3-pin SOT-23 packaging. Linear voltage output with 10 mV/°C sensitivity. Wide operating temperature range from -40°C to +125°C. Supply voltage range 2.5V to 5.5V for flexible system design. Accurate ±2°C temperature measurement.
Designed for demanding electronic and industrial temperature-sensing use cases. Compact and low-profile suitable for mobile and embedded systems.
This Temperature Sensor is optimal for industrial, electronics manufacturing, HVAC, mobile device thermal management, and embedded instrumentation applications. Explore our Electronics & Electricals category at EnvMart to find more Microchip sensors and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TC1047 temperature sensor has a measurement range spanning from -40°C to +125°C.
It operates within a supply voltage range of 2.5V to 5.5V.
This model provides a voltage output that is linearly proportional to the temperature, with a gain of 10 mV per degree Celsius.
The sensor has dimensions of 3.05mm in length, 1.4mm in width, and 1.02mm in height.
The accuracy of this sensor is ±2°C, making it suitable for precision temperature monitoring.
It is designed as a surface mount device in a 3-pin SOT-23 package.
Common applications include mobile phone thermal management, temperature-controlled fans, and various industrial electronics temperature regulation systems.
The sensor has a gain of 10 mV/°C, providing a linear output relative to temperature changes.
The maximum operating temperature for the TC1047 is 125°C.
The minimum operating temperature for this model is -40°C.
The TC1047 is manufactured in Thailand, ensuring quality and consistency.
This model utilizes an analogue interface for its output.
