Eurotherm 3 Phase DIN Rail Power Controller Relay 100A 500V TFT Display EPACK-3PH/100A/500V/XXX/V2/XXX/XXX/TCP

Free Delivery in India | Lowest Global Shipping Charges

Eurotherm 3 Phase DIN Rail Power Controller Relay 100A 500V TFT Display EPACK-3PH/100A/500V/XXX/V2/XXX/XXX/TCP

Name: Eurotherm 3 Phase DIN Rail Power Controller Relay 100A 500V TFT Display EPACK-3PH/100A/500V/XXX/V2/XXX/XXX/TCP
Brand: Eurotherm
SKU: 93935
Price: 4134.34 USD
Availability: InStock



Category Power Controller Brand Eurotherm Condition New

Specifications

Country of Origin	Poland
Display Type	TFT
Brand	Eurotherm
Length	160mm
Model	EPACK-3PH/100A/500V/XXX/V2/XXX/XXX/TCP
IP Rating	IP20
Width	242mm
Mount Type	DIN Rail
Output type	Relay
Series	EPACK-3PH
Input Type	Analogue
Maximum Operating Temperature	45°C
Control Type	Power Controller
Minimum Operating Temperature	0°C
Interfaces	Ethernet communications with zero configuration networking
Maximum Current	100A
Terminal type	Ring Type Crimp
Maximum Supply Voltage	500V
Digital Comms	Profinet Interface, Ethernet, Modbus TCP, IP
Panel Depth	230mm
Controlled Phases	3

Key Features

Compact DIN Rail mounting suitable for industrial installations.
Features TFT display for clear diagnostics and monitoring.
Supports Profinet, Ethernet, and Modbus TCP digital communications.
Energy measurement capability with advanced load diagnostics.
Operates reliably between 0°C and 45°C ambient temperature.
Equipped with ring type crimp terminals for secure connections.
Complies with CE, IEC/EN60947, UL, and other international standards.
IP20 protection rating suitable for indoor use.

Product Description

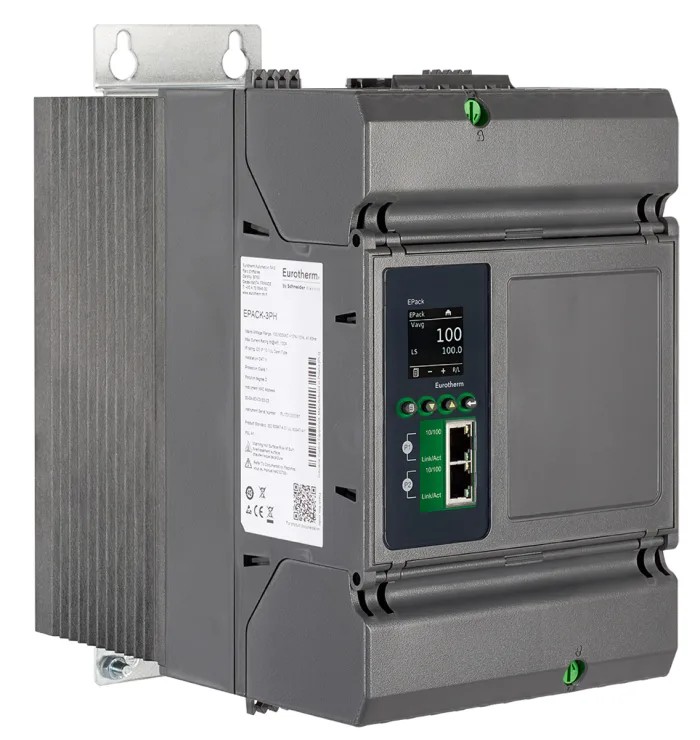

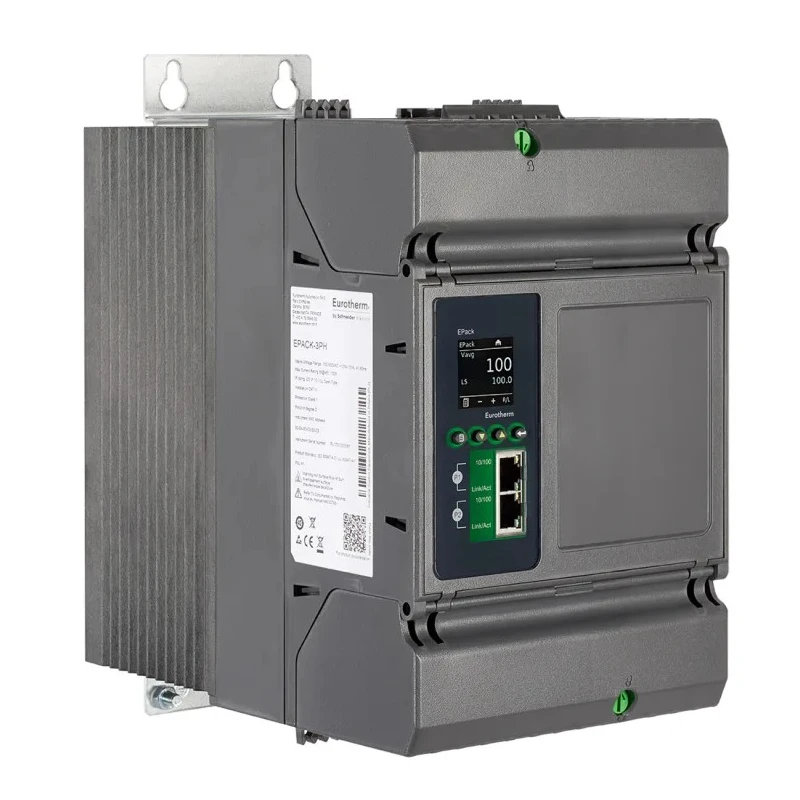

Eurotherm EPACK-3PH/100A/500V/XXX/V2/XXX/XXX/TCP is a high-performance 3 phase DIN Rail Power Controller Relay designed to control a wide variety of load types including resistive, infrared, transformer, and silicon carbide loads with complete phase accuracy and reliability at a maximum current of 100A and voltage up to 500V.

The compact design enables flexible DIN Rail or bulkhead mounting, making it suitable for industrial automation, process control, HVAC systems, and manufacturing environments. The device includes a high-resolution TFT display providing detailed diagnostics and system status, allowing users to monitor important parameters such as impedance, energy consumption, and reactive power.

The controller is equipped with advanced communication interfaces including Profinet, Ethernet, and Modbus TCP, facilitating seamless integration into industrial networks and remote management of load control. It supports energy measurement and offers comprehensive diagnostics for alarm management and predictive maintenance, ensuring optimal performance and reducing downtime.

Designed to operate within industrial temperature ranges of 0°C to 45°C, and protected to IP20 standards, this controller offers robustness for indoor environments. The terminal connections use ring type crimps for secure and reliable electrical connections in demanding applications.

The product complies with multiple internationally recognized standards such as CE marking, IEC/EN60947-4-3:2014, UL60947-4-1, CAN/CSA C22.2 NO.60947-4-1-14, RCM, and is certified for cybersecurity according to Achilles CRT Level 1, making it suitable for critical infrastructure and safety-conscious industrial applications.

Compact DIN Rail and bulkhead mounting options enable versatile installation in industrial control panels. Integrated dual port Ethernet switch allows daisy chained communications, minimizing cabling complexity. Configurable via front panel with plug and play Ethernet communications, facilitating user-friendly setup.

Advanced load diagnostics and energy measurement capabilities support efficient energy management and predictive maintenance. Supports multiple industrial digital communication protocols including Modbus TCP, Ethernet/IP, and Profinet for flexibility and network integration.

Set your automation projects apart with the Eurotherm EPACK-3PH Power Controller, engineered for precision, reliability, and connectivity in controlling three-phase loads. Explore additional products under the Power Relays category at EnvMart for comprehensive electrical control solutions.
