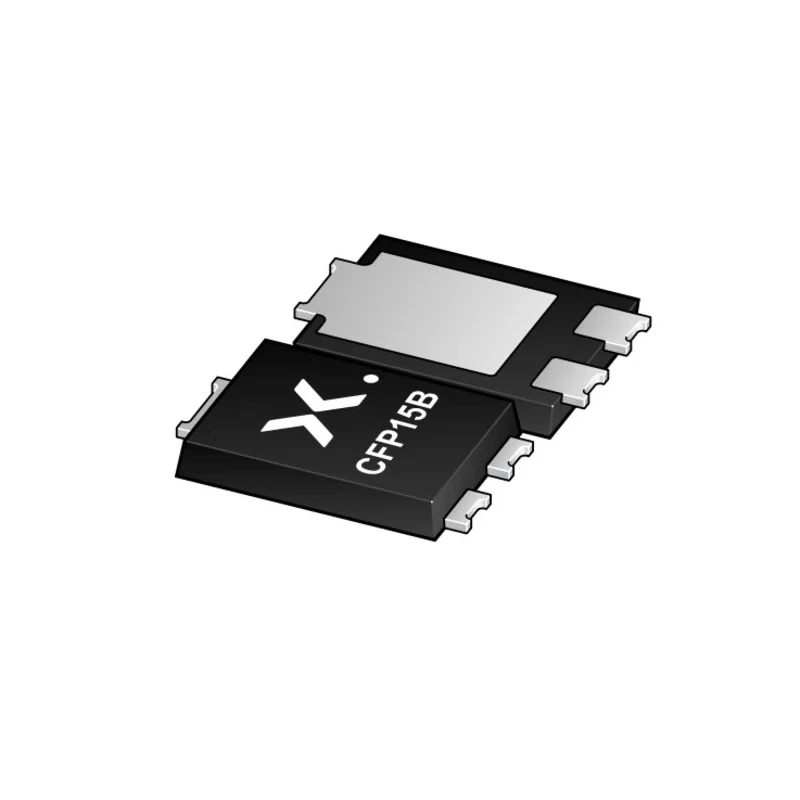

Nexperia 100 V 20 A Rectifier & Schottky Diode Schottky Barrier 3-Pin CFP15B PMEG100T200ELPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T200ELPEZ |
| Mount Type | Surface |
| Series | PMEG100T200ELPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Barrier |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 260A |
| Maximum Forward Voltage Vf | 840mV |
| Peak Reverse Recovery Time trr | 55ns |
Key Features
- Low forward voltage ensures minimal energy loss during operation.
- Low leakage current increases energy efficiency.
- High peak non-repetitive forward surge current of 260 A for transient protection.
- Wide operating temperature range from -55°C to 175°C for robust performance.
- Compact surface mount CFP15B package suitable for automated PCB assembly.
- Schottky barrier rectifier technology provides fast switching with a peak reverse recovery time of 55 ns.
- Automotive standard compliant with AEC-Q101 for reliability in automotive applications.
- Ideal for use in LED lighting, switch mode power supplies, freewheeling applications, and reverse polarity protection circuits.
Product Description
Nexperia PMEG100T200ELPEZ is a high-performance 100 V, 20 A rectifier and Schottky diode featuring a Schottky barrier housed in a compact 3-pin CFP15B surface mount package. This device is engineered for efficient power conversion applications requiring low forward voltage and leakage current.
The diode supports a maximum continuous forward current of 20 A and a peak non-repetitive forward surge current of 260 A, ensuring robustness against transient surges. It operates reliably across a wide temperature range from -55°C to 175°C, making it suitable for both industrial and automotive environments.
Thanks to advanced clip-bonding technology, this Schottky diode exhibits high power capabilities while maintaining low electrical losses. The package design facilitates automated placement in PCB assembly lines and enhances thermal management.
Key applications include LED lighting circuits, switch mode power supplies, freewheeling diodes, and reverse polarity protection. The diode's fast switching speed, with a peak reverse recovery time of just 55 ns, optimizes efficiency in DC-to-DC conversion systems.
Low forward voltage ensures minimal energy loss during operation. Low leakage current improves overall device efficiency. High peak non-repetitive forward surge current of 260 A provides transient robustness. Wide operating temperature range (-55°C to 175°C) supports harsh environments.
Compact 3-pin CFP15B surface mount package enhances assembly and thermal performance. Meets automotive compliance AEC-Q101 for stringent quality standards. Fast switching enabled by Schottky barrier technology with 55 ns reverse recovery time.
Applications include LED lighting, switch mode power supplies, freewheeling, and reverse polarity protection circuits. High power capability enabled by clip-bonding technology.
Suitable for industrial, automotive, and commercial electronic applications, the PMEG100T200ELPEZ is a reliable Schottky diode offering high efficiency and robustness. Explore more Schottky Diodes and rectifiers in the EnvMart electronics category for your power management and semiconductor needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 20 A.
This Schottky diode has a peak reverse repetitive voltage rating of 100 V.
It operates reliably across a wide temperature range from -55°C to 175°C.
The peak non-repetitive forward surge current for this diode is 260 A.
This model comes in a compact 3-pin CFP15B surface mount package.
It complies with the AEC-Q101 automotive standard for reliability in automotive applications.
The peak reverse recovery time is 55 ns, enabling fast switching capabilities.
The maximum forward voltage drop is 840 mV.
It is suitable for applications such as LED lighting, switch mode power supplies, freewheeling diodes, and reverse polarity protection circuits.
The peak reverse current is 10 mA.
This model is a Schottky barrier rectifier.
The country of origin for this Schottky diode is India.
