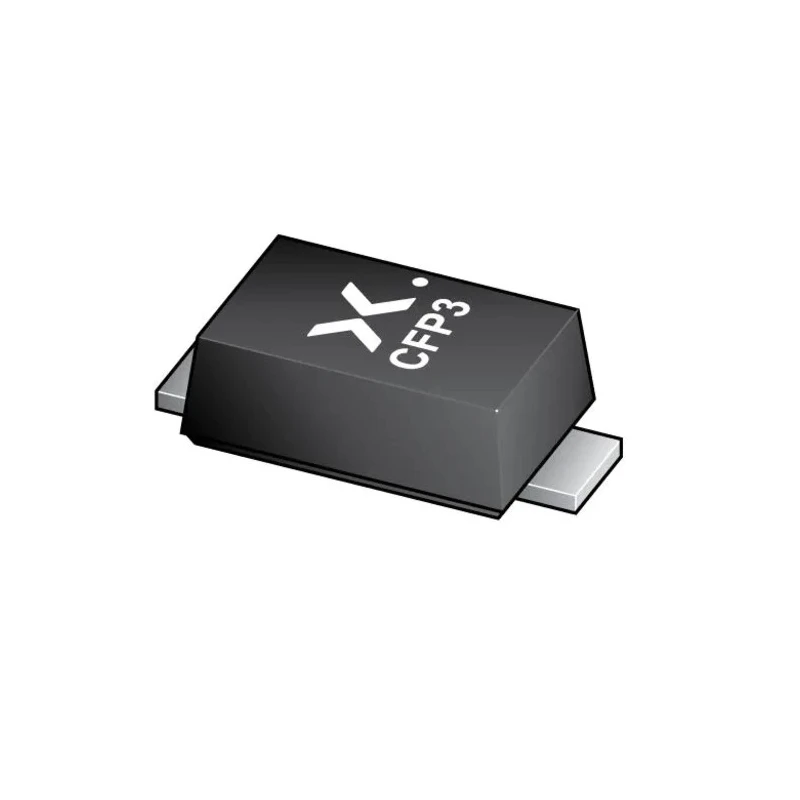

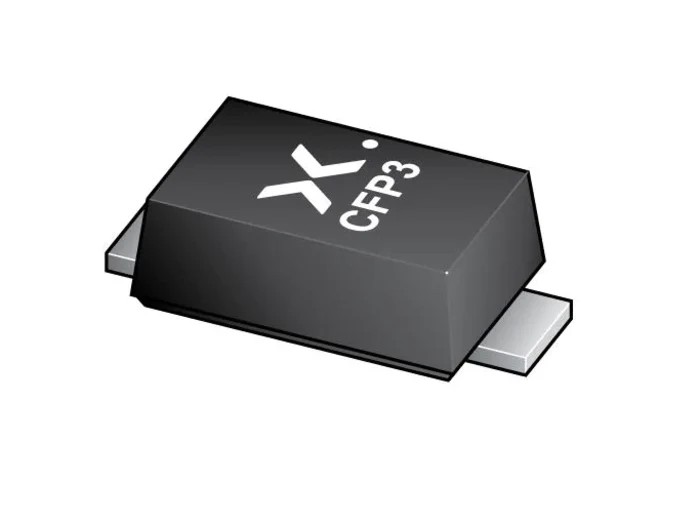

Nexperia 100 V 1 A Rectifier & Schottky Diode Trench MEGA Schottky 2-Pin CFP3 PMEG100T10ELR-QX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T10ELR-QX |
| Mount Type | Surface |
| Series | PMEG100T10ELR-Q |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Trench MEGA Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 750mV |
| Peak Reverse Recovery Time trr | 4ns |
Key Features
- Encapsulated in a small and flat lead CFP3 (SOD123W) surface-mounted device package.
- Low forward voltage and low leakage current for improved efficiency.
- High power capability enabled by clip-bonding technology.
- Peak non-repetitive forward surge current rating of 40 A.
- Qualified according to AEC-Q101 automotive standard for reliable automotive applications.
- Operating temperature range from -55°C to 175°C.
- Ideal for automotive LED lighting and high efficiency DC-to-DC converters.
- Applications include switch mode power supply, freewheeling, reverse polarity protection, and OR-ing circuits.
Product Description
The Nexperia PMEG100T10ELR-QX is a highly efficient 100 V, 1 A trench MEGA Schottky barrier rectifier diode designed for surface-mount applications. Encapsulated in a compact CFP3 (SOD123W) plastic package with two pins, this diode is optimized for low forward voltage and low leakage current, improving energy efficiency and thermal performance.
Thanks to clip-bonding technology, the device supports high power handling capabilities and fast peak non-repetitive forward surge currents up to 40 A. It features a maximum forward voltage of 750 mV and a very short peak reverse recovery time of 4 ns, making it suitable for high-speed switching applications.
Qualified to the automotive AEC-Q101 standard, the PMEG100T10ELR-QX diode is recommended for rigorous automotive environments requiring robust and reliable semiconductor components. It operates over an extended temperature range from -55°C to 175°C, allowing use in demanding industrial and automotive conditions.
Typical industrial use cases include automotive LED lighting, high efficiency DC-to-DC power conversion, switch mode power supplies, freewheeling diodes, reverse polarity protection circuits, and OR-ing diodes in power management systems.
The CFP3 package type ensures a small footprint suitable for space-constrained PCB designs while maintaining excellent thermal dissipation characteristics. The diode’s single-diode configuration with a 2-pin layout facilitates straightforward implementation in complex electronic circuits.
Encapsulated in a compact CFP3 plastic surface mount package. Designed for low forward voltage and leakage current operation. High power rating enabled by clip-bonding technology. Qualified AEC-Q101 automotive standard semiconductor.
Operating temperature range from -55°C to 175°C for harsh environments. Peak surge current capability of 40 A ensures reliability in surge events. Fast peak reverse recovery time of 4 ns suitable for high-frequency switching applications.
Applications include automotive LED lighting, DC-to-DC conversion, and switch mode power supplies. Explore the Nexperia range at EnvMart for advanced semiconductor solutions optimized for automotive and industrial electronics.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 175°C.
It has a peak non-repetitive forward surge current rating of 40 A.
The maximum continuous forward current it can handle is 1 A.
The peak reverse repetitive voltage rating for this diode is 100 V.
The maximum forward voltage drop is 750 mV.
It is encapsulated in a CFP3 (SOD123W) plastic package.
The peak reverse recovery time is 4 ns.
Yes, it is qualified according to the AEC-Q101 automotive standard.
Typical applications include automotive LED lighting, high efficiency DC-to-DC converters, and switch mode power supplies.
The minimum operating temperature is -55°C.
This model has a 2-pin configuration.
It is a trench MEGA Schottky barrier rectifier diode.
