| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C5V1YL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 5.1V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 500Ω |
| Typical Voltage Temperature Coefficient | -2mV/K |

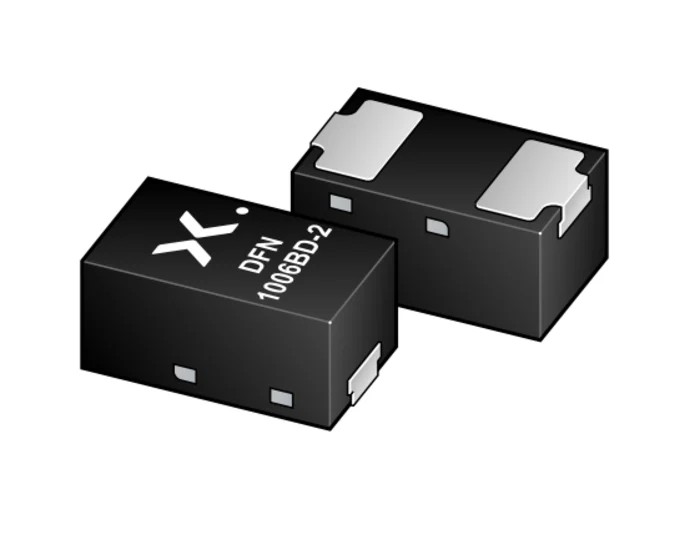

Nexperia BZX8850S-C5V1YL is a single Zener diode designed for voltage regulation applications, featuring a nominal Zener voltage of 5.1 V and a maximum power dissipation rating of 365 mW. It comes in a compact DFN1006BD-2 surface mount package with 2 pins, suitable for modern electronics requiring space-efficient component mounting.
This diode is characterized by a ±5% voltage tolerance, enabling precise regulation in low current circuits. It operates over a wide temperature range, from -55°C to 150°C, making it suitable for industrial and automotive electronics that demand reliability under varying environmental conditions.
The low test current of 50 μA and maximum reverse leakage current of 5 μA emphasize its efficiency in portable and battery-powered devices. The maximum Zener impedance of 500 Ω supports stable voltage regulation with minimal noise impact.
Compliance with the automotive standard AEC-Q101 attests to its quality and suitability for automotive electronics. With a very small form factor measuring 1 mm in length and 0.47 mm in height, this component is ideal for densely packed circuit boards in industrial, laboratory, automotive, and communication equipment.
Single Zener Diode in DFN1006BD-2 package for surface mounting. Maximum power dissipation of 365 mW with 5.1 V nominal voltage. Operating temperature range from -55°C to 150°C for diverse applications. Voltage tolerance of ±5% allowing stable voltage regulation.
Low test current of 50 μA for efficient power usage. Compliant with automotive AEC-Q101 standard ensuring high reliability. Dimensions are 1 mm length and 0.47 mm height for space efficiency.
This Nexperia voltage regulator diode is widely used in industrial, automotive, laboratory, and electronic manufacturing segments. It is particularly effective in low bias voltage regulation and power-sensitive portable electronic devices.
