| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C3V6YL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 7.5μA |
| Nominal Zener Voltage Vz | 3.6V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 600Ω |
| Typical Voltage Temperature Coefficient | -3.5mV/K |

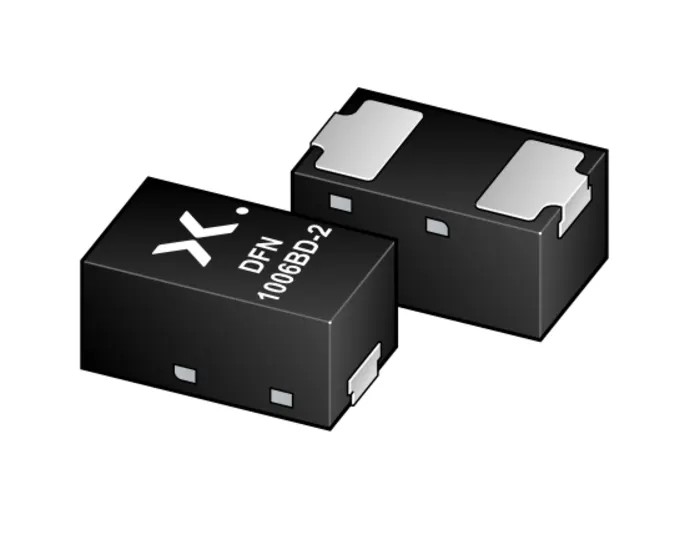

Nexperia BZX8850S-C3V6YL is a high-quality Zener Diode designed as a voltage regulator diode with a nominal Zener voltage of 3.6 V and maximum power dissipation of 365 mW. It features a single diode configuration in a compact DFN1006BD-2 surface mount package with two pins, optimized for low profile electronic assemblies.
This diode is suitable for a wide range of industrial, automotive, and electronic circuit applications requiring voltage regulation and surge protection. Its operating temperature range from -55°C to 150°C and automotive-grade AEC-Q101 certification ensure durability and reliability in harsh and demanding environments.
The device offers a precise voltage tolerance of ±5% with a test current of 50 µA and maintains a maximum Zener impedance of 600 ohms, making it ideal for low bias and portable battery-powered applications. The very low maximum reverse leakage current of 7.5 µA helps minimize power consumption.
Its ultra-small form factor with dimensions of approximately 1 mm length and 0.47 mm height enables its integration into compact circuit boards where space is at a premium. The side-wettable flanks of the package allow for improved solder joint reliability in automated assembly.
Nominal Zener voltage: 3.6 V. Maximum power dissipation: 365 mW. Single diode configuration. Surface mount package: DFN1006BD-2. Pin count: 2. Temperature coefficient: -3.5 mV/K. Operating temperature range: -55°C to 150°C.
Automotive AEC-Q101 standard compliant. Maximum reverse leakage current: 7.5 µA. Test current: 50 µA.
This Zener Diode is ideal for applications such as voltage regulation and stabilization in power supplies, automotive electronics, portable devices, and general circuit protection in industrial and manufacturing setups. It provides efficient voltage regulation in compact designs requiring high reliability.
