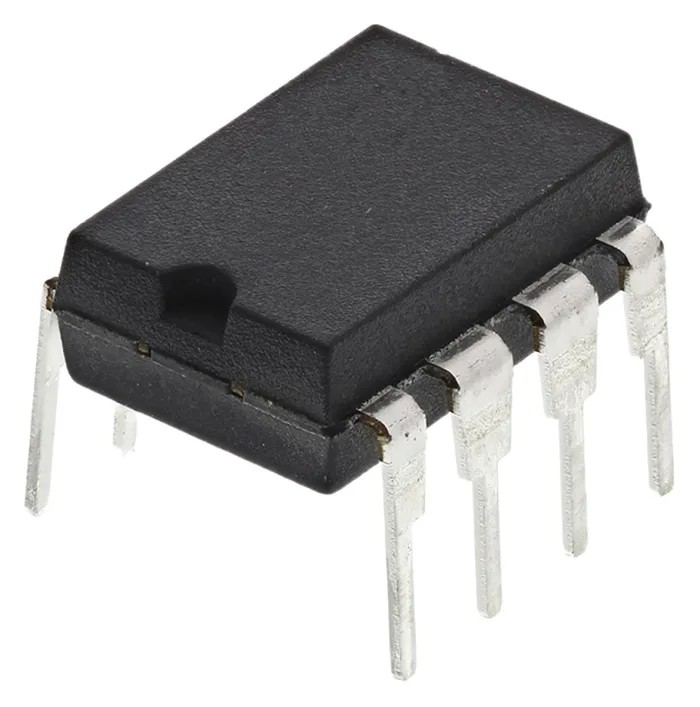

Texas Instruments Operational Amplifier 10 MHz, 8-Pin PDIP 22V NE5534AP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | NE5534AP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | NE5534 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | -22V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 2000 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 400 nA |
Key Features
- Single channel operational amplifier optimized for low noise applications.
- Gain bandwidth product of 10 MHz ensures wide frequency response.
- Operates on supply voltages from -22V to +22V.
- Input offset voltage of 5 mV for high precision signal amplification.
- Input bias current of 2000 nA and offset current of 400 nA typical.
- Slew rate of 13 V/μs suitable for fast signal response.
- Operating temperature range from 0°C to 70°C for reliable use.
- Through hole mount type in PDIP package with 8 pins measuring 9.81 mm × 6.35 mm × 4.57 mm (L×W×H).
Product Description
Texas Instruments NE5534AP is a precision operational amplifier designed for low noise and high-speed applications. Featuring a gain bandwidth product of 10 MHz, this single-channel amplifier provides stable operation within supply voltages ranging from -22V to +22V. Its low input offset voltage and bias currents make it ideal for high-accuracy analog signal processing.
This 8-pin PDIP (Plastic Dual In-line Package) device supports through-hole mounting and is compact with dimensions 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, suitable for diverse electronic circuit designs.
The device operates reliably in ambient temperatures from 0°C to 70°C, making it suitable for industrial, laboratory, and electronic manufacturing environments. Its fast slew rate of 13 V/μs accommodates rapid signal changes, enhancing performance in audio, instrumentation, and control applications.
Single channel, low noise operational amplifier tailored for precision analog electronics. 10 MHz gain bandwidth product ensures broad frequency range handling. Wide supply voltage range of -22V to 22V for versatile circuit integration.
Low input offset voltage and bias current improve analog accuracy. Fast 13 V/μs slew rate enables rapid waveform transitions. Compact 8-pin PDIP package supporting through-hole mounting for easy PCB assembly. Operating temperature from 0°C to 70°C suitable for various industrial and commercial applications.
RoHS compliant, meeting modern electronic environmental standards.
The NE5534 series operational amplifier from Texas Instruments is widely used in laboratory instrumentation, audio processing equipment, industrial control systems, and precision measurement devices. Its robust electrical characteristics and mechanical package ensure dependable performance in design projects demanding low noise and high speed.
Explore the wide range of amplifier components and Operational Amplifiers available at EnvMart for enhancing your electronics projects with reliable, tested parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 10 MHz, ensuring a wide frequency response suitable for various applications.
It operates reliably within a temperature range of 0°C to 70°C, making it suitable for industrial and commercial applications.
This operational amplifier has dimensions of 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The input offset voltage is 5 mV, which contributes to high precision in signal amplification.
The slew rate of this operational amplifier is 13 V/μs, allowing for fast signal response suitable for rapid waveform transitions.
It can operate on supply voltages ranging from -22V to +22V, providing versatility for circuit integration.
This model is a single-channel operational amplifier, optimized for low noise applications.
It supports through-hole mounting and comes in an 8-pin PDIP package, making it easy to integrate into various circuit designs.
The input bias current is typically 2000 nA, with an input offset current of 400 nA, enhancing analog accuracy.
Yes, this operational amplifier is RoHS compliant, meeting modern electronic environmental standards.
It is widely used in laboratory instrumentation, audio processing equipment, industrial control systems, and precision measurement devices.
The NE5534AP is manufactured in India.
