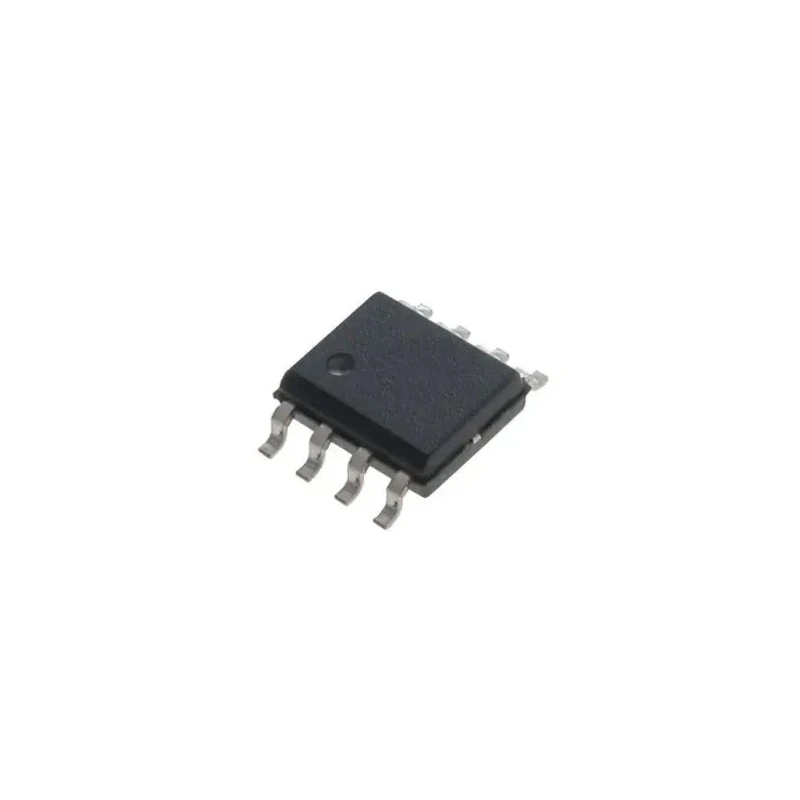

Nisshinbo Micro Devices Operational Amplifier 3 MHz 8-Pin SSOP 4-18V NJM4558V-TE2

Nisshinbo Micro Devices NJM4558V-TE2 is a high-performance dual operational amplifier with a gain bandwidth of 3 MHz and housed in an 8-pin SSOP surface mount package. This amplifier is designed for precise and efficient analog signal amplification in various electronics applications. Operating on a supply voltage range from 4V up to 18V, it offers reliable performance over a wide range of conditions.

Its low input offset voltage of just 6 mV coupled with an input bias current of 500 nA makes it suitable for precision signal conditioning. The wide operating temperature range from -40°C to 85°C supports use in demanding industrial or laboratory environments. With a slew rate of 1 V/μs, the NJM4558V-TE2 can handle fast signals with minimal distortion.

The device is RoHS compliant and manufactured using bipolar technology ensuring stability and consistent performance. Its dual channel configuration offers flexibility in circuit design, including in instrumentation, signal processing, and other amplification applications. Although not specifically rated for automotive standards, it is widely adopted in industrial, laboratory, consumer electronics, and communication equipment.

Designed for surface mount with 8-pin SSOP package. Dual operational amplifier channels on a single silicon chip. Gain Bandwidth Product of 3 MHz for mid-frequency applications. Supply voltage range supporting 4V to 18V operation.

Low input offset voltage and bias current for accuracy. Wide operating temperature range of -40 to 85 degrees Celsius. Slew rate allowing up to 1 V/μs signal transitions. RoHS compliant ensuring environmental safety.

This NJM4558V-TE2 operational amplifier is suitable for use in industrial electronics, manufacturing, laboratory instrumentation, communications equipment, and consumer electronic devices. It provides a balance of precision, speed, and versatility necessary for a wide spectrum of analog signal amplification tasks.
