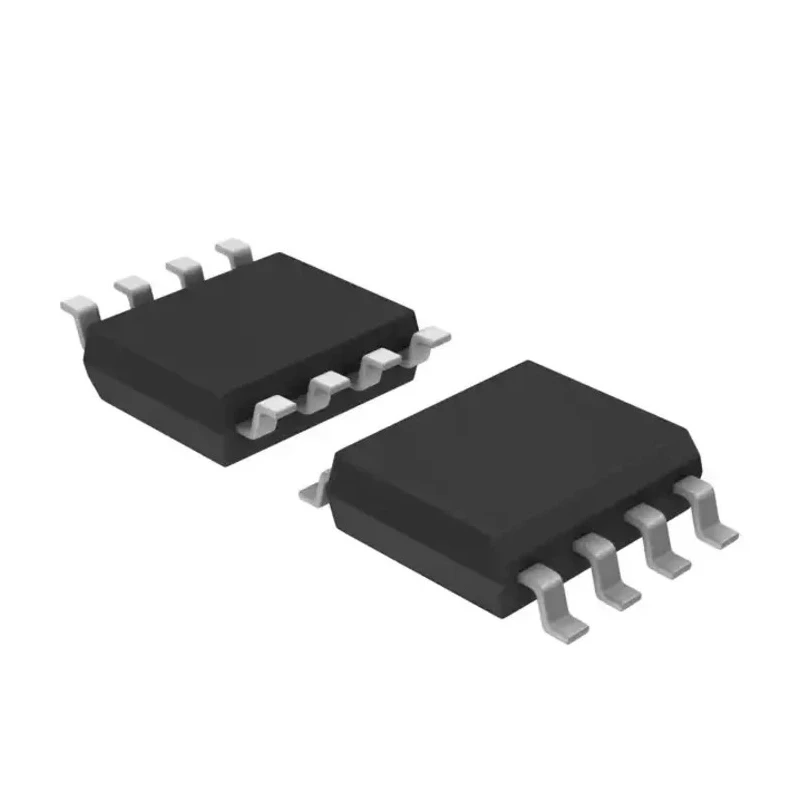

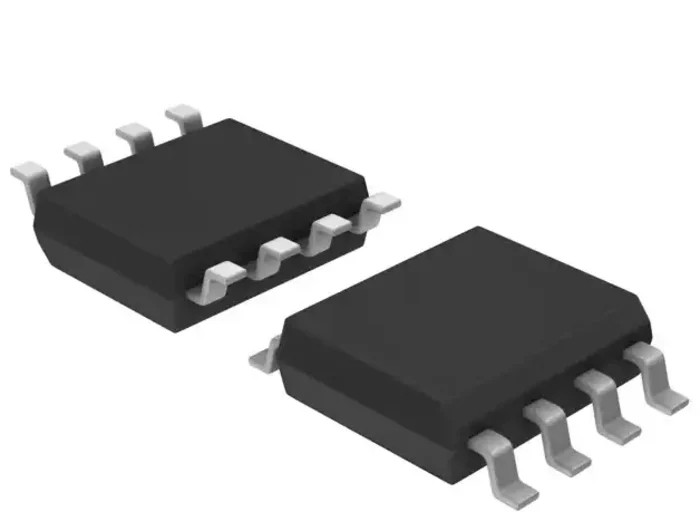

Nisshinbo Micro Devices 2-Channel Audio Amplifier IC, Surface Mount, 8-Pin, 500mW Output Power NJM2113M-TE1

Nisshinbo Micro Devices NJM2113M-TE1 is a 2-channel audio amplifier IC designed for use in audio equipment, notably telephone speaker phones. It delivers a stable output power of 500mW per channel with a supply voltage range of 2 to 16 volts, supporting a wide variety of audio applications. This IC comes in a compact 8-pin DMP surface mount package that simplifies PCB integration for modern electronic designs.

The device’s operating temperature range from -40°C to 85°C allows reliable performance even in harsh environments, making it suitable for both commercial and industrial audio systems. It is compliant with RoHS regulations, ensuring environmentally friendly manufacturing standards.

Constructed with bipolar technology, the NJM2113M-TE1 amplifier ensures efficient power consumption and superior audio fidelity. Though it is not designed for automotive applications, it excels in conventional audio electronics requiring low to moderate power amplification.

Its compact size and dual channel design enable designers to implement stereo audio amplification with minimal board space. The surface mount DMP package facilitates automated assembly, increasing production efficiency in manufacturing environments.

The amplifier supports 2 audio channels with a maximum output power of 500mW. It features an 8-pin DMP package suitable for surface mounting. Operates within a supply voltage range of 2 to 16V for flexibility in audio equipment design.

Designed to function reliably in temperature ranges from -40°C to 85°C. RoHS compliant ensuring adherence to environmental standards. Specifically optimized for telephone applications such as speaker phones. Utilizes bipolar technology for enhanced audio performance and device stability.

Compact 8-pin form factor facilitates efficient PCB layout and assembly. Does not conform to automotive standards, targeting general audio electronics.

This audio amplifier IC is ideal for use in industrial, commercial, and telecommunications audio devices requiring clear sound amplification. It is a reliable component for engineering robust electronic designs.

For additional design resources and support, engineers can utilize DesignSpark software to access 3D mechanical models, schematics, and footprints for seamless PCB and mechanical design integration.
