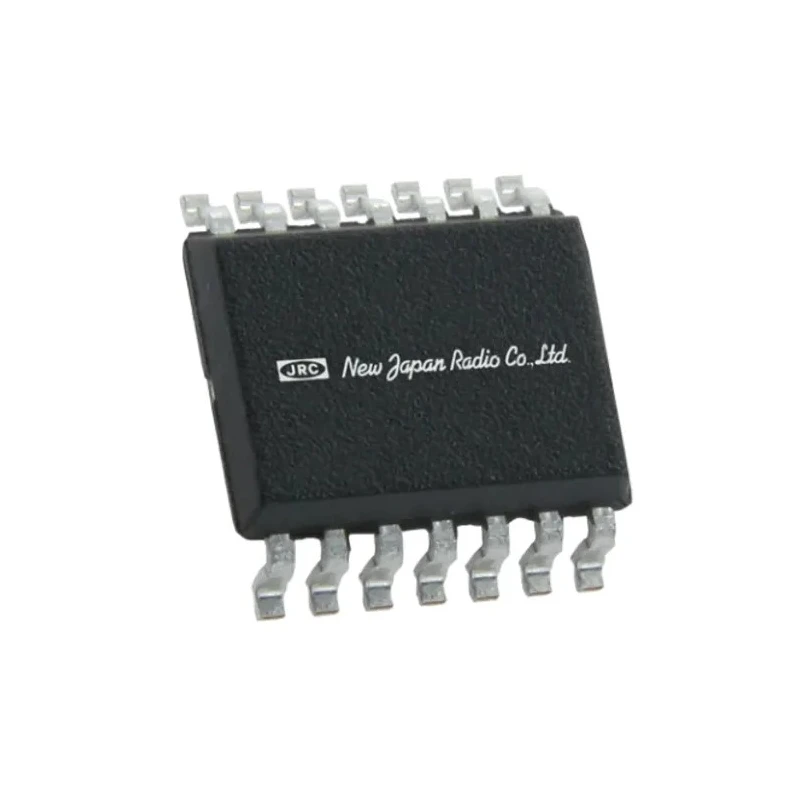

Nisshinbo Micro Devices 2-Channel Audio Amplifier IC 14-Pin SSOP 300mW NJM2761V-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2761V-TE1 |
| Output Power | 300mW |
| Mount Type | Surface |
| Series | NJM2761 |
| Maximum Operating Temperature | 75°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -20°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 6.5V |
| Minimum Supply Voltage | 14V |
| Amplifier Type | Audio |
Key Features
- Offers low output noise with bipolar technology for clear audio amplification.
- Features adjustable limit level via external resistor for speaker protection.
- Suitable for portable audio devices, PCs, and related applications.
- Wide operating voltage range from 2.7V to 13.0V supports versatile use.
- Operates effectively within a temperature range of -20°C to 75°C.
- Complies with RoHS standards ensuring environmental safety.
- Compact SSOP package with 14 pins enables easy surface mounting.
- Designed specifically as a dual-channel audio amplifier for stereo sound applications.
Product Description
Nisshinbo Micro Devices NJM2761V-TE1 is a 2-channel audio amplifier IC that provides 300mW output power packaged in a compact 14-pin SSOP surface mount design. This amplifier IC incorporates bipolar technology to reduce output noise, making it ideal for high-quality audio amplification.
The device features an adjustable limit level through an external resistor, which acts as a speaker protection mechanism preventing damage under excessive output conditions. Its wide operating voltage range from 2.7V to 13.0V plus a wide operating temperature between -20°C to 75°C make it suitable for various consumer electronics such as portable audio equipment and PC audio applications.
This IC complies with RoHS standards, ensuring it meets current environmental safety requirements. The surface mount SSOP package is designed for efficient PCB assembly in compact electronics.
Low output noise audio amplification with bipolar technology. Adjustable speaker protection limit level via external resistor. Dual-channel architecture for stereo sound applications. Wide supply voltage supporting from 2.7V up to 13.0V operation.
Operating temperature range from -20°C to 75°C for reliable performance. 14-pin SSOP package suitable for surface mounting. Compliant with RoHS environmental standards. Ideal for portable audio devices, PCs, and similar electronics.
This audio amplifier IC is widely used in industrial, commercial, and consumer electronics for audio signal amplification and speaker protection. It supports the design of compact and efficient audio systems for diverse applications.
Explore more industrial-grade semiconductor components and Audio Amplifier ICs on EnvMart for your electronic product designs and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NJM2761V-TE1 audio amplifier IC provides an output power of 300mW.
It operates within a wide voltage range from 2.7V to 13.0V, making it versatile for various applications.
This audio amplifier IC operates effectively within a temperature range of -20°C to 75°C.
It features a dual-channel architecture, providing stereo sound amplification.
The NJM2761V-TE1 is packaged in a compact 14-pin SSOP surface mount design.
Yes, it complies with RoHS standards, ensuring it meets current environmental safety requirements.
It is designed for surface mounting, suitable for efficient PCB assembly.
It incorporates bipolar technology, which helps in reducing output noise for clearer audio amplification.
It features an adjustable limit level via an external resistor, which acts as a speaker protection mechanism.
The NJM2761V-TE1 is manufactured in India.
This model is suitable for portable audio devices, PCs, and various consumer electronics requiring audio amplification.
The maximum supply voltage for this audio amplifier IC is 6.5V.
