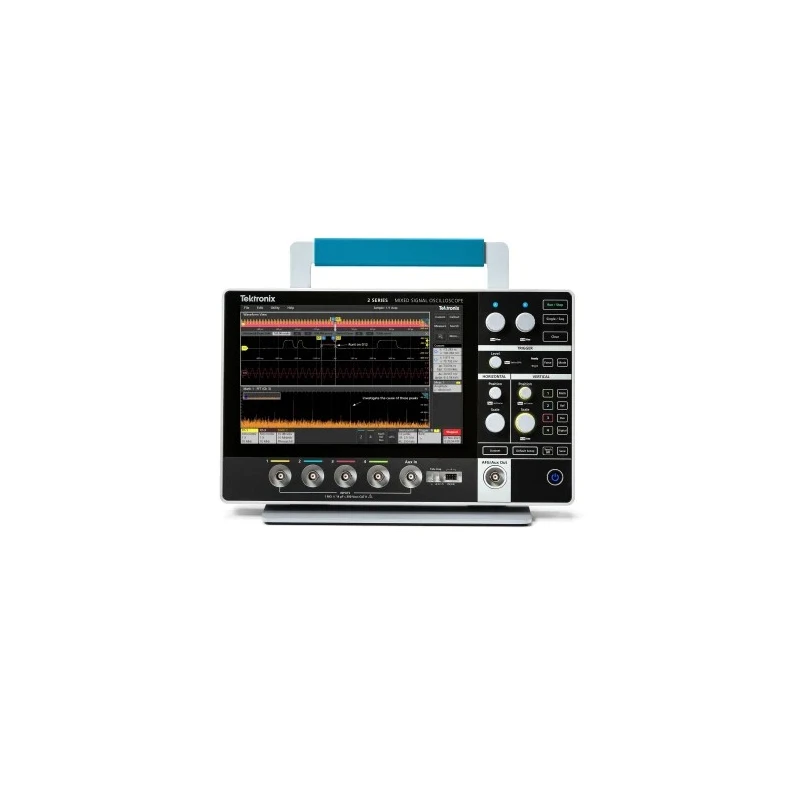

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope, 100 MHz Bandwidth, 20 Channels, Capacitive MSO24 2-BW-100
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Capacitive Touch Display |
| Brand | Tektronix |
| Height | 210mm |
| Model | MSO24 2-BW-100 |
| Depth | 40.4mm |
| Width | 344mm |
| Bandwidth | 100MHz |
| Series | 2 Series MSO |
| Screen Size | 10.1 in |
| Number Of Channels | 20 |
| Vertical Resolution | 1 bit Digital, 8 bit Analogue |
| Memory Depth | 128kpts |
| Rise Time | 800ps |
| Oscilloscope Type | Ultra Compact |
| Digital Channels | 16 |
| Standards/Approvals | ISO 9001 |
| Calibrated | RSCAL |
| Oscilloscope Form | Mixed Signal |
| Minimum Time Base | 2ns/div |
| Maximum Time Base | 1000s/div |
| Lightweight and Portable | Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs) |
| Award Winning Touchscreen UI | Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function |
| Compact | Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm |
| Battery Powered | Optional battery pack supports two hot-swappable batteries for hours of unplugged testing |
| Bench Space Saver | VESA mount compatible with many off-the shelf VESA accessories |
| Built-in VNC Server | View and control your oscilloscope from PC, Tablet or Phone |
| Optional Extras Includes | Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below) |
Key Features

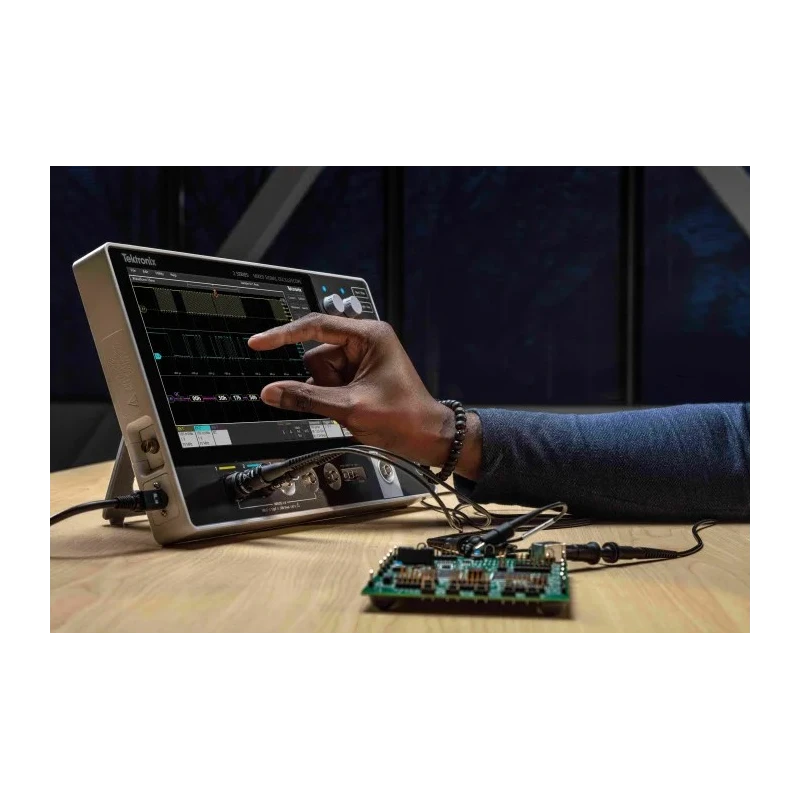

- Features a capacitive 10.1-inch touchscreen for intuitive operation.

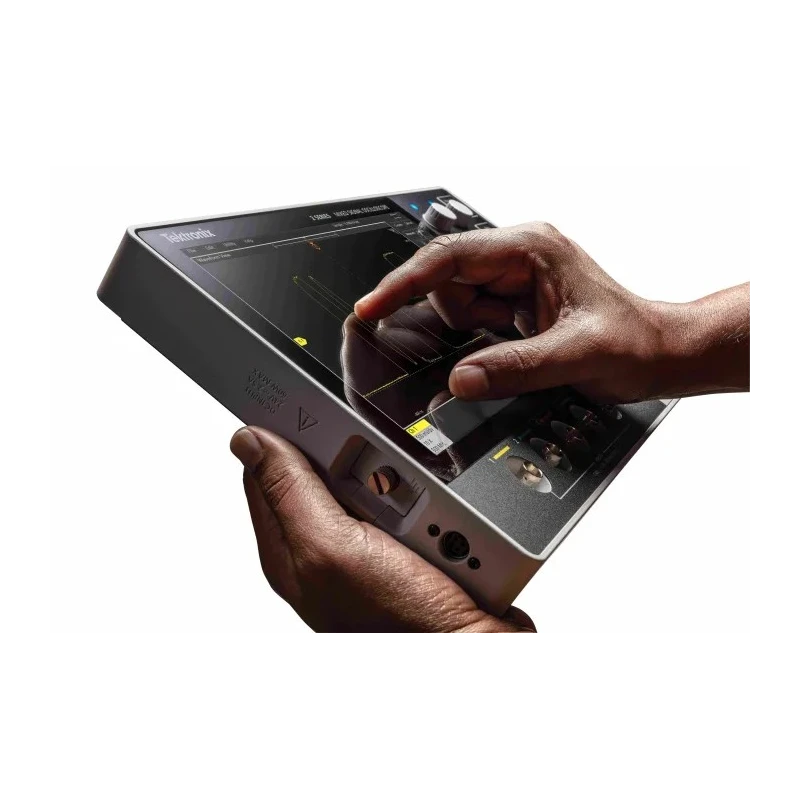

- Compact and lightweight design with optional battery pack for portable use.
- Supports up to 4 analogue channels with a memory depth of 128kpts.
- Equipped with advanced calibration (RSCAL) and ISO 9001 certification.
- Offers 2 ns/div minimum time base and up to 1000 s/div maximum time base.
- Includes built-in VNC server for remote control from PC or mobile devices.
- VESA mount compatible, saving bench space with mounting flexibility.
- Optional extras include probes, protective cases, and digital channel expansions.
Product Description
Tektronix MSO24 2-BW-100 is a highly versatile ultra compact mixed signal oscilloscope in the 2 Series MSO range. It features a maximum bandwidth of 100 MHz and provides 20 digital channels, ideal for advanced electronic debug and signal testing applications across industrial, laboratory, and educational sectors.
The instrument offers 4 analog channels, 2.5 GS/s sample rate, and 128kpts memory depth, combining performance with space-saving compactness. Its 10.1-inch capacitive touchscreen with an award-winning intuitive user interface simplifies complex measurements and controls. Calibration is ensured via RSCAL standards, backed by ISO 9001 quality certification.
With a slim profile (210 mm H x 344 mm W x 40.4 mm D) and light weight of 1.8 kg, the scope also supports an optional hot-swappable battery pack for field portability. VESA mounting compatibility enhances bench space management.
Additional functionality includes a built-in VNC server supporting remote operation from PCs, tablets, or smartphones, and a catalog of optional extras such as protective cases, battery chargers, extended probes, and a 16 digital channel MSO expansion.
Capacitive 10.1-inch touchscreen for enhanced usability. 4 analog channels and 20 digital channels for mixed signal analysis. RSCAL calibrated with ISO 9001 quality assurance. Portable design with optional battery support and VESA mount compatibility.
Built-in VNC server enables remote instrument access and control. Optional accessories including probes, batteries, and software expand functionality.

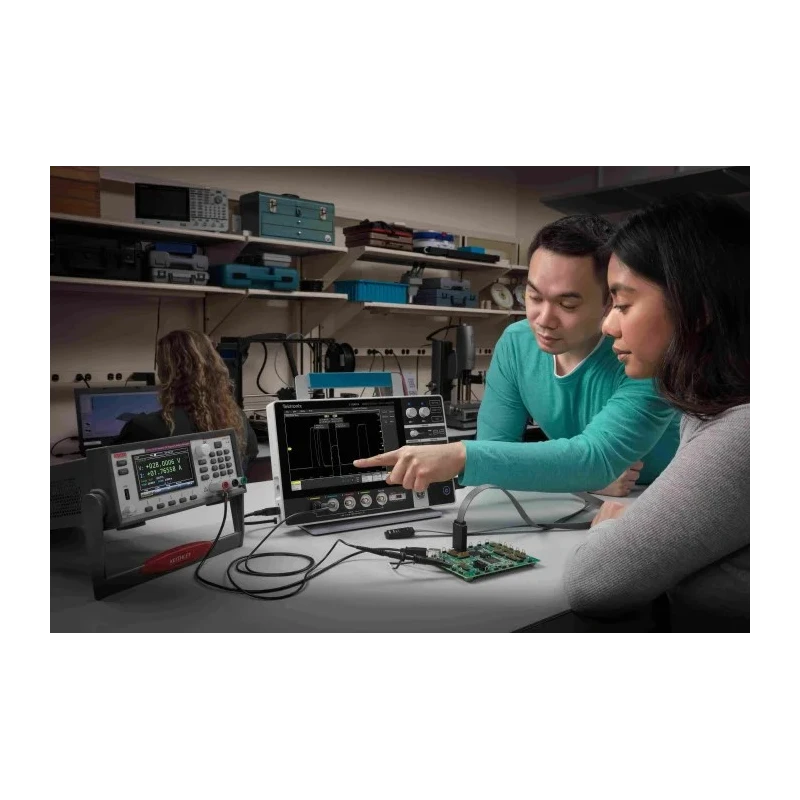

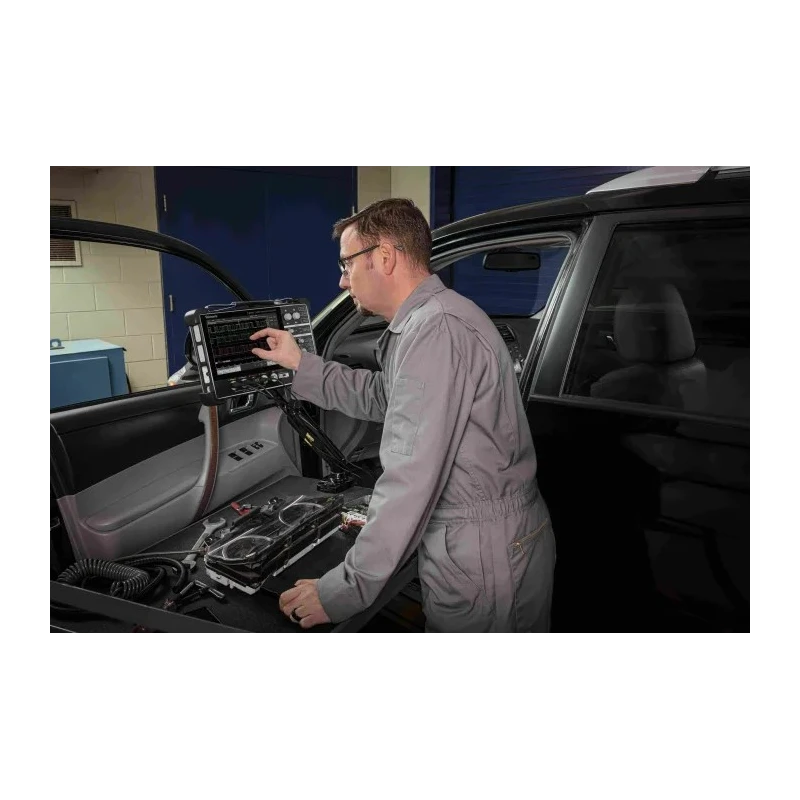

This oscilloscope is suitable for industrial manufacturing, laboratory research, electronic device testing, educational training, and field measurement applications. Its robust yet portable design offers flexibility for diverse test environments.
Explore EnvMart's range of Tektronix Oscilloscopes and test & measurement instruments to find complementary accessories and compatible probes that enhance the capability of this advanced mixed signal scope.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix MSO24 2-BW-100 has a maximum bandwidth of 100 MHz.
This oscilloscope supports 4 analog channels and 20 digital channels, making it suitable for mixed signal analysis.
It features a memory depth of 128kpts, allowing for detailed signal capture and analysis.
The dimensions of the oscilloscope are 210 mm in height, 344 mm in width, and 40.4 mm in depth.
The minimum time base is 2 ns/div and the maximum time base is 1000 s/div, providing a wide range for time measurements.
Yes, it includes a built-in VNC server that allows remote control from PCs, tablets, or smartphones.
It features a capacitive 10.1-inch touchscreen display, which provides an intuitive user interface for operation.

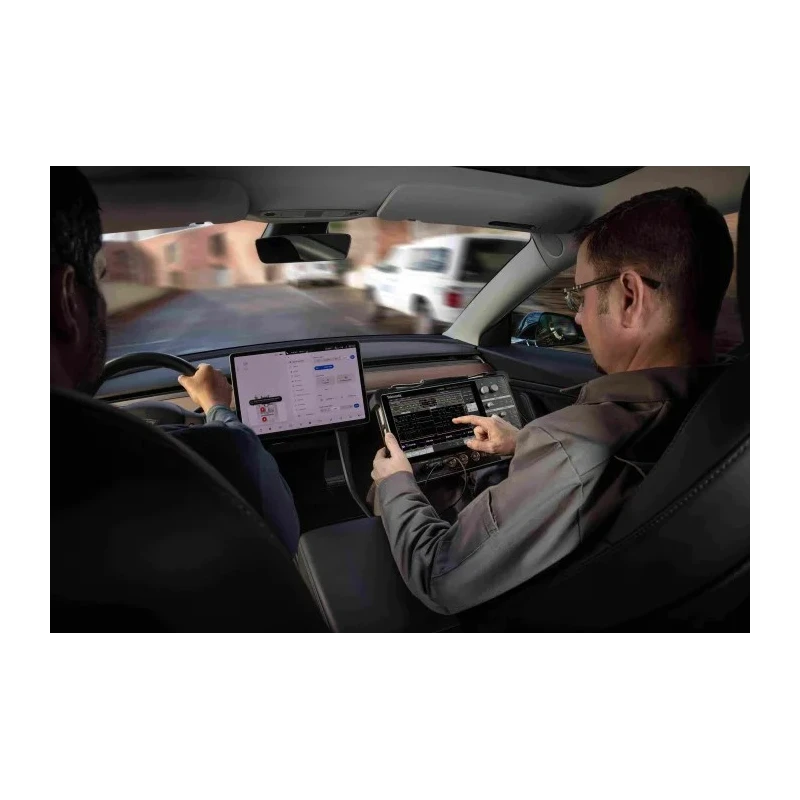

Yes, it is lightweight at 1.8 kg and supports an optional battery pack for field portability.
The rise time of this oscilloscope is 800 ps, which is suitable for capturing fast signal transitions.
This model is suitable for industrial manufacturing, laboratory research, electronic device testing, educational training, and field measurement applications.
