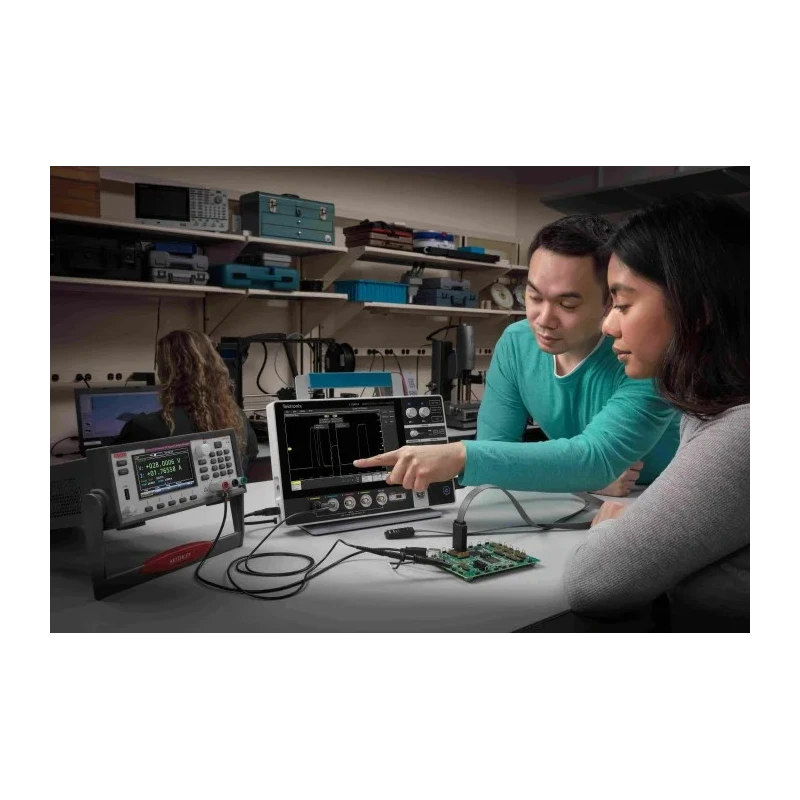

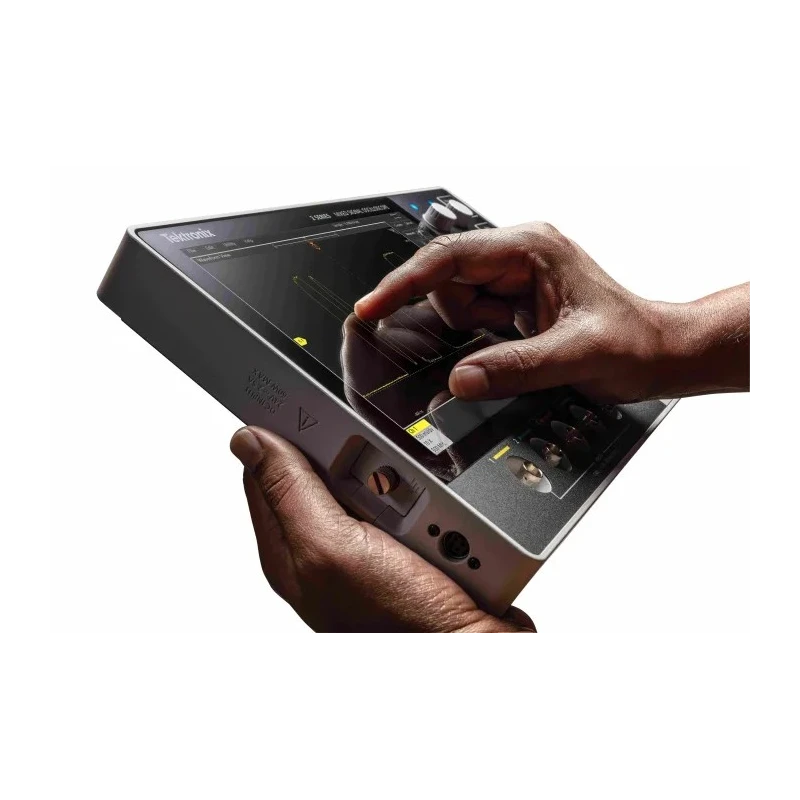

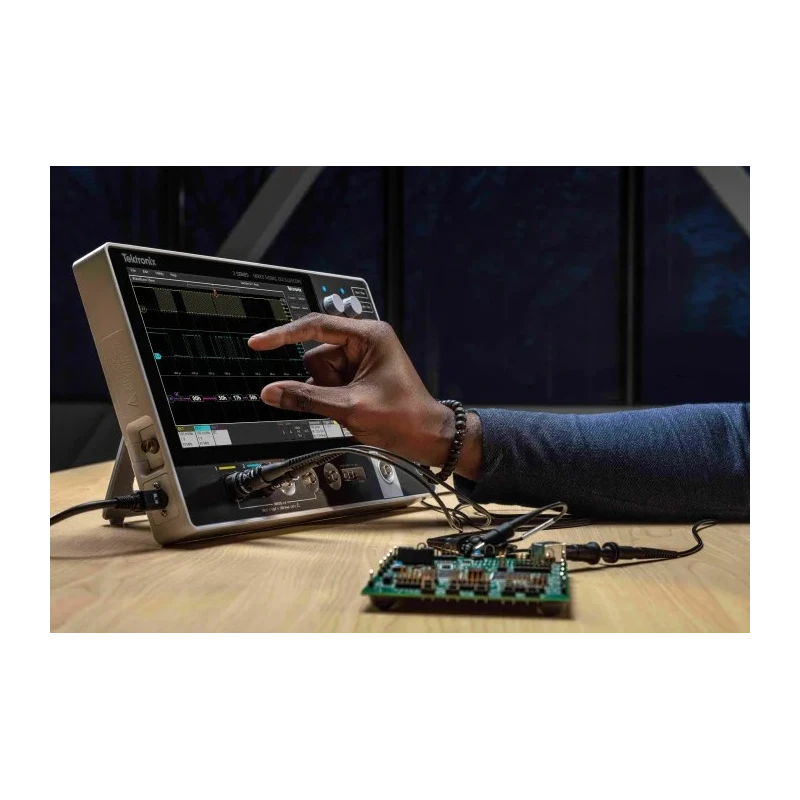

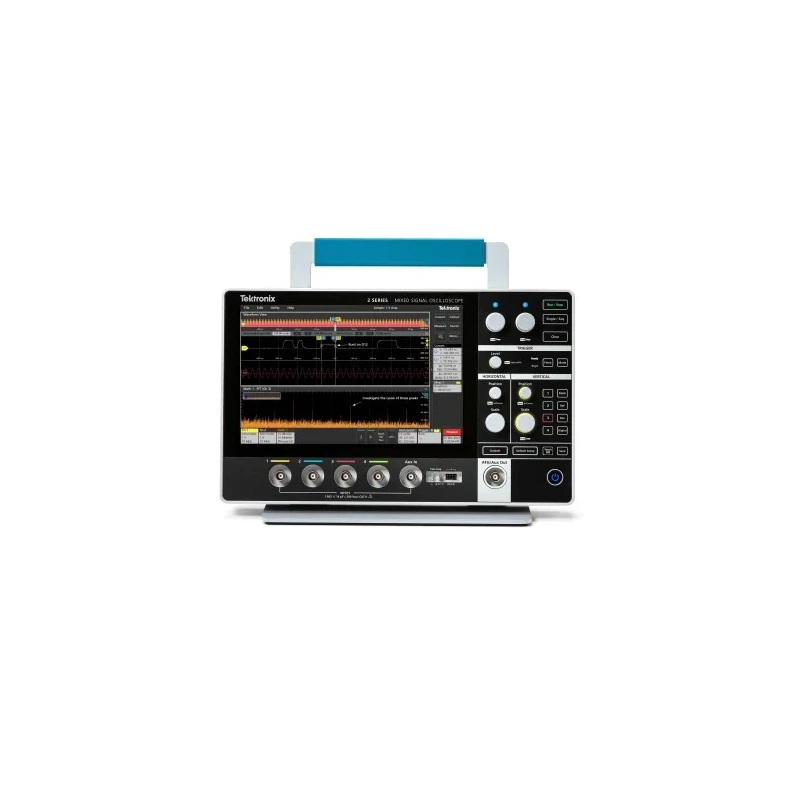

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope, 4 Channels, 70 MHz, 10.1-inch Capacitive MSO24 2-BW-70
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Capacitive Touch Display |
| Brand | Tektronix |
| Battery Life | 8h |
| Battery type | Lithium-ion |
| Height | 210mm |
| Model | MSO24 2-BW-70 |
| Depth | 40.4mm |
| Width | 344mm |
| Bandwidth | 70MHz |
| Series | 2 Series MSO |
| Screen Size | 10.1 in |
| Number Of Channels | 4 |
| Vertical Resolution | 1 (Digital) bit, 8 (Analogue) bit |
| Interface Type | CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB |
| Oscilloscope Type | Ultra Compact |
| Digital Channels | 16 |
| Standards/Approvals | CE, RoHS, UL |
| Safety Category Level | CAT II |
| Oscilloscope Form | Mixed Signal |
| Lightweight and Portable | Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs) |
| Award Winning Touchscreen UI | Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function |
| Compact | Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm |
| Battery Powered | Optional battery pack supports two hot-swappable batteries for hours of unplugged testing |
| Bench Space Saver | VESA mount compatible with many off-the shelf VESA accessories |
| Built-in VNC Server | View and control your oscilloscope from PC, Tablet or Phone |
| Optional Extras Includes | Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below) |
Key Features
- Features 4 analog channels with 70 MHz bandwidth for precise measurements.
- Includes a lithium-ion battery providing up to 8 hours of operation.
- Compact design with dimensions 344mm W x 210mm H x 40.4mm D, portable and lightweight at 1.8 kg.
- Supports multiple interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB.
- Equipped with an intuitive award-winning touchscreen user interface for easy operation.
- Offers mixed signal capability enabling flexible testing with both analog and digital channels.
- Compatible with optional accessories including battery packs, protective cases, and probes.
- Supplied with TPP0200 200 MHz, 10x probe for each channel and includes calibration certificate.
Product Description
Tektronix MSO24 2-BW-70 is a 2 Series MSO Ultra Compact Mixed Signal Oscilloscope designed for precise electronic debugging and testing applications. With 4 analog channels, a bandwidth of 70 MHz, and a 10.1-inch capacitive touchscreen display, this oscilloscope combines compact portability with high performance suitable for industrial, laboratory, and field use.
The oscilloscope features a highly intuitive, award-winning touch user interface that simplifies access to all key functions. Its mixed signal capability supports both analog and digital signal analysis, making it versatile for diverse electronic measurement needs.
It offers multiple interface options including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB to accommodate a wide range of communication protocols and testing scenarios. The lightweight instrument, weighing 1.8 kg and with compact dimensions of 344mm width, 210mm height, and 40.4mm depth, is highly portable. An optional battery pack extends operation up to 8 hours, suitable for field measurements.
The product ships with TPP0200 200 MHz, 10x probes for each channel, instrument stand, external power supply, and includes a calibration certificate compliant with ISO9001 and ISO17025 standards. Additional optional accessories include protective cases, battery chargers, 16 digital channel MSO expansions, advanced triggering options, and software utilities.
Features 4 analog channels with 70 MHz bandwidth for precise measurements. Includes a lithium-ion battery providing up to 8 hours of operation. Compact and lightweight design for easy portability and bench space savings.
Supports a wide range of communication interfaces including CAN, I2C, SPI, UART, and USB. Equipped with an intuitive capacitive touchscreen display for efficient operation. Ships with essential test probes, calibration certificate, and installation manuals.
Offers optional accessories for enhanced measurement capabilities and protection. Suitable for industrial, laboratory, manufacturing, and field test environments.
This Tektronix 2 Series MSO Oscilloscope is acclaimed for combining performance, compact size, and ease of use, making it an excellent choice for engineers and technicians requiring reliable mixed signal analysis tools. Explore our range of advanced Oscilloscopes and accessories at EnvMart to find solutions tailored to your precise electronic testing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix MSO24 2-BW-70 has a bandwidth of 70 MHz, allowing for precise measurements across its four analog channels.
This model features four analog channels, along with 16 digital channels for mixed signal analysis.
The oscilloscope measures 344 mm in width, 210 mm in height, and 40.4 mm in depth, weighing 1.8 kg without the battery pack.
It is equipped with a 10.1-inch capacitive touch display, providing an intuitive user interface for easy operation.
It supports multiple interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB, accommodating a wide range of testing scenarios.
It ships with TPP0200 200 MHz, 10x probes for each channel, an instrument stand, an external power supply, and a calibration certificate.
Yes, it can be powered by an optional battery pack that supports two hot-swappable batteries for extended unplugged testing.
The Tektronix MSO24 2-BW-70 complies with CE, RoHS, and UL standards, ensuring safety and regulatory compliance.

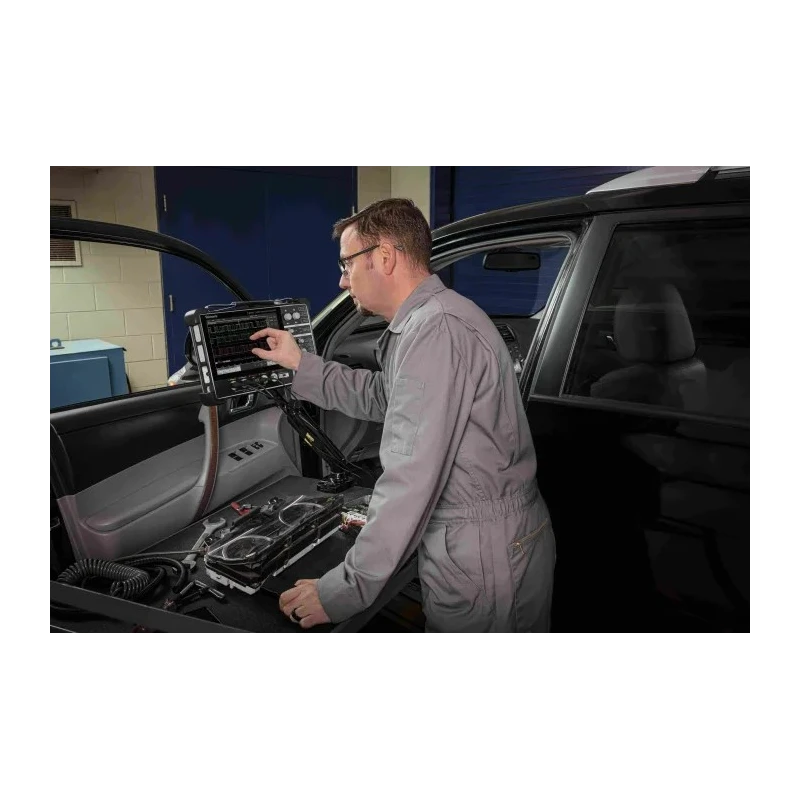

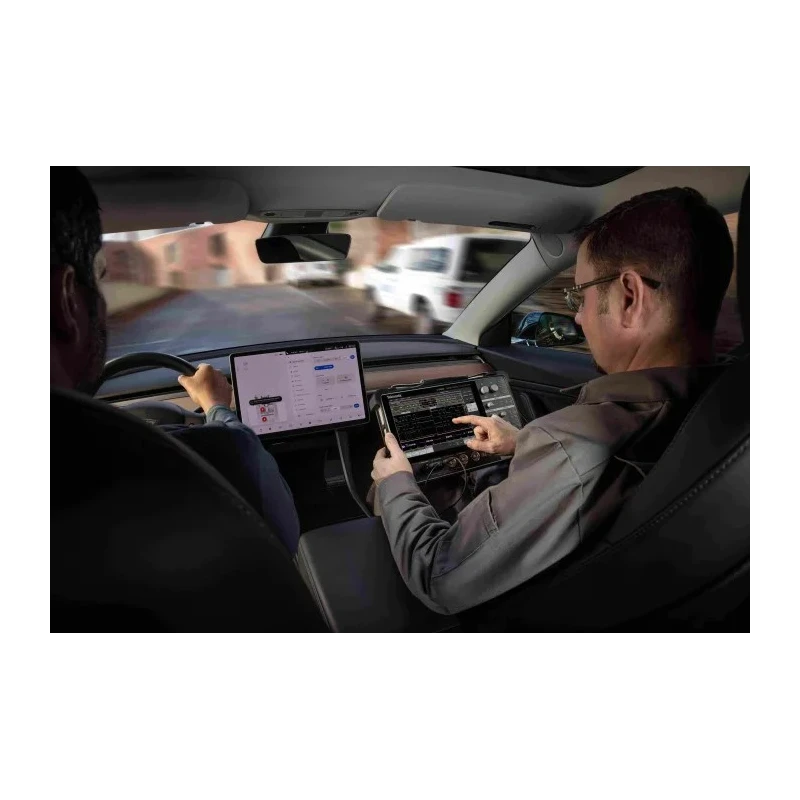

Yes, its lightweight design (1.8 kg) and battery operation make it suitable for field measurements and portable applications.
The vertical resolution is 1 bit for digital channels and 8 bits for analog channels, allowing for detailed signal analysis.
