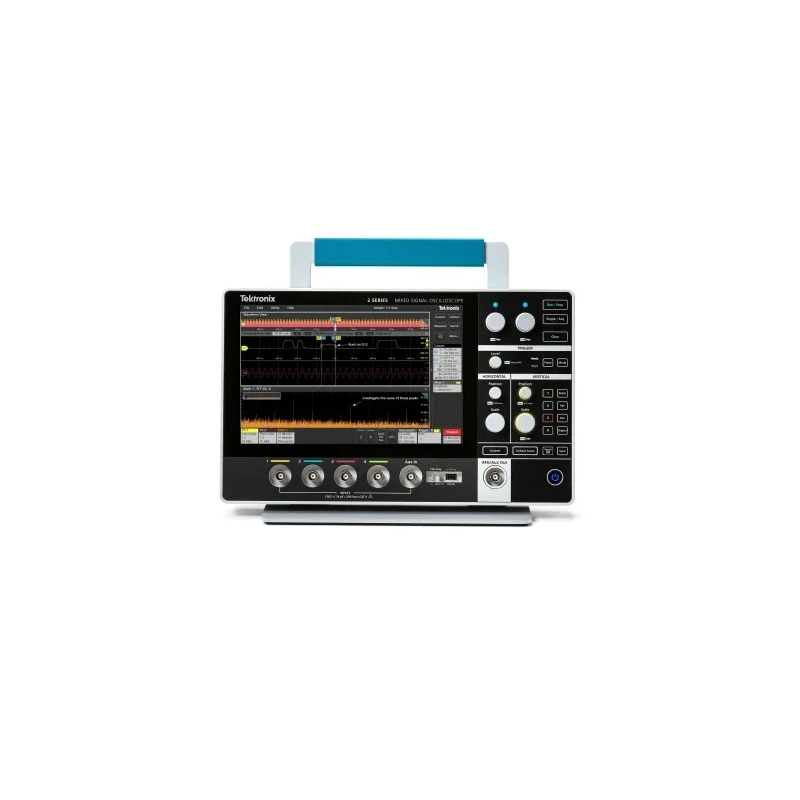

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 100 MHz Bandwidth 20 Channels MSO24 2-BW-100
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Capacitive Touch Display |
| Brand | Tektronix |
| Height | 210mm |
| Model | MSO24 2-BW-100 |
| Depth | 40.4mm |
| Width | 344mm |
| Bandwidth | 100MHz |
| Series | 2 Series MSO |
| Screen Size | 10.1 in |
| Number Of Channels | 20 |
| Vertical Resolution | 1 bit Digital, 8 bit Analogue |
| Memory Depth | 128kpts |
| Rise Time | 800ps |
| Oscilloscope Type | Ultra Compact |
| Digital Channels | 16 |
| Standards/Approvals | ISO 9001 |
| Calibrated | UKAS |
| Oscilloscope Form | Mixed Signal |
| Minimum Time Base | 2ns/div |
| Maximum Time Base | 1000s/div |
| Lightweight and Portable | Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs) |
| Award Winning Touchscreen UI | Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function |
| Compact | Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm |
| Battery Powered | Optional battery pack supports two hot-swappable batteries for hours of unplugged testing |
| Bench Space Saver | VESA mount compatible with many off-the shelf VESA accessories |
| Built-in VNC Server | View and control your oscilloscope from PC, Tablet or Phone |
| Optional Extras Includes | Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below) |
Key Features
- Ultra compact form factor with dimensions 344mm(W) x 210mm(H) x 40.4mm(D).
- 20 total channels including 4 analog and 16 digital channels for mixed signal analysis.
- 100 MHz bandwidth and 2.5 GS/s sample rate ensure accurate high-frequency signal capture.
- 128kpts memory depth and 1 bit digital, 8 bit analog vertical resolution for detailed measurements.

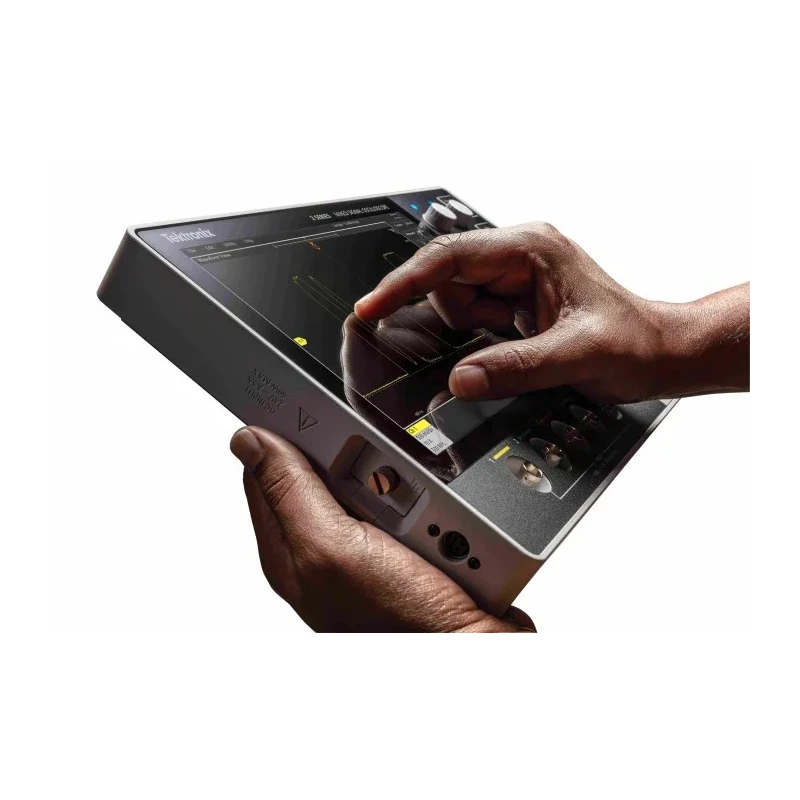

- Equipped with intuitive capacitive touch display and user interface optimized for touch operation.
- Optional battery pack supports hot-swappable batteries, enabling extended unplugged field use.
- VESA mount compatible to save bench space and expand accessory options.
- Includes TPP0200 200 MHz, 10x probes, instrument stand, external power supply, manuals, calibration certificate, and one-year warranty.
Product Description
Tektronix MSO24 2-BW-100 is an ultra compact 2 Series MSO mixed signal oscilloscope delivering a 100 MHz bandwidth and 20 channels total (4 analog and 16 digital). It features a 10.1-inch capacitive touchscreen display with intuitive user interface designed for easy touch operation, making it suitable for electronics debug and test in industrial, laboratory, manufacturing, HVAC, and field environments.
With dimensions 344 mm wide, 210 mm high, and 40.4 mm deep, this oscilloscope provides a space-saving design compatible with VESA mounts for bench space optimization. The 2 Series MSO offers a sampling rate of 2.5 GS/s, 128kpts memory depth, and vertical resolution of 1 bit digital and 8 bit analog for precise waveform capture and analysis. Its minimum time base is 2 ns/div and maximum time base is 1000 s/div, allowing flexible signal timing investigations.
An optional battery pack allows operation with hot-swappable batteries for extended portable use, making it ideal for field testing. It comes calibrated with UKAS traceability and adheres to ISO 9001 quality standards. The package includes 200 MHz, 10x probes (one per channel), an instrument stand, external power supply, embedded help system, installation and safety manuals in multiple languages, and a calibration certificate ensuring metrology compliance.
Additional benefits include a built-in VNC server enabling remote viewing and control from PCs, tablets, or phones, and a highly capable platform supporting optional accessories such as advanced triggers, protocol decoders, and digital pattern generators. Its lightweight design of approximately 1.8 kg (without battery) facilitates use in laboratories, electronics repair, R&D, and education.
Ultra compact form factor with dimensions 344 mm width, 210 mm height, and 40.4 mm depth. 100 MHz bandwidth with 20 channels including 4 analog and 16 digital inputs. Capacitive 10.1-inch touchscreen display with a user-friendly interface.
Optional battery pack supports two hot-swappable batteries for portable use. Equipped with UKAS calibration certificate and ISO 9001 quality standards. Includes probes, instrument stand, power supply, manuals, and safety documentation.
Supports VESA mount and built-in VNC server for remote control capability. Ideal for industrial, laboratory, and field applications needing mixed signal analysis. Explore more in the Oscilloscopes category at EnvMart for advanced test and measurement instrumentation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix MSO24 2-BW-100 features a bandwidth of 100 MHz, suitable for a variety of signal analysis tasks.
This model has a total of 20 channels, which includes 4 analog channels and 16 digital channels for mixed signal analysis.
The oscilloscope has dimensions of 344 mm in width, 210 mm in height, and 40.4 mm in depth, making it ultra compact.
It features a 10.1-inch capacitive touchscreen display, designed for intuitive user interaction.
The memory depth is 128kpts, which allows for detailed waveform capture and analysis.
Yes, it has an optional battery pack that supports two hot-swappable batteries for extended unplugged use.
The vertical resolution is 1 bit for digital signals and 8 bits for analog signals, providing detailed measurements.
The minimum time base is 2 ns/div and the maximum time base is 1000 s/div, allowing for flexible signal timing investigations.
Yes, it is calibrated with UKAS traceability and adheres to ISO 9001 quality standards.
The package includes 200 MHz, 10x probes, an instrument stand, external power supply, manuals, and a calibration certificate.
