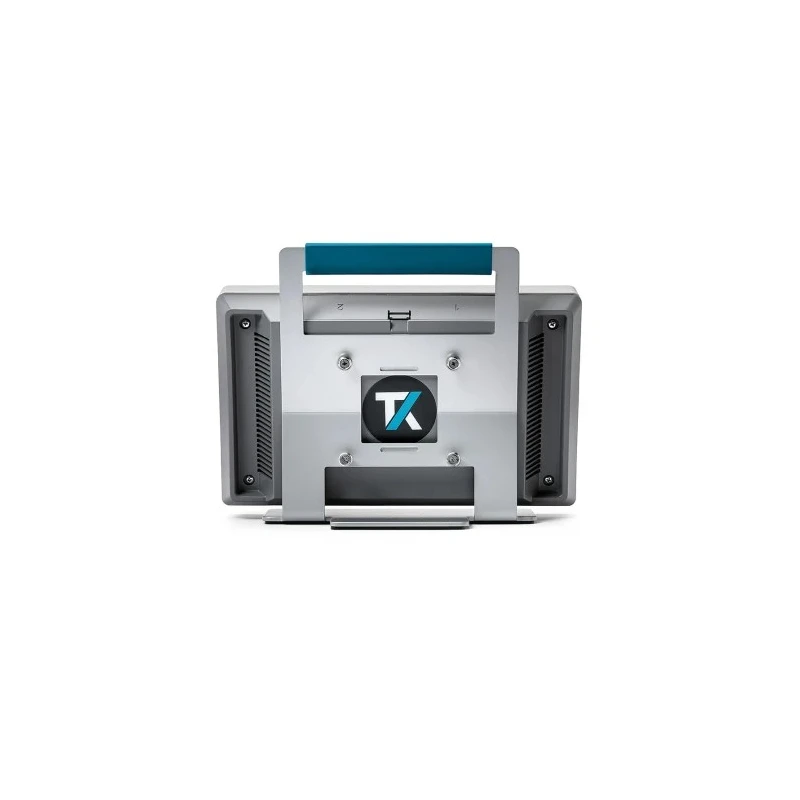

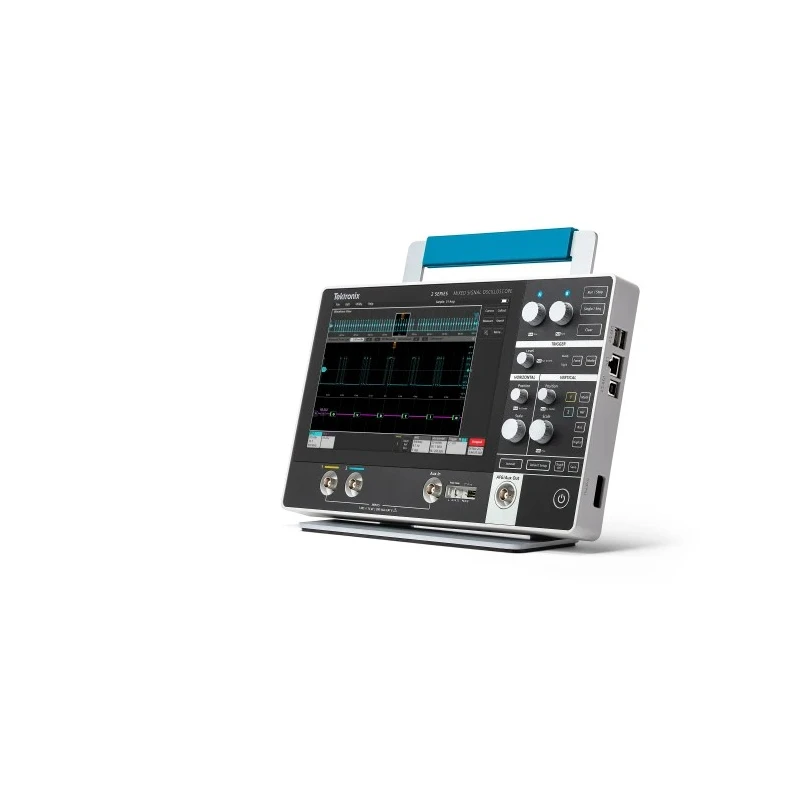

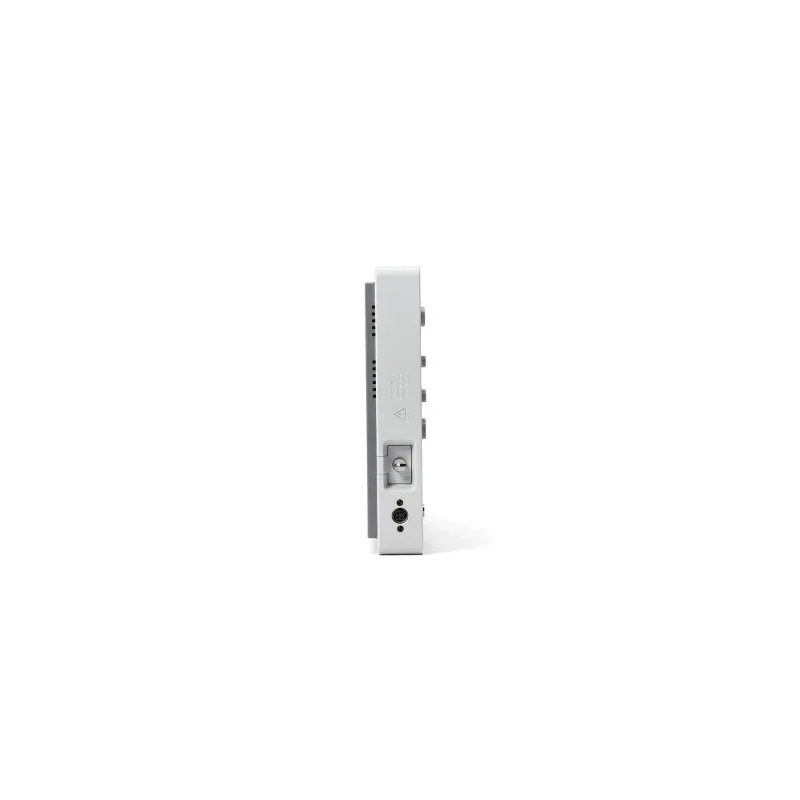

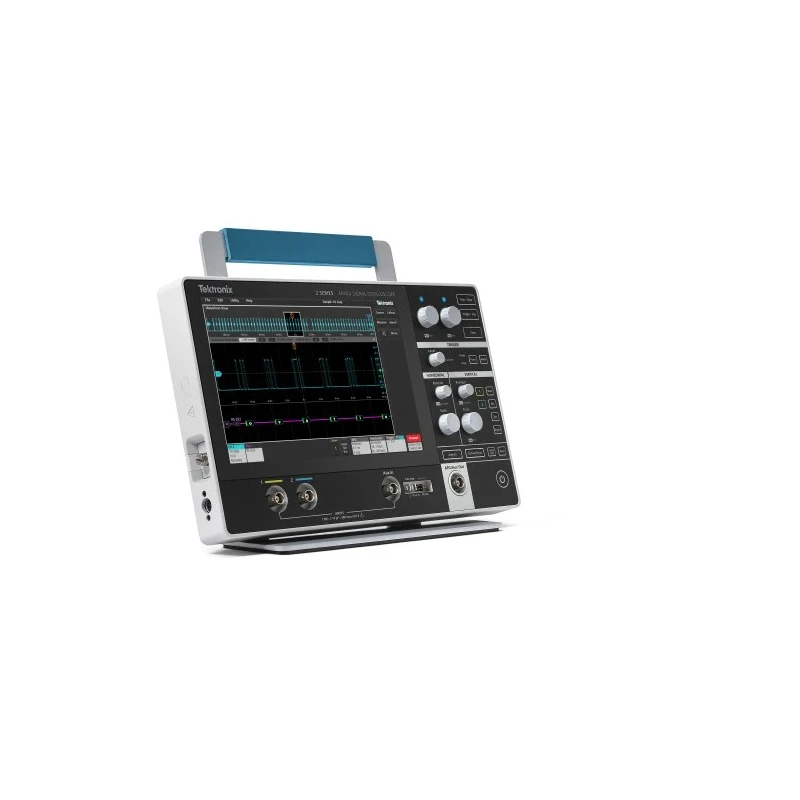

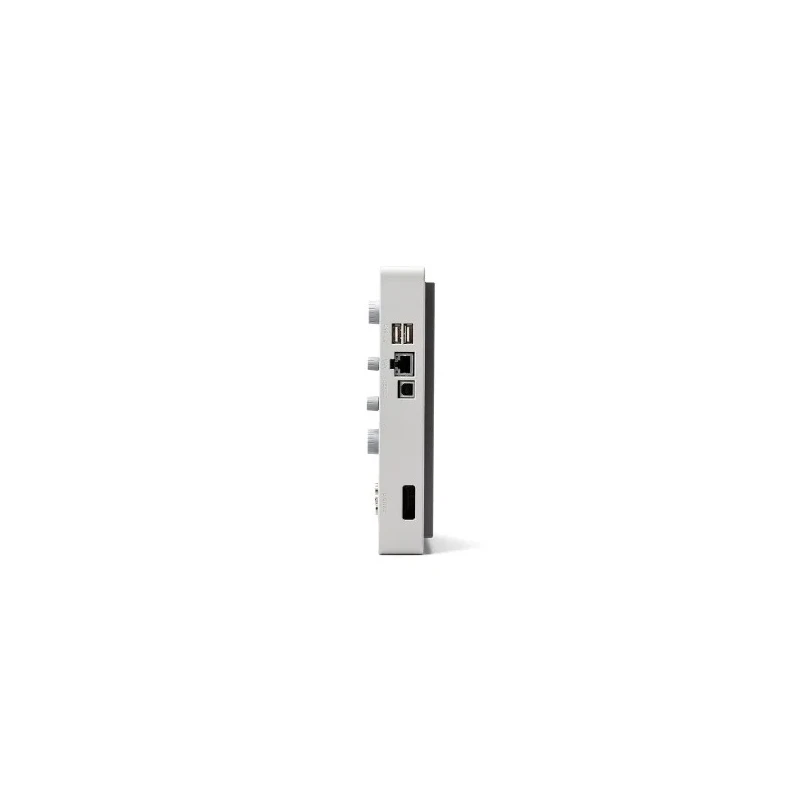

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 100 MHz Bandwidth 2 Channels Lithium-ion MSO22 2-BW-100
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Capacitive Touch Display |
| Brand | Tektronix |
| Battery Life | 8h |
| Battery type | Lithium-ion |
| Height | 210mm |
| Model | MSO22 2-BW-100 |
| Depth | 40.4mm |
| Width | 344mm |
| Bandwidth | 100MHz |
| Series | 2 Series MSO |
| Screen Size | 10.1 in |
| Number Of Channels | 2 |
| Vertical Resolution | 1 (Digital) bit, 8 (Analogue) bit |
| Interface Type | CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB |
| Oscilloscope Type | Ultra Compact |
| Digital Channels | 16 |
| Standards/Approvals | RoHS, CE, UL |
| Safety Category Level | CAT II |
| Calibrated | UKAS |
| Oscilloscope Form | Mixed Signal |
| Lightweight and Portable | Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs) |
| Award Winning Touchscreen UI | Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function |
| Compact | Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm |

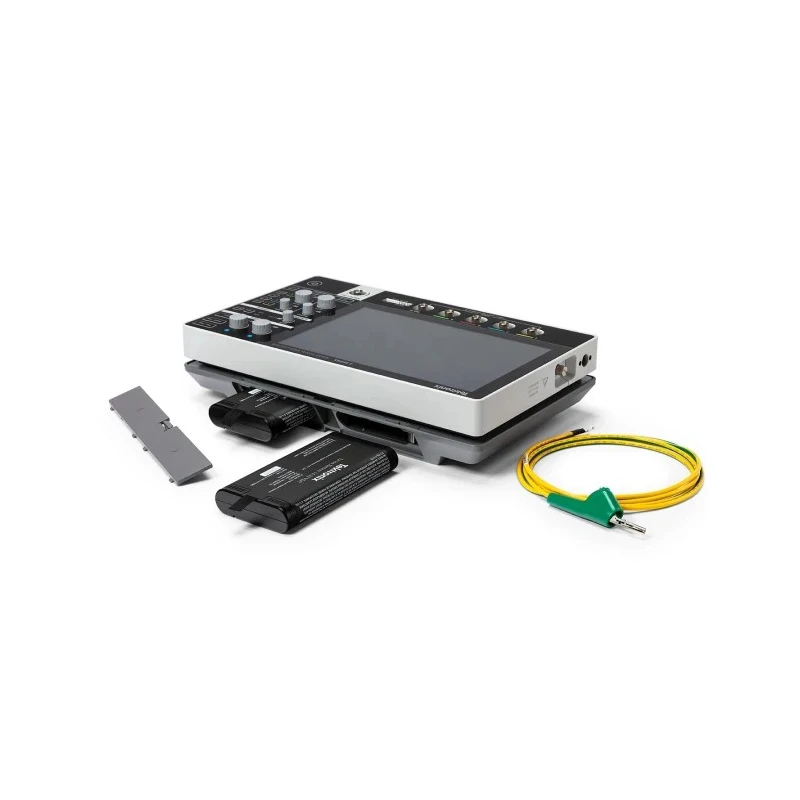

| Battery Powered | Optional battery pack supports two hot-swappable batteries for hours of unplugged testing |

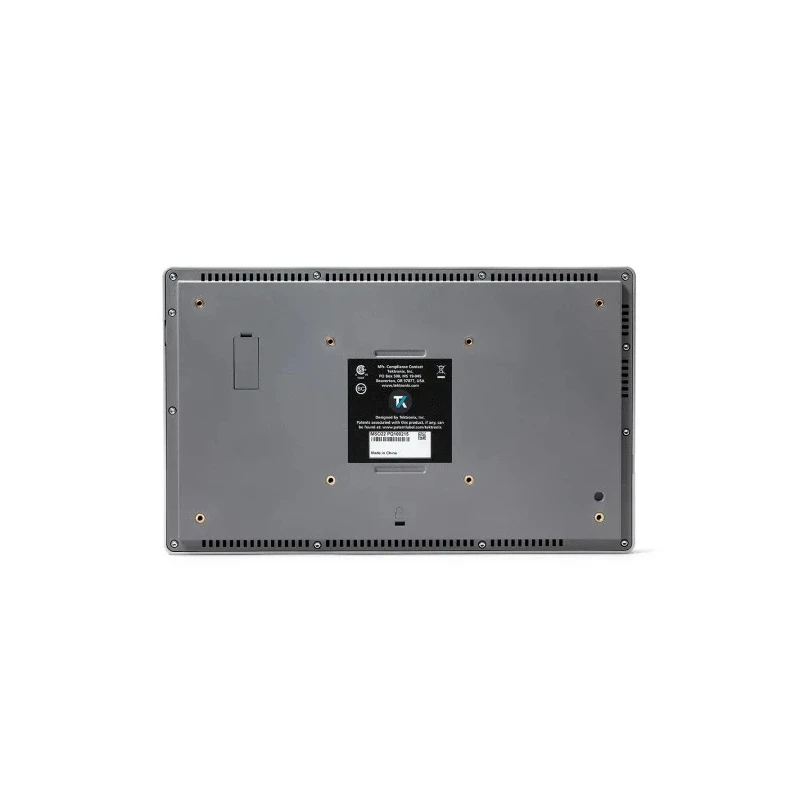

| Bench Space Saver | VESA mount compatible with many off-the shelf VESA accessories |
| Built-in VNC Server | View and control your oscilloscope from PC, Tablet or Phone |
| Optional Extras Includes | Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 Mhz Afg, 4-bit pattern generator, Software (see accessories below) |
Key Features
- Compact and lightweight design for easy portability.
- Features a 10.1-inch capacitive touchscreen display with intuitive user interface.
- Battery life of up to 8 hours supports field use.
- Supports multiple interfaces including CAN, I2C, USB, and SPI for flexible connectivity.
- Calibrated with UKAS traceability ensuring measurement accuracy.
- Incorporates 1 digital bit and 8 analogue bits vertical resolution for detailed signal analysis.
- Includes advanced protocol decode options and optional digital channels.
- VESA mount compatible to save bench space.
Product Description
Tektronix MSO22 2-BW-100 is a 2 Series MSO Ultra Compact Mixed Signal Oscilloscope featuring 100 MHz bandwidth and 2 analog channels. It is powered by a lithium-ion battery providing up to 8 hours of operation, designed for both bench and field use in electronic debug and test applications.
This oscilloscope includes a vibrant 10.1-inch capacitive touchscreen with a user-friendly interface for effortless operation. It supports multiple interface types such as CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB, enabling versatile connectivity with various devices and systems.
Calibrated with UKAS traceability and adhering to RoHS, CE, and UL standards, it ensures highly accurate and reliable measurements in industrial, laboratory, manufacturing, and HVAC fields. The instrument is lightweight and compact, with physical dimensions of 210mm height, 344mm width, and 40.4mm depth (78mm with battery pack), and weight ranging from 1.8 kg standalone to 3.6 kg with battery packs.
The vertical resolution offers 1 digital bit and 8 analogue bits for detailed waveform analysis. The oscilloscope supports an optional battery pack with hot-swappable batteries, providing continuous testing capability without interruption. Additional features include advanced triggers, protocol decode, a 4-bit digital pattern generator, DVM, frequency counter, and optional 16 digital channels MSO functionality.
It ships with TPP0200 200 MHz 10x probes (one per channel), instrument stand, external power supply, embedded help, installation and safety manuals in multiple languages, calibration certificate, and a one-year warranty covering parts and labor.
Designed for professionals requiring a reliable, portable oscilloscope, it is ideal for electronics, automotive diagnostics, telecommunications, and various industrial measurement applications. The VESA compatibility enables easy mounting and efficient use of workspace.
Compact and portable for ease of use in various environments. High-resolution capacitive touchscreen for intuitive interaction. Long battery life with optional hot-swappable battery packs. Multiple interfaces and advanced protocol support for diverse applications.
Calibrated with UKAS traceability for ensured accuracy. Versatile accessories and probe options included. Supports a wide range of industrial and laboratory applications. Explore more Oscilloscopes and testing instruments on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a bandwidth of 100 MHz, suitable for a variety of signal analysis tasks.
It is equipped with 2 analog channels, allowing for mixed signal analysis.
The dimensions are 210 mm in height, 344 mm in width, and 40.4 mm in depth (78 mm with battery pack). It weighs 1.8 kg standalone and 3.6 kg with battery packs.
Yes, it is calibrated with UKAS traceability, ensuring measurement accuracy.
It ships with TPP0200 200 MHz 10x probes (one per channel), an instrument stand, an external power supply, and a calibration certificate.
With the battery pack, the dimensions are 210 mm in height, 344 mm in width, and 78 mm in depth.
It adheres to RoHS, CE, and UL standards, ensuring compliance with safety regulations.
Yes, it supports an optional battery pack with hot-swappable batteries, allowing for continuous testing without interruption.
