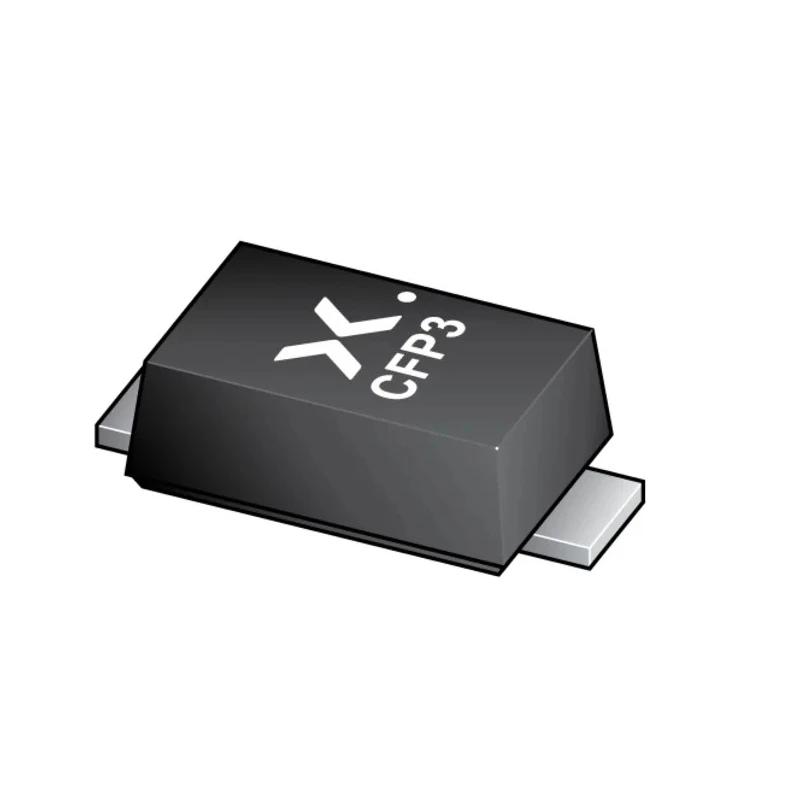

Nexperia Schottky Barrier Rectifier Diode 100 V, 2 A, Surface Mount CFP3 Package
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | CFP3 |
| Mount Type | Surface |
| Series | PMEG100T20ELR |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 800mV |
Key Features
- Encapsulated in CFP3 (SOD123W) plastic package suitable for surface mounting.
- Maximum continuous forward current of 2 amperes and peak reverse voltage of 100 volts.
- Low forward voltage drop of 800 mV ensuring energy efficiency.
- Operating temperature range from -55°C to 175°C for wide environmental tolerance.
- High surge current capability with peak non-repetitive forward surge current of 50 A.
- Complies with RoHS standards and automotive grade AEC-Q101 certification.
- Offers low leakage current, low charge storage (Qrr), and high power capability due to clip-bonding technology.
- Ideal for use in power supply, rectifier, and switching applications.
Product Description
Nexperia PMEG100T20ELRX Schottky barrier rectifier diode is designed for efficient power rectification in various electronic circuits. It features a low forward voltage of 800 mV and supports a maximum continuous forward current of 2 A, withstanding peak reverse voltages up to 100 V. The device is packaged in a CFP3 (SOD123W) surface-mount plastic package, providing a compact footprint for high-density PCB designs.
This diode maintains reliable operation across a broad temperature range from -55°C to 175°C and supports high surge currents up to 50 A, making it suitable for demanding industrial and automotive environments. It complies with RoHS directives and the automotive standard AEC-Q101, underscoring its quality and environmental compliance.
The diode's clip-bonding technology enhances power handling capability while minimizing leakage and reverse recovery charge, improving overall circuit efficiency and performance. Encapsulated in CFP3 surface-mount SMD plastic package.
Maximum continuous forward current of 2 A and peak reverse voltage of 100 V. Low forward voltage of 800 mV minimizes power loss. Operating temperature from -55°C to 175°C ensures stable performance. Peak non-repetitive forward surge current of 50 A provides high transient tolerance.
RoHS compliant and meets the automotive AEC-Q101 standard. Low leakage current and low Qrr improve switching efficiency. Ideal for industrial, automotive, power supply, and electronic equipment applications. Discover a range of semiconductor components at EnvMart, your reliable source for high-quality electronic parts for industrial and automotive use.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 2 A.
The peak reverse voltage rating for this model is 100 V.
It has a low forward voltage drop of 800 mV.
The operating temperature range is from -55°C to 175°C.
This diode can withstand a peak non-repetitive forward surge current of 50 A.
It is packaged in a CFP3 (SOD123W) surface-mount plastic package.
This model complies with the automotive standard AEC-Q101.
Yes, it complies with RoHS standards.
The diode configuration is single.
The diode utilizes clip-bonding technology to enhance power handling capability.
It is ideal for use in power supply, rectifier, and switching applications.
The country of origin for this diode is India.
