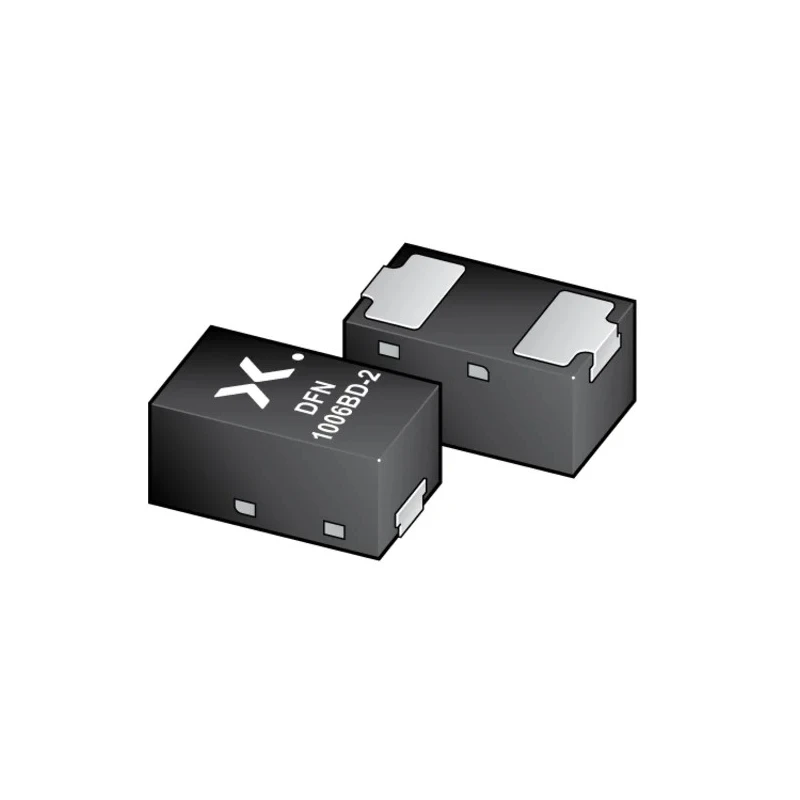

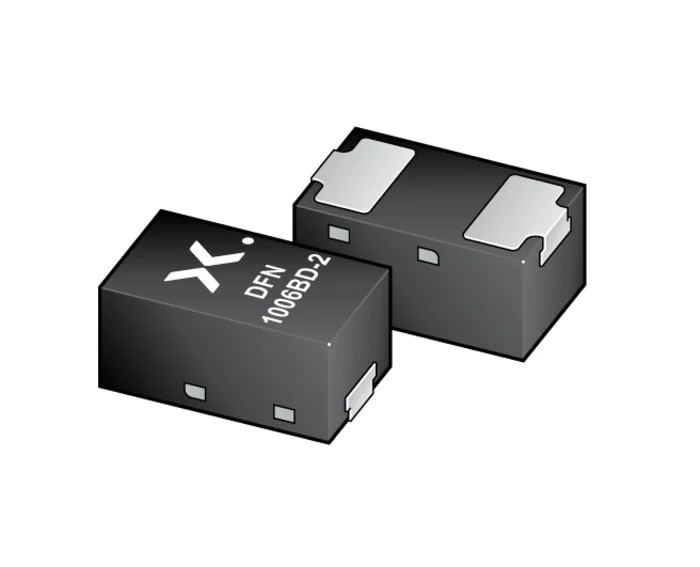

Nexperia 1.75 V General Purpose Zener Diode Single 365 mW 2 % Surface Mount 2-Pin DFN1006BD-2 BZX884S-C75-QYL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C75-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 75V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 500Ω |
| Typical Voltage Temperature Coefficient | 73.4mV/K |
Key Features
- This diode is designed for automatic surface mounting with a small 2-pin DFN1006BD-2 package.
- It provides a nominal Zener voltage of 1.75 V with a 2% tolerance for precision voltage regulation.
- The maximum power dissipation is 365 milliwatts, suitable for low-power voltage stabilization.
- Tested at 5 mA test current, it offers a maximum Zener impedance of 500 ohms.
- The diode supports a wide operating temperature range from -55°C to 150°C, certified for automotive applications under AEC-Q101.
- It features a maximum reverse leakage current of 50 nanoamperes and a nominal voltage temperature coefficient of 73.4 mV/K.
- The compact height is 0.47 mm and length is 1 mm, ideal for space-constrained electronics.
- Compliant with RoHS and automotive standards, it is suitable for robust manufacturing and industrial use cases.
Product Description
Nexperia BZX884S-C75-QYL is a general purpose 1.75 V Zener diode in an ultra-small leadless surface mount DFN1006BD-2 plastic package designed for reliable voltage regulation in electronic circuits.
This single Zener diode offers a nominal Zener voltage of 1.75 V with tight ±2% voltage tolerance, ensuring precise voltage stabilization under various operating conditions. Its maximum power dissipation of 365 mW makes it suitable for low-power applications requiring consistent voltage reference.
The device features a maximum Zener impedance of 500 ohms and a test current of 5 mA, providing stable performance and low reverse leakage current of 50 nA. It operates reliably across a wide temperature span from −55°C to 150°C, making it compliant with automotive-grade AEC-Q101 standards and RoHS regulations.
The diode is housed in a compact DFN1006BD-2 surface mount package featuring side-wettable flanks which ease automated assembly with high efficiency and reliability. Its tiny dimensions (0.47 mm height and 1 mm length) suit dense PCB layouts in industrial, automotive, consumer electronics, and power management applications.
This Zener diode ensures stable voltage regulation in electronic circuitry. Compact leadless surface mount DFN1006BD-2 package enhances automated assembly. Wide operational temperature range supports automotive and industrial use.
Low reverse leakage current enhances device reliability and efficiency. Compliance with RoHS and AEC-Q101 certifications. Typical voltage temperature coefficient of 73.4 mV/K aids temperature stability. Single element per chip with 2-pin configuration for space efficiency.
Nominal voltage range part of the BZX884S-Q series.
This diode is favored in applications involving power regulation, automotive electronics, signal conditioning, and voltage reference circuits. Its small form-factor and strong specification adherence make it ideal for modern electronics requiring compact and reliable voltage stabilization components.
Explore more high-quality semiconductor components and Zener Diodes at EnvMart for industrial and automotive electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 1.75 V with a tolerance of ±2%.
It has a maximum power dissipation of 365 mW, making it suitable for low-power applications.
The maximum reverse leakage current is 50 nanoamperes (nA).
The DFN1006BD-2 package has a height of 0.47 mm and a length of 1 mm.
This model operates reliably across a temperature range from -55°C to 150°C.
The maximum Zener impedance at a test current of 5 mA is 500 ohms.
It complies with RoHS and AEC-Q101 standards, making it suitable for automotive applications.
The typical voltage temperature coefficient is 73.4 mV/K, aiding in temperature stability.
There is a single element per chip in this Zener diode configuration.
This model supports surface mounting, designed for automated assembly.
It is typically used in applications involving power regulation, automotive electronics, and voltage reference circuits.
