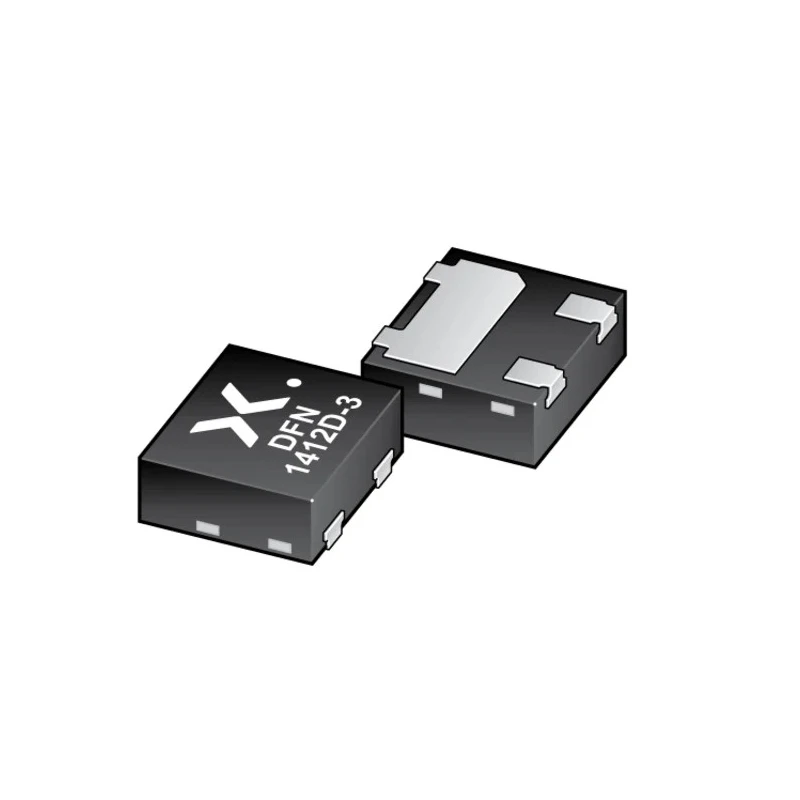

Nexperia Bipolar Transistor PNP, Maximum DC Collector Current -500 mA, Collector Emitter Voltage -45 V, 3-Pin BC807-25QC-QZ

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Bipolar Transistor PNP, Maximum DC Collector Current -500 mA, Collector Emitter Voltage -45 V, 3-Pin BC807-25QC-QZ

Name: Nexperia Bipolar Transistor PNP, Maximum DC Collector Current -500 mA, Collector Emitter Voltage -45 V, 3-Pin BC807-25QC-QZ
Brand: Nexperia
SKU: 296686
Price: 0.08 USD
Availability: InStock



Category Bipolar Transistor Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Model	BC807-25QC-QZ
Mount Type	Surface
Series	BC807QB-Q
Maximum Operating Temperature	150°C
Package Type	DFN1412D-3
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	-45V
Minimum DC Current Gain hFE	160
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	-5V
Maximum Collector Base Voltage VCBO	-50V
Automotive Standard	AEC-Q101
Maximum DC Collector Current Idc	-500mA
Transistor Configuration	PNP

Key Features

The transistor has a maximum DC collector current of -500 mA.
Maximum collector emitter voltage is rated at -45 V.
It is designed with a 3-pin DFN1412D-3 surface mount package for efficient PCB space usage.
Suitable for automotive applications with AEC-Q101 qualification.
Operational temperature range from -55°C to 150°C allows use in harsh environments.
The transistor features high gain with a minimum current gain (hFE) of 160.
Smaller footprint and low package height of 0.5 mm optimize design compactness.
Side-wettable flanks enable effective Automatic Optical Inspection (AOI) during manufacturing.

Product Description

The Nexperia BC807-25QC-QZ is a PNP bipolar transistor optimized for general-purpose switching and amplification tasks in industrial, automotive, and electronic circuits. Packaged in an ultra-small 3-pin DFN1412D-3 surface-mount device (also known as SOT8009), it offers excellent power dissipation and current handling within a compact footprint.

This transistor supports a maximum DC collector current of -500 mA and a maximum collector emitter voltage of -45 V, making it suitable for low to medium power applications. Its operational temperature range spans from -55°C to 150°C, enabling reliable performance in demanding environments.

The design includes side-wettable flanks to facilitate automated optical inspection (AOI) in high-volume manufacturing, improving solder quality verification. Its low package profile of 0.5 mm and small surface area help reduce board space and weight.

Validated to meet AEC-Q101 automotive standards and RoHS compliance, the BC807-25QC-QZ is ideal for automotive electronics, industrial controls, and consumer device circuits that require robust, dependable transistor switching or amplification.

The transistor supports high current with low saturation voltage for efficient operation. Surface mount device format optimizes PCB layout and manufacturing efficiency. Multiple current gain options allow design flexibility with hFE minimum of 160.

Compact size is suitable for space-constrained electronic assemblies. Qualified for automotive use, assuring high reliability and quality. Check EnvMart categories for more Bipolar Transistors suitable for various industrial, automotive, and electronic applications.
