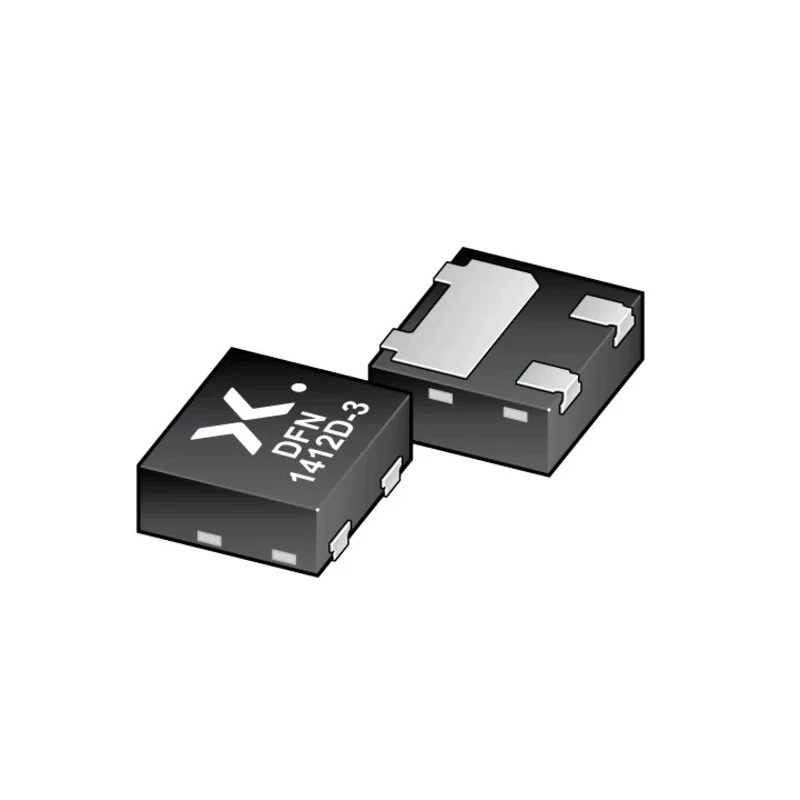

Nexperia Bipolar Transistor PNP 3-Pin DFN1412D-3, -500 mA, -45 V, Surface Mount BC807-16QC-QZ

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Bipolar Transistor PNP 3-Pin DFN1412D-3, -500 mA, -45 V, Surface Mount BC807-16QC-QZ

Name: Nexperia Bipolar Transistor PNP 3-Pin DFN1412D-3, -500 mA, -45 V, Surface Mount BC807-16QC-QZ
Brand: Nexperia
SKU: 296676
Price: 0.07 USD
Availability: InStock



Category Bipolar Transistor Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Model	BC807-16QC-QZ
Mount Type	Surface
Series	BC807QB-Q
Maximum Operating Temperature	150°C
Package Type	DFN1412D-3
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	-45V
Minimum DC Current Gain hFE	100
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	-5V
Maximum Collector Base Voltage VCBO	-50V
Automotive Standard	AEC-Q101
Maximum DC Collector Current Idc	-500mA
Transistor Configuration	PNP

Key Features

Compact DFN1412D-3 plastic package with side-wettable flanks offers a smaller footprint and 0.5 mm low height.
PNP transistor configuration with a maximum DC current gain (hFE) of 100.
High power dissipation capability suitable for various electronic applications.
Qualified to AEC-Q101 automotive standard ensuring reliability under harsh conditions.
Operational temperature range from -55° C to 150° C.
Features three current gain selections optimizing design flexibility.
Compatible with Automatic Optical Inspection (AOI) for quality solder joint verification.
Maximum collector base voltage of -50 V and emitter base voltage of -5 V for stable performance.

Product Description

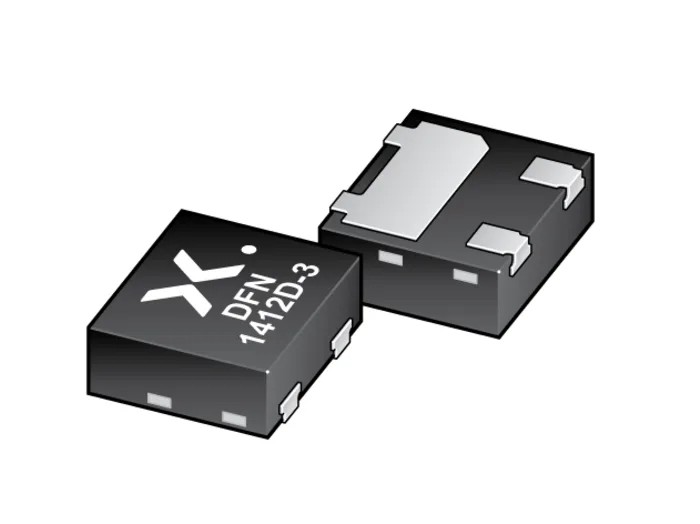

Nexperia BC807-16QC-QZ Bipolar Transistor PNP 3-Pin DFN1412D-3 is a high-performance, general-purpose transistor packaged in an ultra small leadless surface-mount device (SMD) plastic package with side-wettable flanks. It supports a maximum DC collector current of -500 mA and can withstand collector-emitter voltages up to -45 V. This transistor is specifically designed with a PNP configuration enabling a minimum DC current gain (hFE) of 100.

The compact DFN1412D-3 package offers a significantly smaller footprint compared to conventional leaded SMD packages and features a low height profile of only 0.5 mm, making it ideal for space-constrained electronics applications. Its high power dissipation capability and three current gain selection options provide design flexibility for diverse industrial and automotive electronics circuits.

This component is qualified according to the AEC-Q101 automotive standard, making it suitable for demanding automotive environments with stringent reliability standards. It is RoHS compliant, ensuring it meets environmental regulations limiting hazardous substances.

Ideal for use in industrial control systems, automotive electronics, and general semiconductor applications, this transistor withstands operating temperatures ranging from -55° C to 150° C. It also supports surface mount assembly methods and is compatible with Automatic Optical Inspection (AOI) processes for quality assurance of solder joints in automated manufacturing.

Compact DFN1412D-3 surface mount package with side-wettable flanks. Supports maximum collector current of -500 mA and collector-emitter voltage of -45 V. PNP transistor configuration with current gain hFE of minimum 100.

AEC-Q101 qualified for automotive reliability. Wide operating temperature range: -55°C to 150°C. RoHS compliant for environmental safety. Designed for automated PCB assembly with AOI compatibility. Maximum collector base voltage: -50 V; maximum emitter base voltage: -5 V.
