| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BAS40LS-QYL |
| Mount Type | Surface |
| Series | BAS40LS-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 12mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 380mV |

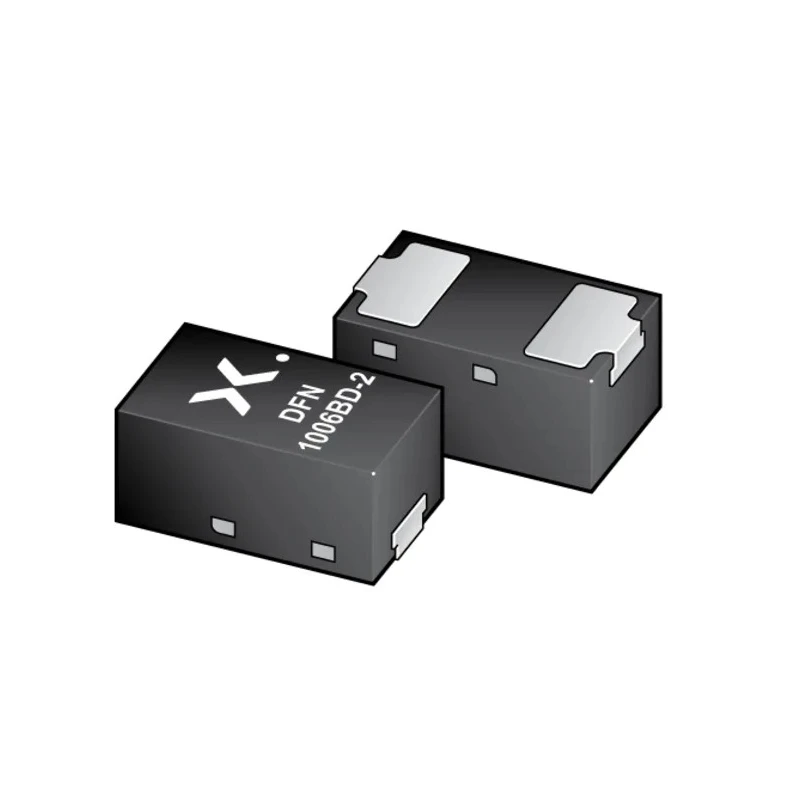

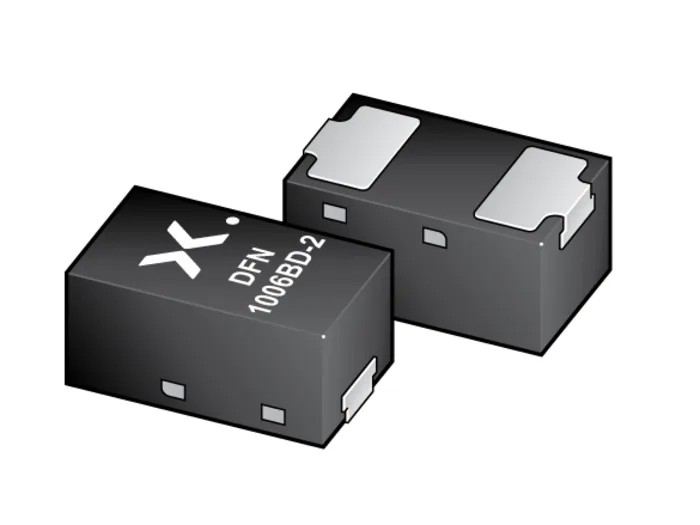

Nexperia BAS40LS-QYL Schottky Diode is a high-performance surface mount diode designed in a compact DFN1006BD-2 (SOD882BD) plastic package with side-wettable flanks, ensuring reliable solder joint inspection and assembly.
This Schottky diode provides a maximum continuous forward current of 12 mA and a peak reverse repetitive voltage of 40 V, making it suitable for precise signal rectification and switching applications in electronic circuits.
With a low forward voltage of 380 mV and low leakage current, it supports efficient operation and energy savings in devices. The component is rated to operate in harsh conditions, with an operating temperature range from -55°C to 150°C, offering excellent thermal stability.
Certified to the automotive standard AEC-Q101, the diode is especially recommended for automotive electronics, ensuring durability and reliability under automotive system conditions.
Applications include semiconductor equipment, power management, signal rectification, and circuit protection in industrial, automotive, and electronic manufacturing environments. Its ultra-compact package improves PCB space utilization in high-density electronics.
The diode supports high switching speed and low capacitance for fast response circuits. It is RoHS compliant, supporting environmentally responsible manufacturing. Designed to facilitate automatic optical inspection (AOI) in assembly lines.
Its packaging on reels enhances production efficiency and soldering accuracy.
This reliable semiconductor component is ideal for various electronic industries including automotive systems, power regulation, and consumer electronics. Explore more Nexperia Schottky Diodes & Rectifiers to optimize your design with quality and compliance.
