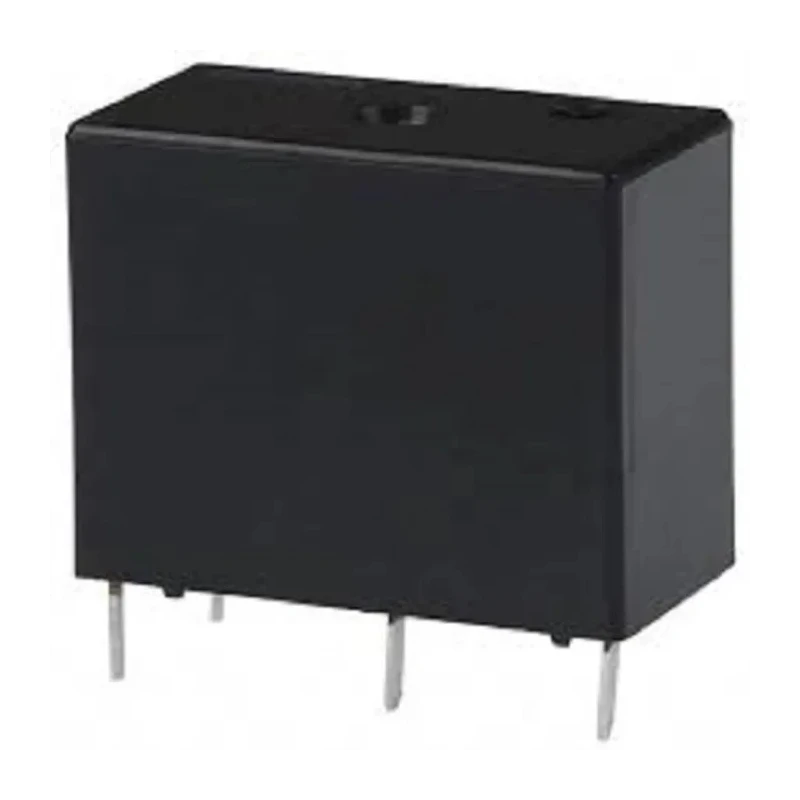

Omron Non-Latching PCB Power Relay 24V DC Coil, 3A Switching Current, SPDT G5Q-14 DC24 (TY)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.8mm |
| Length | 20.3mm |
| Model | G5Q-14 DC24 (TY) |
| Width | 10.3mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5Q |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | IEC/EN 60335-1, RoHS, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 400mW |
Key Features
- Compact PCB mount power relay with silver alloy contacts ensuring reliable conductivity.
- Rated coil voltage of 24 volts DC with low coil power consumption of 400mW.
- Supports switching AC voltage up to 277V and DC voltage up to 30V with 3A maximum current.
- Operates across a wide temperature range from -40°C to 105°C for harsh environments.
- Resistant to high impulse voltage of 8kV between coil and contacts for enhanced durability.
- Single pole double throw (SPDT) contact configuration suitable for versatile circuit control.
- Manufactured with a sealed enclosure to protect internal components from contaminants.
- Ideal for electrical, automation, and signal conditioning applications in industrial settings.
Product Description
Omron G5Q-14 DC24 (TY) non-latching relay is a miniature power relay designed for use in printed circuit board (PCB) mounting applications. It features a 24V DC coil voltage and 3A switching current capability with a silver alloy contact material that ensures optimum electrical conductivity and resistance to corrosion. This relay type uses an SPDT (single pole double throw) contact configuration, making it versatile for various switching needs in industrial automation and electrical signal conditioning.
The relay is engineered to operate reliably within a temperature range of -40°C to 105°C, making it suitable for demanding industrial environments. It offers a coil power consumption of only 400mW, contributing to energy-efficient designs. The sealed enclosure protects the internal mechanisms from dust and moisture, enhancing longevity and performance consistency.
Its high switching AC voltage tolerance of 277V and DC voltage rating of 30V enable it to handle various electrical loads. The design also incorporates high impulse withstand voltage up to 8kV between coil and contacts, improving resistance to voltage spikes that are common in industrial control systems.
Compact design suitable for PCB mounting with solder terminal type. Silver alloy contact material for durability and conductivity. Wide ambient operating humidity tolerance from 5% to 85%. Meets important standards including IEC/EN 60335-1, RoHS compliance, and VDE approval for industrial safety and reliability.
Supports a wide temperature operating range ensuring reliable performance under varying environmental conditions. Ideal for use in power relays, automation controls, and electrical equipment requiring robust and dependable relay switching.
Package includes one Omron G5Q-14 DC24 (TY) non-latching power relay designed to meet rigorous industrial requirements, ensuring reliable operation within automation, electrical, HVAC, and manufacturing systems. This relay is a preferred choice for engineers seeking quality performance with low power consumption in compact PCBs.
Explore the comprehensive range of Omron Relays and accessories at EnvMart to support your industrial automation and electrical control projects with trusted product quality and detailed specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 24V DC.
It has a maximum switching current of 3A.
The relay can switch AC voltage up to 277V and DC voltage up to 30V.
It features a single pole double throw (SPDT) contact configuration.
It operates within a temperature range of -40°C to 105°C.
The coil power consumption is 400mW.
The contacts are made from silver alloy, ensuring reliable conductivity.
The dimensions are 20.3mm in length, 10.3mm in width, and 15.8mm in height.
This model is designed for PCB mounting with solder terminal type.
The contact resistance is 100mΩ.
It meets IEC/EN 60335-1, RoHS compliance, and VDE approval standards.
It is suitable for electrical, automation, and signal conditioning applications in industrial settings.
