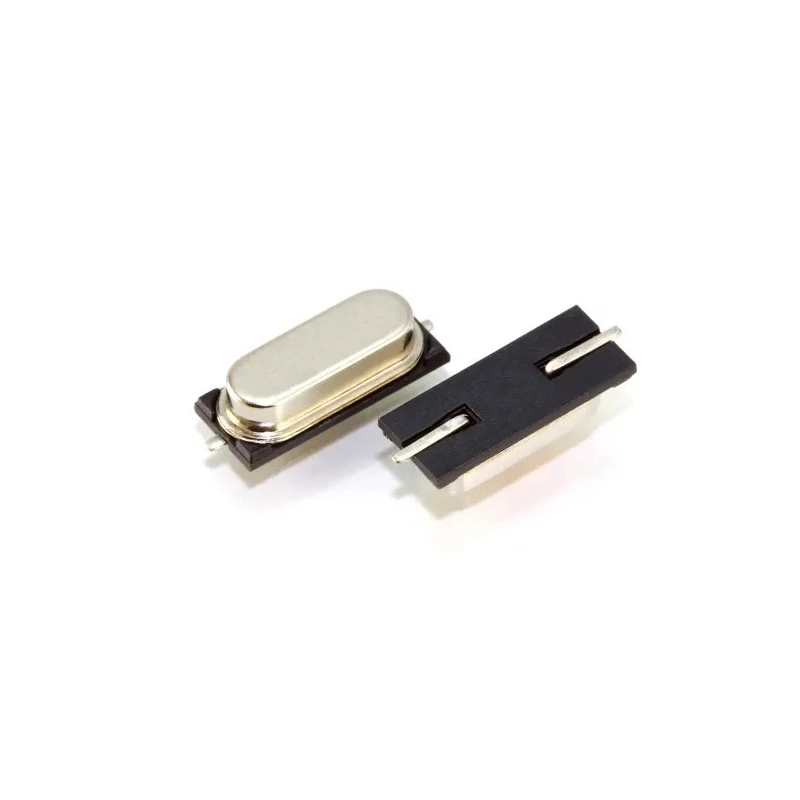

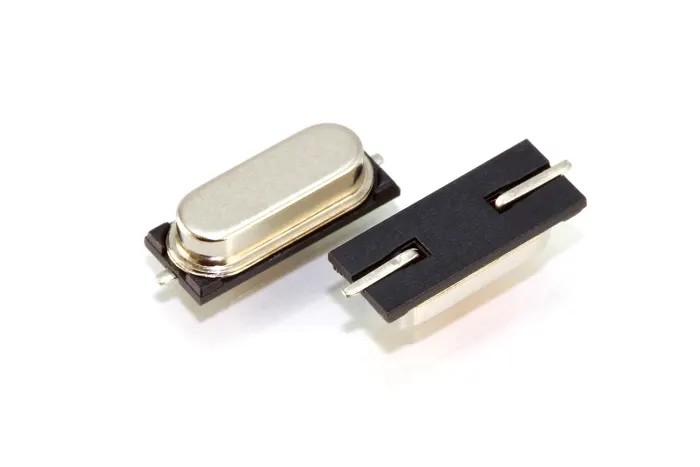

Ecliptek 14.7456 MHz Surface Mount Crystal Unit 50 ppm Frequency Tolerance Tape & Reel Package E1SCA18-14.7456M TR

Ecliptek E1SCA18-14.7456M TR is a crystal unit optimized for surface mount technology with a standard frequency of 14.7456 MHz and frequency tolerance of 50 ppm. This unit offers stable and precise frequency control for electronic oscillator circuits and timing applications.

Designed with a compact Tape & Reel package type, it supports efficient automated PCB assembly processes. The physical dimensions are 13.3 mm in length, 4.85 mm in width, and 3.2 mm in height allowing integration into dense electronic designs.

This crystal unit features a load capacitance of 18 pF, which is ideal for a wide range of oscillator circuits, ensuring optimal output signal quality. Its series resistance is 70 Ω, which helps maintain oscillator performance and limits power loss.

Operating reliably over a temperature range of -20°C to 70°C, this Ecliptek crystal unit is suitable for various industrial, electronic, communications, and manufacturing applications requiring precise frequency control.

The product conforms to RoHS standards, promoting environmental compliance and safety. It is manufactured in China and supplied as a new item, ensuring quality and reliability. Standard frequency of 14.7456 MHz ensuring stable oscillation.

Surface mount type designed for modern PCB assembly. Load capacitance of 18 pF suitable for most oscillator circuits. Comes in Tape & Reel package for automated placement. Physical dimensions: length 13.3 mm, width 4.85 mm, and height 3.2 mm for compact installation.

Frequency tolerance of 50 ppm providing accurate signal generation. Operating temperature ranges from -20°C to 70°C for reliable performance. Series resistance rated at 70 Ω for optimized oscillation quality. RoHS compliant product ensuring environmental safety.

Manufactured in China with new product condition.

Perfect for electronic circuit designs in consumer electronics, industrial equipment, communications, and other precision timing applications requiring crystal units with exact frequency control.
