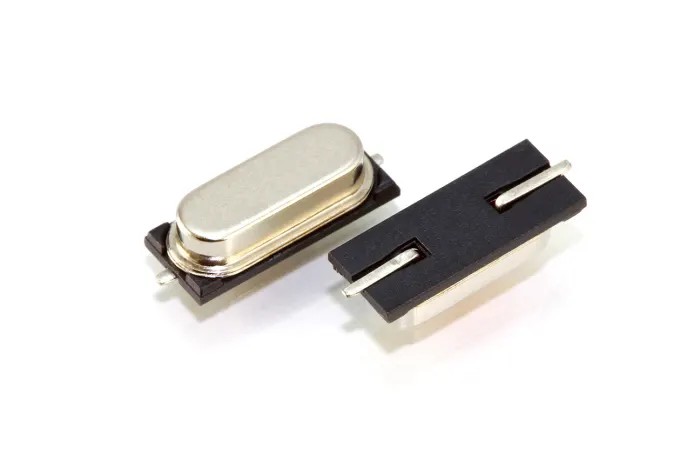

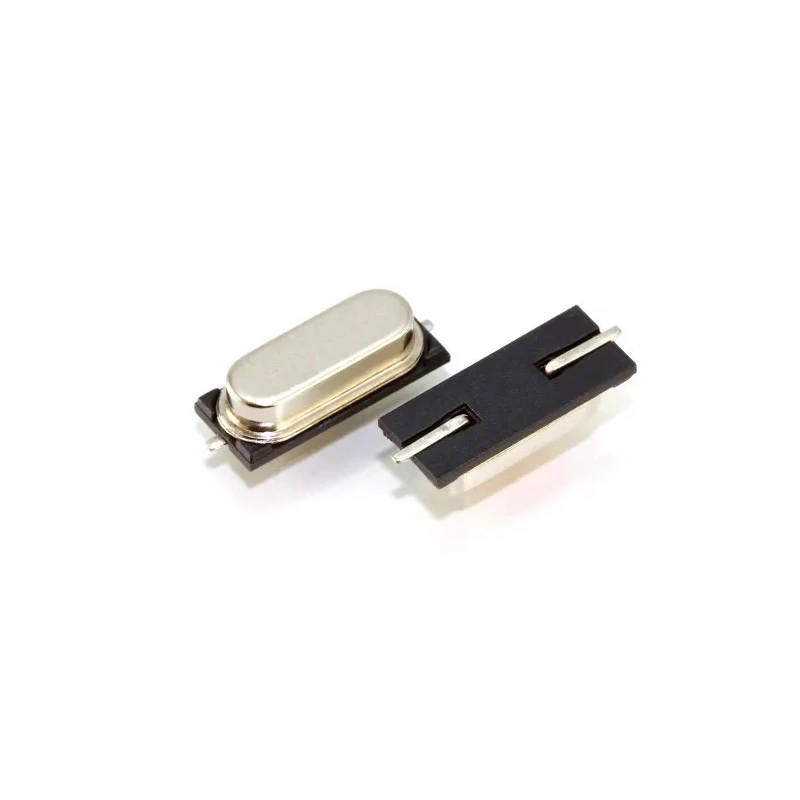

Ecliptek 16 MHz Crystal Unit 30 ppm Frequency Tolerance Surface Mount Tape & Reel Packaging E1SEA18-16.000M TR
Specifications
| Country of Origin | China |
|---|---|
| Brand | Ecliptek |
| Operating Temperature | -20°C to 70°C |
| Package | HC49/UP |
| Height | 3.2mm |
| Length | 13.3mm |
| Model | E1SEA18-16.000M TR |
| Mounting Type | Surface Mount |
| Packaging | Tape & Reel |
| Width | 4.85mm |
| Mount Type | Surface |
| Series | E1S |
| Maximum Operating Temperature | 70°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Standard Frequency | 16MHz |
| Load Capacitance | 18pF |
| Series Resistance | 70Ω |
Key Features
- The crystal unit operates at a standard frequency of 16 MHz with a frequency stability of ±50 ppm.
- It features a load capacitance of 18 pF and a series resistance of 70 Ω.
- Designed for surface mount applications with tape and reel packaging for automated assembly.
- Operating temperature range is from -20 °C up to 70 °C ensuring broad applicability.
- This crystal unit complies with RoHS standards, ensuring environmentally safe manufacturing.
- Package type is HC49/UPO, suitable for various electronic circuits.
- Metal resistance and weld seal construction provide durability and stability.
Product Description
The Ecliptek E1SEA18-16.000M TR crystal unit is a high-quality 16 MHz quartz resonator tailored for surface mounting and supplied in tape and reel format, suitable for automation lines in electronics manufacturing.
This crystal offers tight frequency tolerance at 30 ppm and maintains frequency stability within ±50 ppm over its operating temperature range of -20 °C to 70 °C. Its load capacitance is 18 pF with a series resistance of 70 Ω, providing consistent oscillation performance.
With dimensions of 13.3 mm length, 4.85 mm width, and 3.2 mm height, the crystal's compact HC49/UPO package fits modern PCB footprints efficiently.
Manufactured with metal resistance and a weld seal, this unit ensures robust mechanical and thermal durability, making it ideal for industrial, telecommunications, automotive electronics, and consumer electronics applications.
Compliance with RoHS standards guarantees the product meets environmental and safety directives. The crystal unit operates at a precise 16 MHz frequency with 30 ppm tolerance. It features surface mount tape and reel packaging for high-volume automated assembly.
Operating temperature range from -20 °C to 70 °C supports varied environmental conditions. Compact package size: 13.3 mm length, 4.85 mm width, and 3.2 mm height. Robust construction with metal resistance and weld seal ensures reliability.
RoHS compliant for environmentally responsible usage. Suitable for industrial, automotive, telecom, and consumer electronics sectors. Explore more Ecliptek Crystal Units and related electronic components for your precise frequency control needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz.
This model has a frequency tolerance of 30 ppm.
The load capacitance of this crystal unit is 18 pF.
The dimensions are 13.3 mm in length, 4.85 mm in width, and 3.2 mm in height.
The series resistance is 70 Ω.
The operating temperature range is from -20 °C to 70 °C.
It comes in tape and reel packaging, suitable for surface mount applications.
Yes, this crystal unit complies with RoHS standards, ensuring environmentally safe manufacturing.
This model supports surface mount installation.
It is suitable for industrial, telecommunications, automotive electronics, and consumer electronics applications.
The package type is HC49/UPO, which fits modern PCB footprints efficiently.
It features metal resistance and a weld seal construction for enhanced durability and stability.
