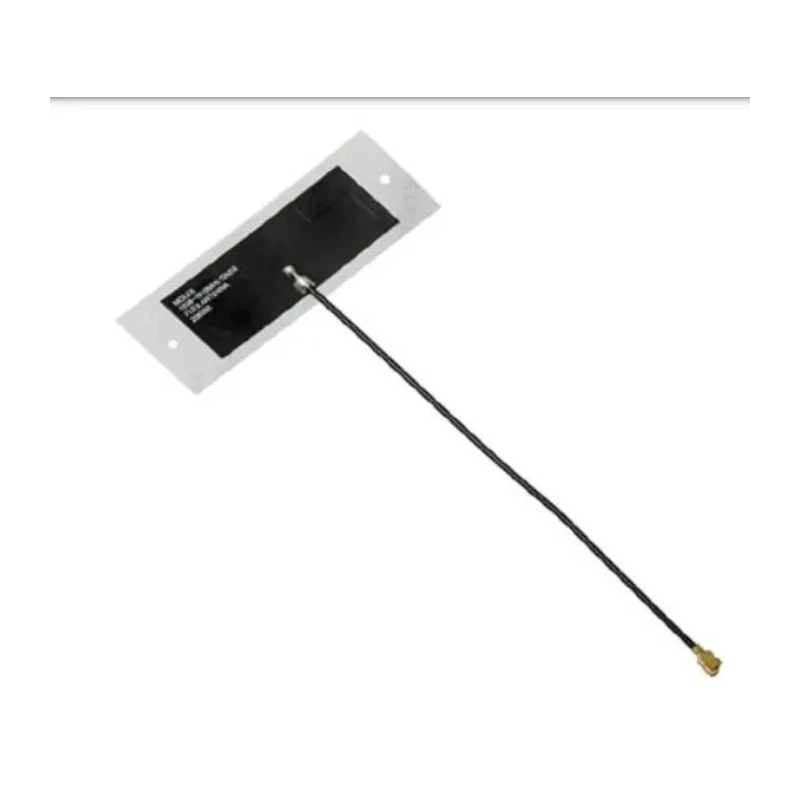

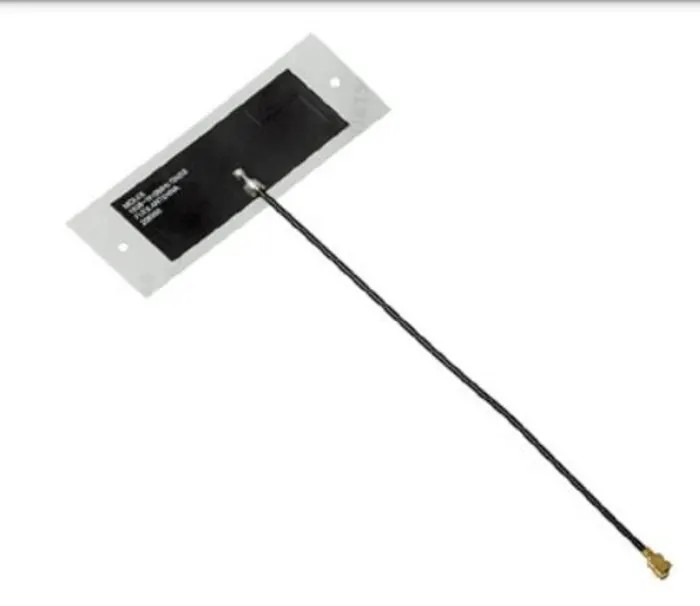

Molex Square Internal Omni-Directional GPS Antenna with IPEX, UFL Connector, 1558-1610MHz, Adhesive Mount 206560-0050
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Connector Type | IPEX, UFL |
| Bandwidth | 1610MHz |
| Series | 206560 |
| Gain | 1.5dBi |
| Lead Length | 0.05m |
| Standards/Approvals | RoHS |
| Maximum Frequency | 1605MHz |
| Connector Gender | Female |
| Minimum Frequency | 1558MHz |
| Internal/External | Internal |
| RF Protocols | GPS |
| Antenna Physical Form | Square |
| Antenna Mount Type | Adhesive |
| Directivity | Omni-Directional |
| Number of Bands | 3 |
Key Features
- Operational frequency range from 1558MHz to 1610MHz ensuring broad GPS compatibility.
- Features a low-profile square physical form factor with adhesive mounting for flexible installation.
- Includes 0.05m (50mm) lead cable with female IPEX, UFL connector for seamless integration.
- Provides omni-directional directivity with a gain of 1.5 dBi for reliable signal reception.
- RoHS compliant ensuring adherence to environmental standards.
- Supports 3 frequency bands enhancing multi-system GNSS performance.
- Lightweight design with net weight approximately 0.466 grams for compact applications.
- Linear polarization delivering consistent signal quality.
Product Description
Molex 206560-0050 is a precision-engineered square shaped internal GPS antenna supporting GNSS systems including BeiDou, GLONASS, and GPS. Operating across a frequency band from 1558MHz to 1610MHz, this antenna offers omni-directional directivity with a gain of 1.5 dBi that enables uniform signal reception from all directions.
Constructed with a low-profile square form factor, the antenna is equipped with an adhesive mount type allowing secure and flexible installation in compact spaces. The antenna leads with female IPEX, UFL connectors attached to a 50mm lead cable ensure easy connection to electronic modules.
Designed for indoor use, this Molex antenna utilizes linear polarization to maintain signal integrity and minimize interference. Its lightweight 0.466 g construction suits various applications requiring minimal bulk and weight. The product adheres to RoHS standards, ensuring compliance with environmental directives for safer electronic products.
This GPS antenna is ideal for industrial, commercial, and laboratory GPS/GNSS applications where a reliable, compact internal antenna is required. It is an integral component for manufacturing, automotive, agriculture, and navigation systems.
Molex's 206560 series continues to provide robust antenna solutions known for quality and performance. The adhesive base mount and flexible cable length enhance installation versatility across diverse applications in electronics and telecommunications.
Operational frequency range from 1558MHz to 1610MHz ensuring broad GPS compatibility. Features a low-profile square physical form factor with adhesive mounting for flexible installation. Includes 0.05m (50mm) lead cable with female IPEX, UFL connector for seamless integration.
Provides omni-directional directivity with a gain of 1.5 dBi for reliable signal reception. RoHS compliant ensuring adherence to environmental standards. Supports 3 frequency bands enhancing multi-system GNSS performance.
Lightweight design with net weight approximately 0.466 grams for compact applications. Linear polarization delivering consistent signal quality. Part of Molex 206560 series, suitable for internal GPS antenna applications.
Manufactured in China with high-quality engineering standards. Explore more GPS Antennas from Molex and advanced electronic components and discover solutions tailored to your industrial and commercial requirements on EnvMart.
Explore more products in our Passive Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operational frequency range of this antenna is from 1558MHz to 1610MHz, ensuring broad GPS compatibility.
It features a female IPEX, UFL connector attached to a 0.05m (50mm) lead cable for seamless integration.
This antenna provides a gain of 1.5 dBi, which supports reliable signal reception from all directions.
The antenna is designed with an adhesive mount type, allowing for flexible installation in compact spaces.
The net weight of this model is approximately 0.466 grams, making it suitable for applications requiring minimal bulk.
It features omni-directional directivity, which allows for uniform signal reception from all directions.
Yes, it is RoHS compliant, ensuring adherence to environmental standards for safer electronic products.
The antenna is constructed in a low-profile square physical form factor, designed for internal use.
This antenna supports 3 frequency bands, enhancing its multi-system GNSS performance.
It is manufactured in China, adhering to high-quality engineering standards.
It utilizes linear polarization, which helps maintain signal integrity and minimize interference.
