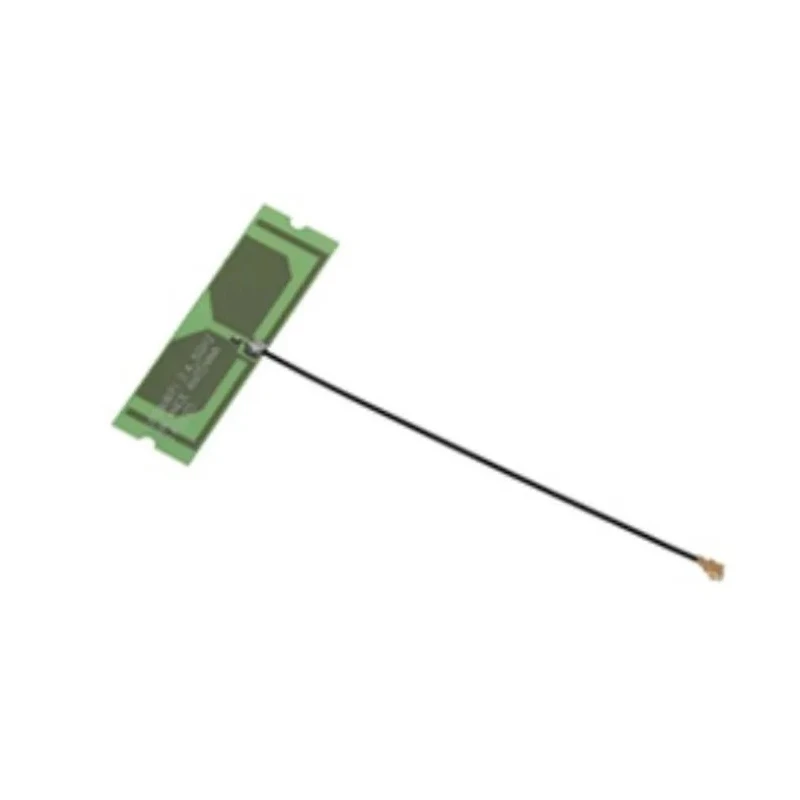

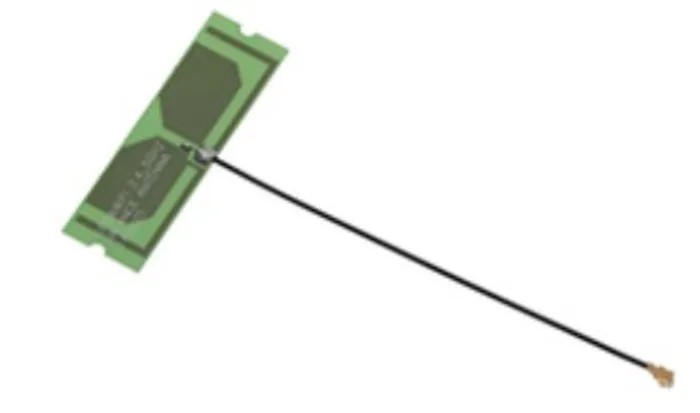

Molex T-Bar Internal WiFi Antenna with U.FL/I-PEX MHF Connector, 3.8dBi Gain, 100mm Cable Length, Model 146220-0100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Cable Length | 100mm |
| Connector Type | U.FL/I-PEX MHF Connector |
| Series | 146220 |
| Gain | 3.8dBi |
| Standards/Approvals | EU RoHS, CHINA RoHS |
| Connector Gender | Female |
| Minimum Frequency | 1575.42MHz |
| Internal/External | Internal |
| RF Protocols | WiFi |
| Antenna Physical Form | T-Bar |
| Antenna Mount Type | Through Hole/Bolted |
| Directivity | Omni-Directional |
| Number of Bands | 4 |
Key Features
- Balanced dipole design suitable for WiFi 6E, GNSS, Bluetooth, and ZigBee applications.
- Equipped with U.FL/I-PEX MHF female connector for secure mounting.
- Includes 100mm cable length for flexible installation.
- Omni-directional directivity ensures uniform signal coverage.
- Compact T-Bar physical form with through-hole/bolted mounting options.
- Complies with EU RoHS and China RoHS standards for environmental safety.
- Designed to operate efficiently across four frequency bands.
- Manufactured in China with reliable build quality.
Product Description
Molex 146220-0100 T-Bar internal WiFi antenna features a balanced dipole design optimized for 2.4 to 5 GHz wireless applications, including WiFi 6E, GNSS, Bluetooth, and ZigBee protocols. Operating with a minimum frequency of 1575.42 MHz and providing a gain of 3.8 dBi, this high-efficiency antenna ensures stable and effective signal transmission.
The antenna incorporates a U.FL/I-PEX MHF female connector with a 100 mm cable length, facilitating easy integration with compatible devices. Its T-Bar physical form factor and through-hole/bolted mounting type allow for secure and versatile installation in various electronic contexts.
Omni-directional directivity enables broad signal coverage, making it suitable for diverse industrial, commercial, and laboratory wireless communication applications. It supports four frequency bands, ensuring compatibility across multiple RF protocols.
Compliant with EU RoHS and China RoHS standards, this antenna meets strict environmental and safety requirements, reflecting Molex's commitment to quality and sustainable manufacturing. Its country of origin is China, indicating manufacturing and quality assurance standards consistent with international norms.
Balanced dipole antenna for 2.4 to 5 GHz applications. Omni-directional radiation pattern for wide coverage. U.FL/I-PEX MHF female connector with 100mm cable. Through-hole/bolted mounting for sturdy installation. Complies with EU RoHS and China RoHS environmental standards.
Supports WiFi 6E, GNSS, Bluetooth, and ZigBee technologies. Compact T-Bar antenna physical form for easy integration. Manufactured in China with reliable quality.
This Molex WiFi antenna is ideal for integration into electronic components requiring strong, reliable wireless connectivity. It serves industrial, telecommunications, laboratory, and manufacturing sectors, supporting advanced wireless protocols. Browse EnvMart categories for similar high-performance WiFi antennas and electronic communication components.
Explore more products in our Passive Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a gain of 3.8 dBi, providing effective signal transmission for wireless applications.
The antenna comes with a cable length of 100 mm, allowing for flexible installation options.
It is equipped with a U.FL/I-PEX MHF female connector, ensuring secure mounting with compatible devices.
The antenna operates with a minimum frequency of 1575.42 MHz, suitable for various RF applications.
It features through-hole/bolted mounting options, providing sturdy installation in various electronic contexts.
The antenna has a compact T-Bar physical form, designed for easy integration into electronic components.
This model supports four frequency bands, ensuring compatibility across multiple RF protocols.
It complies with EU RoHS and China RoHS standards, reflecting its adherence to environmental safety requirements.
The antenna is manufactured in China, adhering to international quality assurance standards.
It features omni-directional directivity, ensuring uniform signal coverage for effective communication.
It is suitable for various industrial, commercial, and laboratory wireless communication applications.
