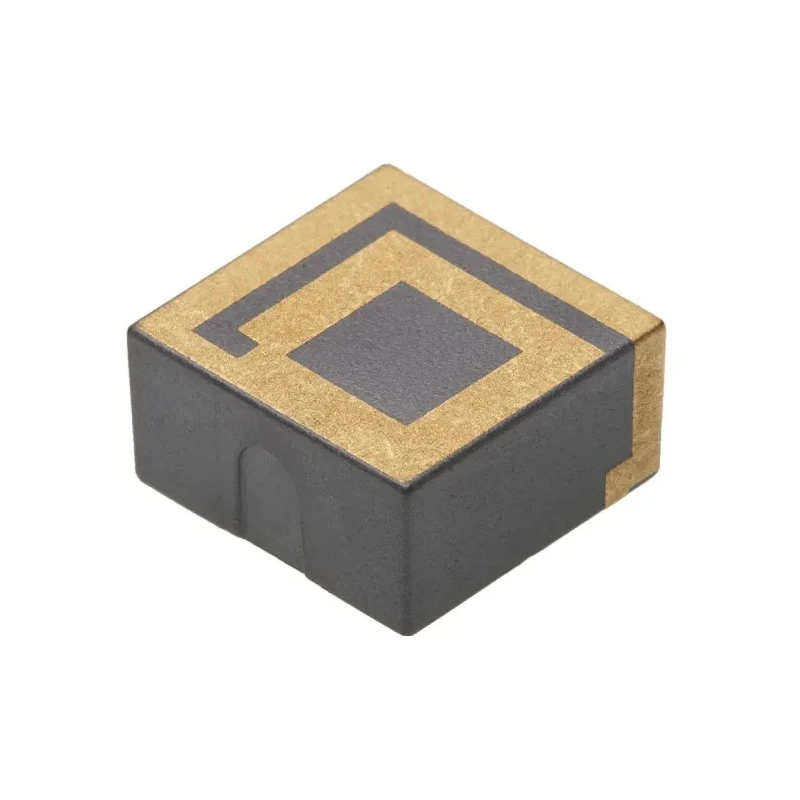

Molex Square Omni-Directional GPS Antenna with Surface Mount Connector 1556MHz to 1607MHz 1.1dBi Gain 146216-0001
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Connector Type | Surface Mount |
| Series | 146216 |
| Gain | 1.1dBi |
| Standards/Approvals | EU RoHS China RoHS Compliant, EU ELV Not Relevant, REACH SVHC Not Contained Per - D(2020)9139-DC (19 Jan 2021), Halogen-Free Status Low-Halogen |
| Maximum Frequency | 1607MHz |
| Minimum Frequency | 1556MHz |
| Internal/External | Internal |
| RF Protocols | GPS |
| Antenna Physical Form | Square |
| Antenna Mount Type | Surface |
| Directivity | Omni-Directional |
| Number of Bands | 3 |
Key Features
- This antenna features a square physical form with omni-directional directivity.
- It supports GPS RF protocols with a gain of 1.1 dBi for reliable signal reception.
- The antenna mount type is surface, suitable for compact PCB integration.
- Complies with EU RoHS, China RoHS, and is low-halogen, ensuring environmental safety.
- The product is manufactured in China and includes three frequency bands.
- Lead is not included with this antenna, supporting design flexibility.
- The antenna employs right handed circular polarization (RHCP) with a low profile of 11.50 mm width and 5.95 mm thickness.
Product Description

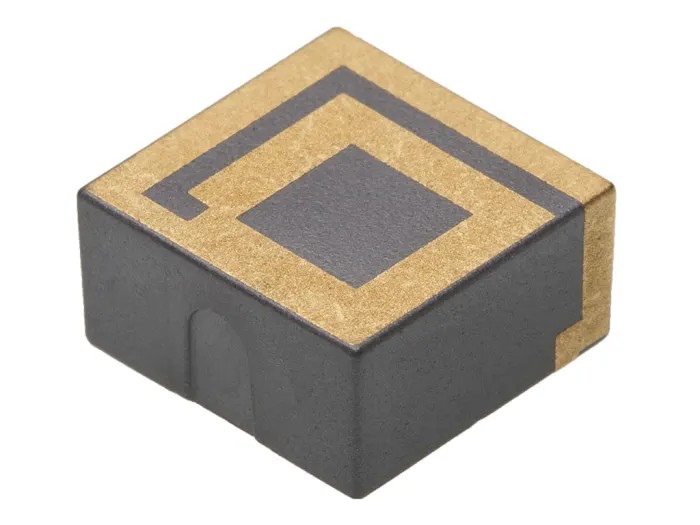

Molex 146216-0001 is a square omni-directional GPS antenna featuring a surface mount connector designed for internal applications. Operating within a frequency range of 1556MHz to 1607MHz, it supports GPS RF protocols and provides a gain of 1.1 dBi, ensuring effective satellite signal reception for navigation and positioning systems.
This antenna's compact square physical form factor with dimensions of approximately 11.50 mm width and 5.95 mm thickness allows for seamless integration on printed circuit boards with surface mounting, facilitating streamlined device design.
The mount type is surface, facilitating easy and reliable attachment onto substrates. Its omni-directional directivity ensures uniform signal reception from all directions, enhancing device performance in environments with variable satellite signal paths.
Manufactured in China, this antenna conforms to strict environmental standards including EU RoHS, China RoHS compliance, and low-halogen content, making it suitable for use in environmentally conscious projects.
The Molex 146216 series features right handed circular polarization (RHCP) with three frequency bands, optimized for GPS applications. No lead wires are included, allowing for customized cable connection solutions.
This antenna features a square physical form with omni-directional directivity. It supports GPS RF protocols with a gain of 1.1 dBi for reliable signal reception. The antenna mount type is surface, suitable for compact PCB integration.
Complies with EU RoHS, China RoHS, and is low-halogen, ensuring environmental safety. The product is manufactured in China and includes three frequency bands. Lead is not included with this antenna, supporting design flexibility.
The antenna employs right handed circular polarization (RHCP) with a low profile of 11.50 mm width and 5.95 mm thickness.
This GPS antenna is ideally suited for use in electronics manufacturing, navigation system design, communication equipment, and other industrial applications requiring reliable satellite signal acquisition in a compact format.
Explore more GPS antenna products and accessories in EnvMart to enhance your designs with quality components meeting industrial standards.
Explore more products in our Passive Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The antenna operates within a frequency range of 1556MHz to 1607MHz, supporting GPS RF protocols.
This model provides a gain of 1.1 dBi, ensuring effective satellite signal reception.
It features a surface mount type, suitable for compact integration on printed circuit boards.
The antenna has a square physical form, allowing for efficient space utilization in device designs.
This model has omni-directional directivity, which allows for uniform signal reception from all directions.
It complies with EU RoHS and China RoHS standards, and is classified as low-halogen, ensuring environmental safety.
The antenna has a thickness of 5.95 mm, contributing to its low-profile design.
The antenna measures approximately 11.50 mm in width, facilitating compact installation.
This model supports three frequency bands, optimized for GPS applications.
No lead wires are included with this antenna, allowing for customized cable connection solutions.
The Molex 146216-0001 antenna is manufactured in China.
It is suitable for use in electronics manufacturing, navigation system design, and communication equipment requiring reliable satellite signal acquisition.
