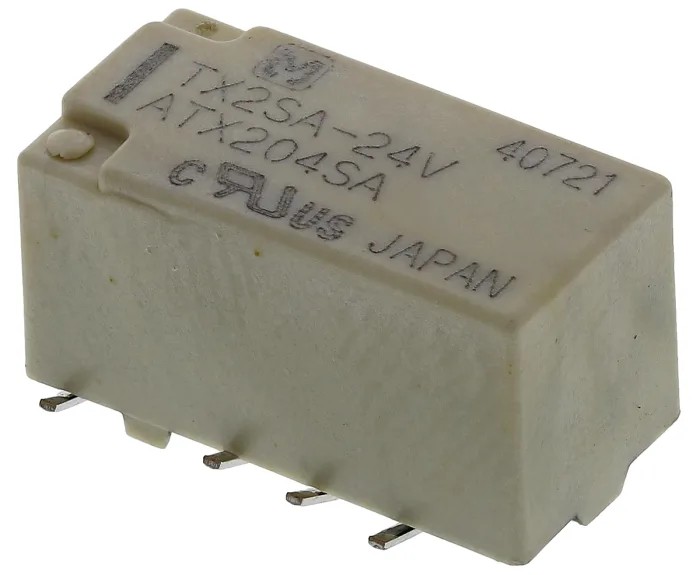

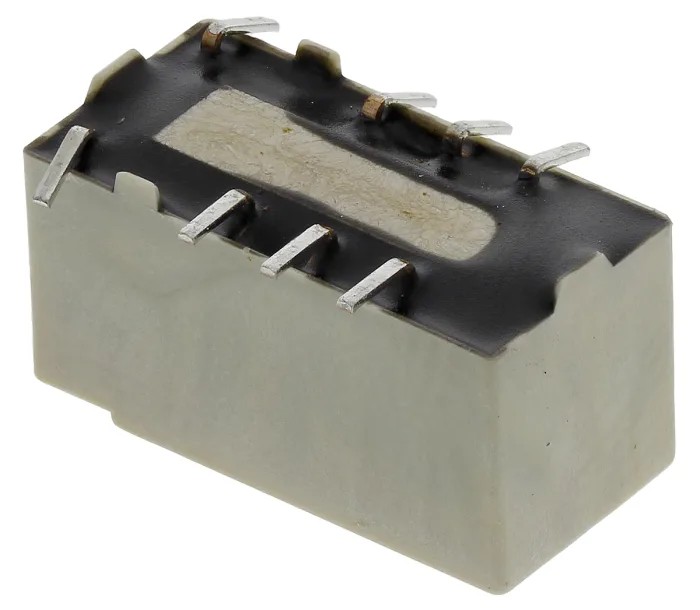

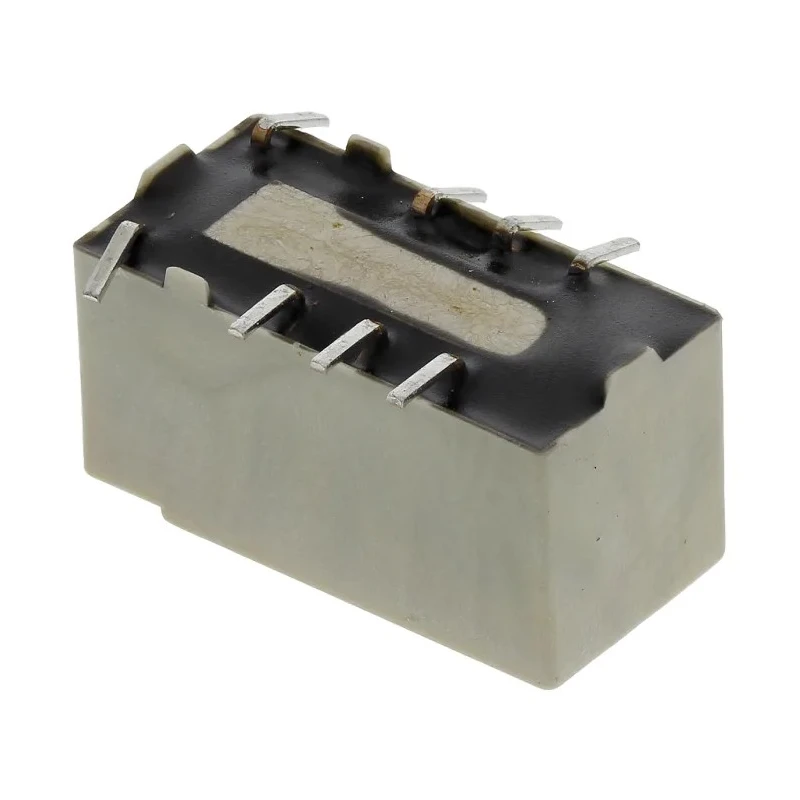

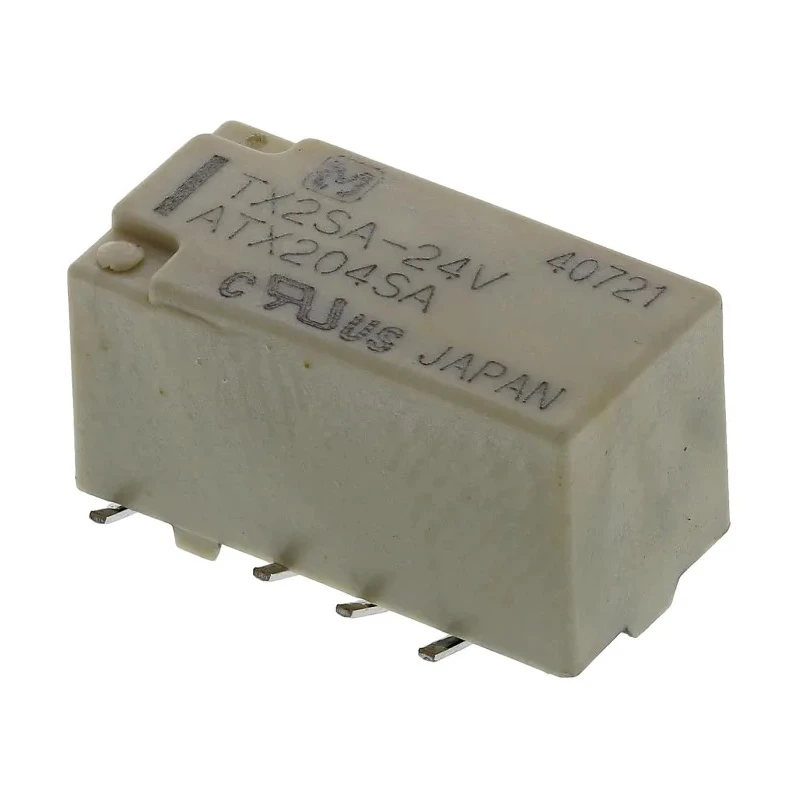

Panasonic Surface Mount Signal Relay 24V DC Coil 2A DPDT Gold Plated Contacts TX2SA-24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2SA-24V |
| Width | 7.4mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Coil Resistance | 4100Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 220V ac |
| Coil Power | 140mW |
| Switching Power | 140mW |
Key Features
- Equipped with a 24V DC coil voltage for stable switching operation.
- Double-pole double-throw contact configuration (DPDT) for versatile circuit control.
- Supports switching current up to 2A for reliable signal handling.
- Gold plated contact material ensures low resistance and durability.
- Surface mount type suitable for PCB integration.
- Operating temperature range from -40°C to 85°C for varied environments.
- Coil resistance of 4100 ohms and coil power of 140mW for efficient operation.
- Designed with high surge and breakdown voltage tolerance for enhanced reliability.
Product Description
Panasonic TX2SA-24V is a surface mount signal relay with a 24V DC coil and DPDT contact configuration designed for precise signal switching applications. The relay supports a switching current of 2A and switching voltages up to 220V AC/DC, making it ideal for various electronic circuits requiring reliable switching.The compact size, measuring 15mm in length, 8.2mm in height, and 7.4mm in width, allows for efficient PCB mounting in compact electronic assemblies. Gold plated contacts provide low contact resistance and enhance durability, suitable for telecommunications, security, medical equipment, and measurement devices.This signal relay exhibits high surge and breakdown voltage resistance, with sealed construction permitting automatic washing processes. It offers high vibration and shock resistance for industrial and laboratory use cases.Operational temperature rating spans from -40°C to 85°C, ensuring reliable performance in harsh environments. Its surface mount design simplifies assembly in modern PCBs, promoting integration in industrial automation and electrical applications.
Equipped with a 24V DC coil voltage for stable switching operation. Double-pole double-throw contact configuration (DPDT) for versatile circuit control. Supports switching current up to 2A for reliable signal handling. Gold plated contact material ensures low resistance and durability.
Surface mount type suitable for PCB integration. Compact dimensions: 15mm length, 8.2mm height, 7.4mm width. Operating temperature range from -40°C to 85°C for varied environments. Coil resistance of 4100 ohms and coil power of 140mW for efficient operation.
Designed with high surge and breakdown voltage tolerance for enhanced reliability. RoHS compliant and manufactured in Japan ensuring high-quality standards.
Panasonic Surface Signal Relays are widely used in industrial, laboratory, telecommunications, security, and medical equipment settings. They provide robust switching solutions with excellent electrical and mechanical endurance.Explore more Panasonic relays and components on EnvMart for reliable industrial electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC, ensuring stable switching operation.
It features a double-pole double-throw (DPDT) contact configuration, allowing for versatile circuit control.
This relay supports a maximum switching current of 2A, making it suitable for reliable signal handling.
The dimensions of this relay are 15mm in length, 8.2mm in height, and 7.4mm in width, allowing for efficient PCB mounting.
It operates effectively within a temperature range of -40°C to 85°C, suitable for varied environmental conditions.
This model is a surface mount type, designed for easy integration into PCBs.
The coil resistance is 4100 ohms, contributing to its efficient operation.
The coil power is 140mW, and it also supports a switching power of 140mW.
The contacts are made of gold plated material, which ensures low resistance and durability.
It can switch both AC and DC voltages up to 220V, making it versatile for various applications.
Yes, it is RoHS compliant, ensuring it meets certain environmental and safety standards.
This relay is widely used in telecommunications, security, medical equipment, and measurement devices due to its robust switching capabilities.
