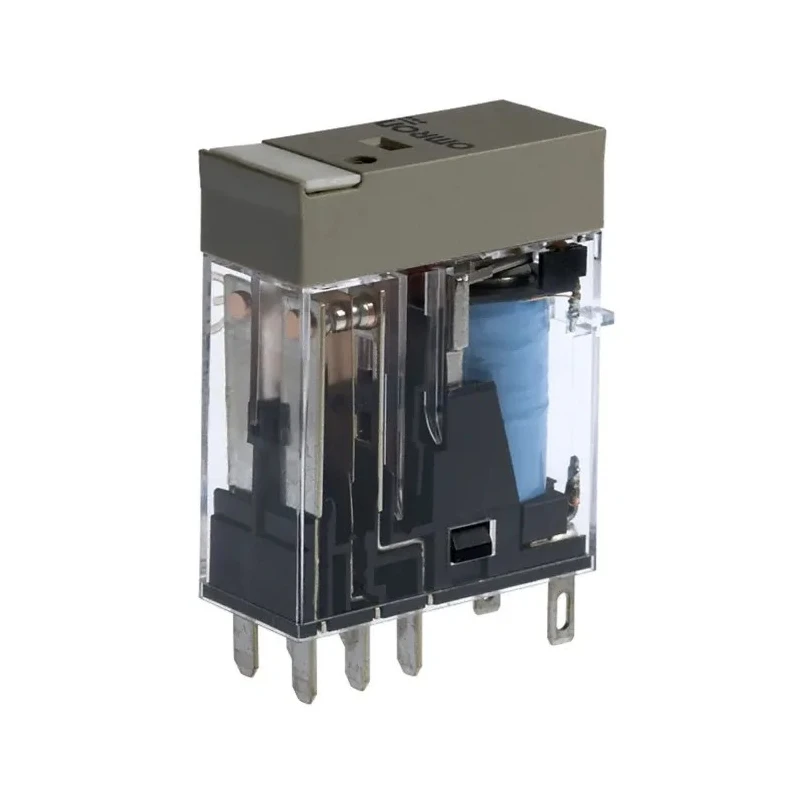

Omron Non-Latching Relay 24V DC Coil, 5A Switching Current, DPDT, Plug-In Terminal G2R-2-SN-AP3 24VDC (S)

Omron G2R-2-SN-AP3 24VDC (S) non-latching relay is a compact and reliable power relay designed for industrial and automation applications. Featuring a 24V DC coil and 5A switching current capacity with a double-pole double-throw (DPDT) contact configuration, it offers robust performance and flexibility.

The plug-in terminal type and compact dimensions (35.5mm height, 13mm width, 29mm length) facilitate easy integration into tight spaces and control panels. The relay operates efficiently with a coil resistance of 113Ω and low coil power consumption of 530mW, making it energy efficient.

Designed for challenging environments, it supports a wide operating temperature range from -40°C to 70°C while maintaining switching capacities of 125V DC and 440V AC, suitable for varied industrial electrical loads. The silver alloy contacts ensure low contact resistance (100mΩ) and durable switching operation, contributing to long service life.

The transparent housing provides visual access to the internal components, enabling easy inspection and maintenance. It supports mechanical operation frequencies up to 18,000 cycles per hour, making it suitable for fast-paced industrial and commercial systems.

Common applications include solar energy generation, heating, ventilation, air conditioning (HVAC) systems, motor controls, and industrial cleaning equipment. Its DPDT contact configuration allows independent control of two circuits, ideal for complex control tasks.

Operates efficiently with a coil resistance of 113Ω and coil power of 530mW. Supports switching voltages up to 125V DC and 440V AC for versatile use. Compact plug-in terminal design with dimensions of 35.5mm height, 13mm width, and 29mm length enables easy installation.

Built to withstand operating temperatures from -40°C to 70°C for reliable performance in harsh environments. Silver alloy contacts minimize contact resistance to 100mΩ ensuring durable and reliable switching. Meets RoHS standards for compliance and environmental safety.

Supports up to 18,000 mechanical operations per hour suitable for fast-paced industrial applications. Transparent housing allows visual inspection of internal components. Ideal for controlling electrical loads in lighting, motor controls, solar energy generation, and HVAC systems.

Double-pole, double-throw (DPDT) relay enabling independent control of two circuits.

This Omron relay is ideal for industrial and commercial automation applications requiring dependable, compact, and easy-to-install power relays. Explore more Relays and related components in the Electronics & Electricals category on EnvMart.
