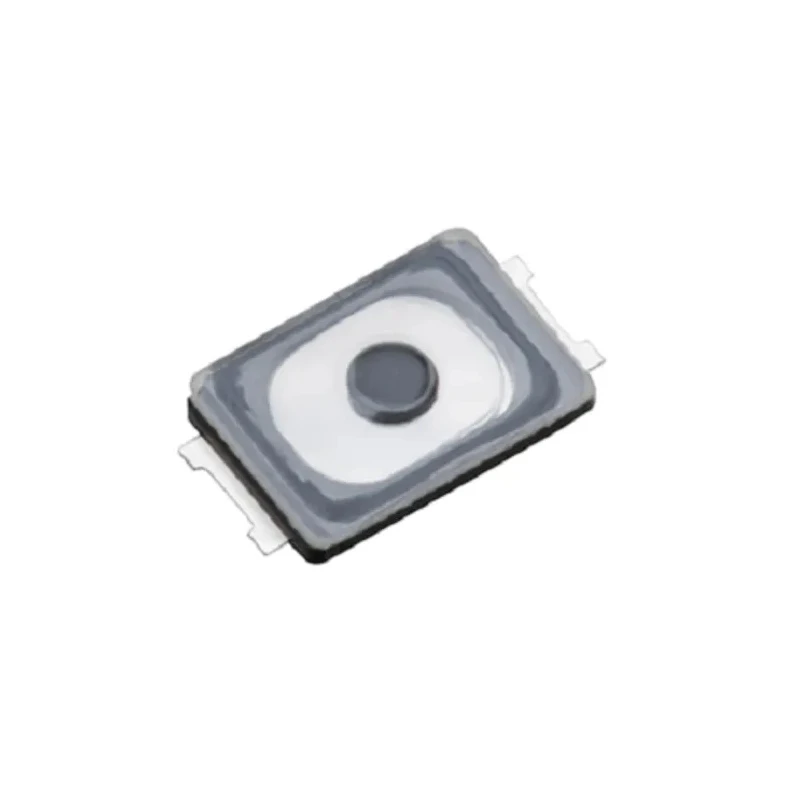

Panasonic IP67 Black Tactile Switch Push Plate, 0.85mm Actuator, SPST 20mA, Surface Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 0.6mm |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Terminal type | Straight |
| Switch Operation | Push-On |
| Actuator Colour | Black |
| Actuator Length | 0.85mm |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 3.3N |
| Mechanical Life | 300000Cycles |
Key Features
- This tactile switch features a single-pole, single-throw (SPST) contact configuration.
- Actuator style is a straight push plate providing excellent user tactile feedback.
- Designed for mechanical robustness with a life expectancy of 300000 cycles.
- Operates reliably in temperatures from -40°C to +85°C with an operating force of 3.3N.
- Offers high environmental protection with an IP67 ingress rating to resist dust and water.
- This component is suitable for portable electronic devices requiring precise input switches.
- Surface mount design facilitates easy PCB integration and assembly.
- Non-illuminated actuator helps maintain low power consumption in circuits.
Product Description
Panasonic EVPAWED40 is a high-quality IP67 rated tactile switch featuring a black 0.85 mm push plate actuator. This single-pole, single-throw (SPST) switch is designed for surface mounting applications, suitable for portable electronic equipment such as mobile phones and portable audio devices, providing effective and reliable push-on switch operation.
The switch has a maximum operating temperature of 85°C and can function reliably in a temperature range from -40°C to +85°C, making it suitable for various industrial, commercial, and consumer electronic applications.
It offers a switch contact current rating of 20mA and an operating force of 3.3N, striking the right balance between user tactile feedback and electrical performance. The mechanical life cycle is rated at 300,000 cycles, supporting long-term durability and dependability in demanding environments.
Its IP67 ingress protection ensures resistance against dust and temporary water immersion, ideal for outdoor or harsh environment electronic devices. The actuator is non-illuminated with a straight push plate style that provides ergonomic usability with minimal space requirements.
The surface mount design simplifies printed circuit board assembly and automation compatibility, enhancing production efficiency with tape packaging suitable for high-volume manufacturing settings.
This tactile switch supports SPST contact configuration for precise momentary switching. The black actuator color blends well with compact device interfaces. The switch is not illuminated, reducing power consumption when installed.
Design caters to rugged use with excellent mechanical life and environmental sealing. Electrical rating accommodates low voltage DC applications up to 20mA contact current. Suitable for industrial automation, consumer electronics, telecommunications, and instrumentation sectors.
Packaged ready for automatic insertion ensuring efficient assembly into electronic products. Explore the full range of Tactile Switches and electronic switch components at EnvMart for your advanced electrical and automation system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole, single-throw (SPST) contact configuration, allowing for precise momentary switching.
The maximum operating temperature for this tactile switch is 85°C, enabling reliable performance in high-temperature environments.
The actuator length of the push plate is 0.85mm, designed for effective user interaction and tactile feedback.
This switch requires an operating force of 3.3N, providing a balanced tactile response for users.
The mechanical life expectancy of this tactile switch is rated at 300,000 cycles, supporting long-term durability in use.
This unit has an IP67 ingress protection rating, ensuring resistance against dust and temporary water immersion.
It employs a surface mount design, facilitating easy integration into printed circuit boards (PCBs).
The switch supports a contact current rating of 20mA, suitable for low voltage DC applications.
This model can operate reliably in a temperature range from -40°C to +85°C, making it versatile for various applications.
The actuator color of this switch is black, designed to blend well with compact device interfaces.
This tactile switch features a straight terminal type, designed for straightforward installation.
This switch is suitable for applications in industrial automation, consumer electronics, telecommunications, and instrumentation sectors.
