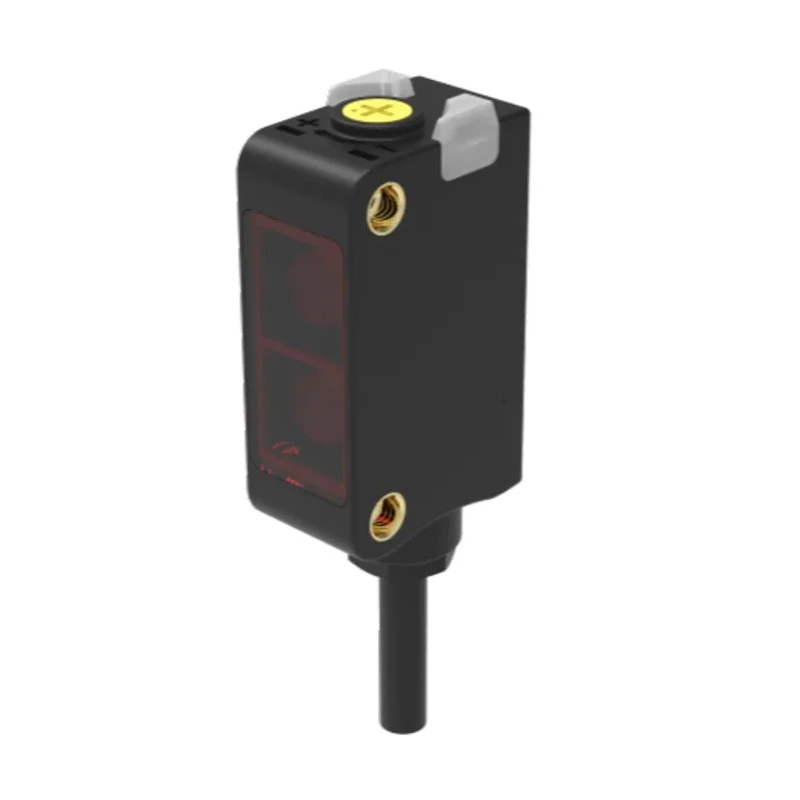

RS PRO Background Suppression Photoelectric Sensor Block Sensor 0.35 m PNP NO/NC IP67 IP67
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 3.5ms |
| Light Source | Red Light |
| Detection range | 0.35 m |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Bracket, Screw |
| Housing Material | ABS, Polycarbonate, Polymethyl Methacrylate |
| Electrical Connection | PVC cable or M8 Connector |
| Output type | PNP NO/NC |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Note | Emitter and receiver should be used in pairs |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| Terminal type | Cable |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Sensor Style | Block |
Key Features
- Equipped with a universal housing suitable for many sensor replacement applications.
- Rated IP67 for protection against dust and water ingress, suitable for harsh industrial environments.
- One-click distance setting allows fast and accurate detection range adjustment.
- Detects presence or absence of objects using red light with background suppression detection technology.
- Output type switchable between normally open and normally closed PNP configurations.
- Operates within a temperature range of -25°C to 55°C, ensuring reliability in varied conditions.
- Constructed using durable ABS, polycarbonate, and polymethyl methacrylate housing materials.
- Mounting options include brackets and screws for secure installation.
Product Description
RS PRO IP67 Background Suppression Photoelectric Sensor block sensor model IP67 features a detection range of 0.35 meters and a PNP normally open/normally closed output. It employs red light technology with background suppression to enable high precision sensing in industrial environments.
This sensor features a robust construction with an IP67 ingress protection rating, making it ideal for harsh environments where dust and water resistance are essential. The durable ABS, polycarbonate, and polymethyl methacrylate housing materials contribute to its longevity and resistance to wear.
Operating temperature ranges from -25°C to 55°C, ensuring functionality across a variety of industrial conditions. The device provides a fast response time of 3.5 milliseconds, enhancing its suitability for conveyor belt automation and manufacturing process monitoring.
The device's universal housing allows it to serve as a suitable replacement across multiple sensor types. The mounting options include brackets and screw mounts, supporting secure and flexible installation preferences. Electrical connections are provided through a PVC cable or an M8 connector for versatile integration.
The sensor switches between NO and NC outputs via PNP technology, supporting versatile control system requirements. It is not certified for hazardous areas but carries CE approval, underscoring its compliance with relevant standards.
Its design enables detection of objects irrespective of their material, assisting applications in industrial automation, manufacturing, and control systems. The emitter and receiver function optimally when used in pairs to ensure accurate sensing.
Equipped with a universal housing suitable for many sensor replacement applications. Rated IP67 for protection against dust and water ingress, suitable for harsh industrial environments. One-click distance setting allows fast and accurate detection range adjustment.
Detects presence or absence of objects using red light with background suppression detection technology. Output type switchable between normally open and normally closed PNP configurations. Operates within a temperature range of -25°C to 55°C, ensuring reliability in varied conditions.
Constructed using durable ABS, polycarbonate, and polymethyl methacrylate housing materials. Mounting options include brackets and screws for secure installation. Electrical connection via PVC cable or optionally an M8 connector for flexibility in installation.
Designed for industrial automation applications such as conveyor systems and object detection tasks.
RS PRO products are available in the Electronics & Electricals category under Sensors for automation and control gear applications. Explore the variety of RS PRO Photoelectric Sensors for dependable performance in your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 0.35 meters.
It has a response time of 3.5 milliseconds, making it suitable for fast applications.
This sensor supports PNP output that can be configured as normally open (NO) or normally closed (NC).
It is rated IP67, providing protection against dust and water ingress, making it suitable for harsh environments.
The housing is constructed from ABS, polycarbonate, and polymethyl methacrylate, ensuring durability.
It operates within a temperature range of -25°C to 55°C, ensuring functionality in various conditions.
Electrical connections can be made via a PVC cable or optionally through an M8 connector for flexibility.
Mounting options include brackets and screw mounts, allowing for secure installation.
The maximum current for this unit is 100 mA.
This model is not certified for hazardous areas but carries CE approval, indicating compliance with relevant standards.
It is designed for industrial automation applications such as conveyor systems and object detection tasks.
The emitter and receiver should be used in pairs to ensure accurate sensing performance.
