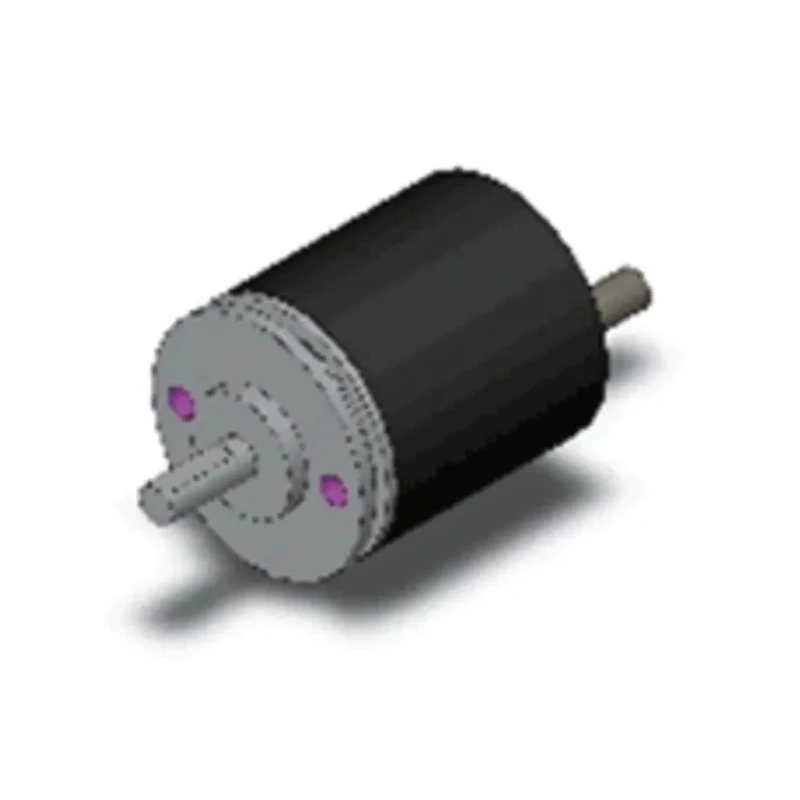

Omron Incremental Encoder 24V DC, Solid Shaft 4mm, 5000 RPM, NPN Open Collector Output E6A2-CW5C 100P/R 0.5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Model | E6A2-CW5C 100P/R 0.5M |
| IP Rating | IP50 |
| Mount Type | Chassis |
| Series | E6A2 |
| Overall Width | 22mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Shaft Diameter | 4mm |
| Overall height | 46.5mm |
| Switching Frequency | 30kHz |
| Shaft Type | Solid |
| Terminal type | Pre-Wired |
| Interface Type | 1 Wire |
| Pulses per Revolution | 100ppr |
| Standards/Approvals | IEC |
| Maximum Supply Voltage | 24V dc |
| Overall Depth | 25mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 5000rpm |
| Output Signal Type | NPN Open Collector |
| External diameter E6A2 | 25 mm |
| External diameter E6B2 | 40 mm |
| External diameter E6C2 | 50 mm |
| External diameter E6FA | 60 mm |
Key Features
- Provides 100 pulses per revolution for accurate measurement.
- Maximum rotational speed of 5000 RPM ensures high-speed operation.
- NPN open collector output type for reliable signal transmission.
- Features a pre-wired terminal and chassis mount type for easy installation.
- Compact dimensions with 25mm depth, 22mm width, and 46.5mm height.
- Operates within temperature range of -10°C to 55°C for versatile industrial applications.
- IP50 protection rating safeguards against dust ingress.
- Switching frequency rated at 30 kHz for rapid response.
Product Description
Omron E6A2-CW5C 100P/R 0.5M incremental encoder is designed for precise rotational displacement measurement in industrial automation and motion control systems. Operating at 24V DC, this encoder outputs 100 pulses per revolution (PPR), supporting high-resolution position tracking essential in manufacturing and processing machinery.
Its solid shaft with 4mm diameter and chassis mount type allow easy integration into existing equipment. The encoder supports up to 5000 RPM, making it suitable for high-speed applications.
Featuring an NPN open collector output signal and a pre-wired terminal, it offers reliable and straightforward connectivity. The compact design measures 25mm depth, 22mm width, and 46.5mm height while maintaining an IP50 protection level to resist dust exposure.
This Incremental Encoder operates effectively over a temperature range of -10°C to 55°C and supports a switching frequency of up to 30 kHz. Compliance with IEC standards affirms its suitability for demanding industrial environments.
The low moment of inertia minimizes mechanical load on the motor shaft, enhancing system efficiency and longevity. Ideal for use in industrial automation, robotics, HVAC systems, packaging, and manufacturing equipment where precise rotational control is critical.
Provides 100 pulses per revolution for accurate measurement. Maximum rotational speed of 5000 RPM ensures high-speed operation. NPN open collector output type for reliable signal transmission. Features a pre-wired terminal and chassis mount type for easy installation.
Compact dimensions with 25mm depth, 22mm width, and 46.5mm height. Operates within temperature range of -10°C to 55°C for versatile industrial applications. IP50 protection rating safeguards against dust ingress. Switching frequency rated at 30 kHz for rapid response.
Meets IEC standards ensuring quality and compliance. Low moment of inertia ensures minimal load impact on the system. For detailed technical documentation and additional resources, visit EnvMart to explore the comprehensive Omron encoder product line and related automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rotational speed of this incremental encoder is 5000 RPM, making it suitable for high-speed applications.
This model features an NPN open collector output signal type for reliable signal transmission.
The encoder operates effectively within a temperature range of -10°C to 55°C.
The dimensions of this unit are 25mm in depth, 22mm in width, and 46.5mm in height.
It provides 100 pulses per revolution (PPR) for accurate measurement.
This encoder features a chassis mount type for easy installation into existing equipment.
The switching frequency is rated at 30 kHz, allowing for rapid response.
The encoder has a solid shaft with a diameter of 4mm.
This model has an IP50 protection rating, which safeguards against dust ingress.
The encoder complies with IEC standards, ensuring its suitability for demanding industrial environments.
It features a pre-wired terminal type for straightforward connectivity.
This encoder is ideal for use in industrial automation, robotics, HVAC systems, packaging, and manufacturing equipment where precise rotational control is critical.
