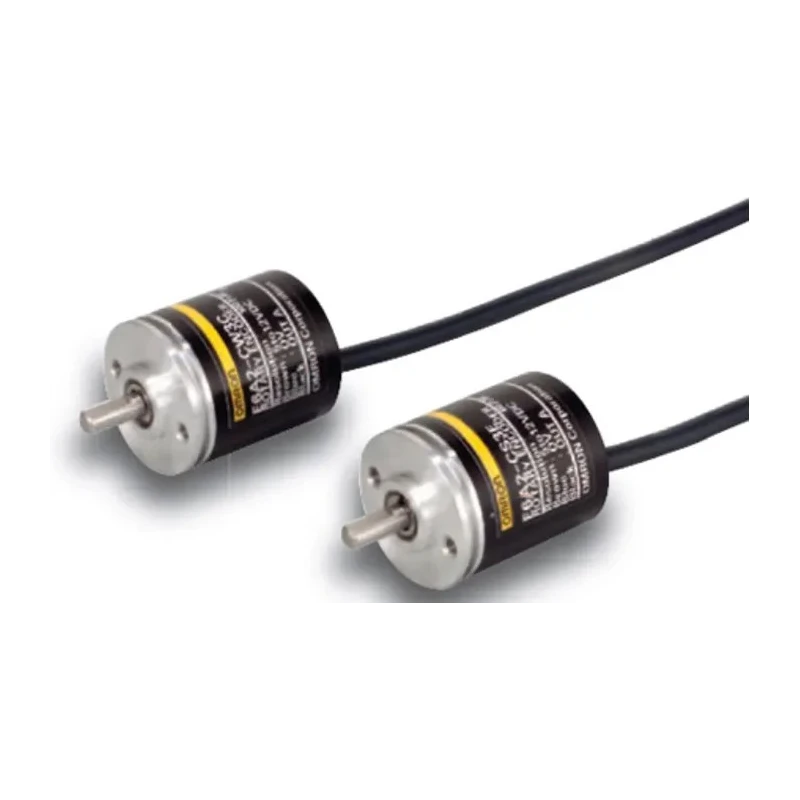

Omron Incremental Encoder, 24V DC, 100 PPR, NPN Open Collector Signal, Solid 4 mm Shaft E6A2-CS5C 100P/R 0.5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Model | E6A2-CS5C 100P/R 0.5M |
| IP Rating | IP50 |
| Mount Type | Chassis |
| Series | E6A2 |
| Overall Width | 22mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Shaft Diameter | 4mm |
| Overall height | 46.5mm |
| Switching Frequency | 30kHz |
| Shaft Type | Solid |
| Terminal type | Cable |
| Interface Type | 1 Wire |
| Pulses per Revolution | 100ppr |
| Standards/Approvals | IEC |
| Maximum Supply Voltage | 24V dc |
| Overall Depth | 25mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 5000rpm |
| Output Signal Type | NPN Open Collector |
| External diameter E6A2 | 25 mm |
| External diameter E6B2 | 40 mm |
| External diameter E6C2 | 50 mm |
| External diameter E6FA | 60 mm |
Key Features
- This incremental encoder outputs an NPN open collector signal for compatibility with various control systems.
- Features a solid shaft design with 4 mm diameter for reliable mechanical coupling.
- Operational temperature range spans from -10°C to 55°C for versatile environmental application.
- Equipped with an IP50 rating, providing basic protection against dust ingress.
- Supports a maximum shaft speed of 5000 RPM with a switching frequency of up to 30 kHz.
- Chassis mount type allows for straightforward installation in industrial equipment.
- Compact mechanical dimensions facilitate integration in tight spaces with overall depth 25 mm, height 46.5 mm, and width 22 mm.
- Designed to meet IEC standards ensuring quality and reliability for industrial automation tasks.
Product Description
Omron E6A2-CS5C 100P/R 0.5M is a high-precision incremental encoder designed for industrial automation, motion control, and signal feedback applications. Operating at 24V DC, it produces 100 pulses per revolution with an NPN open collector output signal, offering accurate and dependable position and speed monitoring.
The encoder features a solid shaft with a 4 mm diameter and a compact chassis mount design, providing easy installation and robust mechanical coupling. It functions reliably within a temperature range of -10°C to 55°C and holds an IP50 rating, suitable for environments with limited dust exposure.
This Omron incremental encoder supports operational speeds up to 5000 rpm and a switching frequency of 30 kHz, accommodating high-speed shaft rotations with minimal signal noise. Adherence to IEC standards underscores its compliance with international quality and safety benchmarks.
Ideal for applications in industrial automation systems, manufacturing machinery, robotics, and instrumentation, this encoder ensures precision measurement of rotational displacement and speed.
This Incremental Encoder outputs an NPN open collector signal for compatibility with various control systems. Features a solid shaft design with 4 mm diameter for reliable mechanical coupling. Operational temperature range spans from -10°C to 55°C for versatile environmental application.
Equipped with an IP50 rating, providing basic protection against dust ingress. Supports a maximum shaft speed of 5000 RPM with a switching frequency of up to 30 kHz. Chassis mount type allows for straightforward installation in industrial equipment.
Compact mechanical dimensions facilitate integration in tight spaces with overall depth 25 mm, height 46.5 mm, and width 22 mm. Designed to meet IEC standards ensuring quality and reliability for industrial automation tasks.
Explore additional Omron sensors and automation products in the EnvMart catalog to enhance your industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model outputs an NPN open collector signal, making it compatible with various control systems.
The maximum operating temperature for this encoder is 55°C.
It supports a maximum shaft speed of 5000 RPM.
The encoder has a switching frequency of up to 30 kHz.
The overall dimensions are 22 mm in width, 46.5 mm in height, and 25 mm in depth.
The shaft diameter is 4 mm, designed for reliable mechanical coupling.
It features a chassis mount type for straightforward installation in industrial equipment.
The encoder has an IP50 rating, providing basic protection against dust ingress.
This model produces 100 pulses per revolution (PPR).
It is designed to meet IEC standards, ensuring compliance with international quality benchmarks.
The minimum operating temperature is -10°C.
The terminal type is cable, facilitating easy connections.
