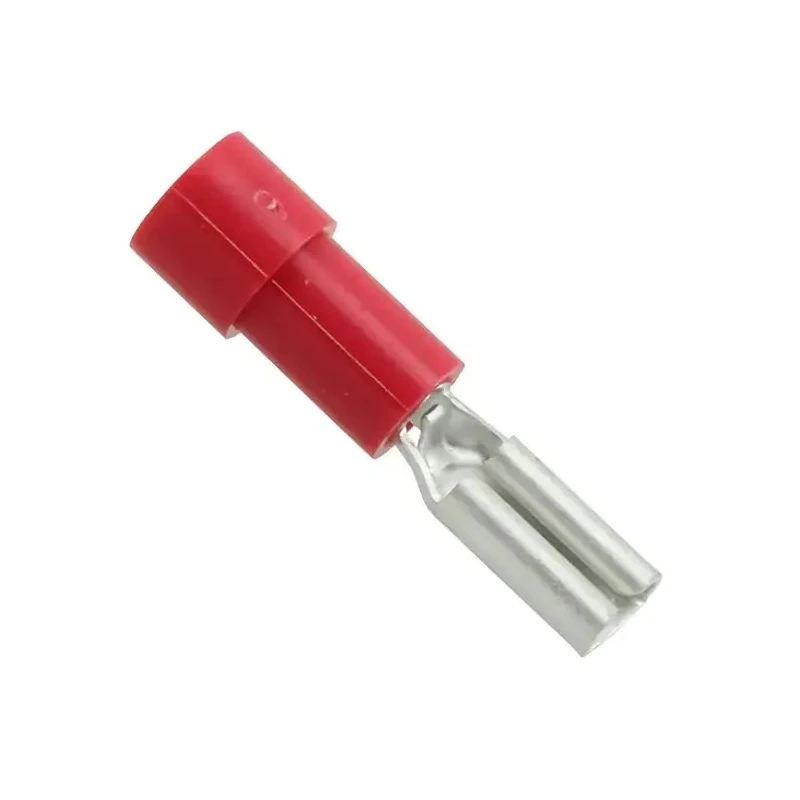

Molex Red Insulated Female Spade Connector Crimp Tab Size 2.79 x 0.51 mm 18 to 22 AWG 190170001

Name: Molex Red Insulated Female Spade Connector Crimp Tab Size 2.79 x 0.51 mm 18 to 22 AWG 190170001
Brand: Molex
SKU: 286110
Price: 0.26 USD
Availability: InStock



Category Spade Connector Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Colour	Red
Orientation	Straight
Gender	Female
Insulation	Insulated
Contact Material	Brass
Series	19017
Termination Type	Crimp
Insulation Material	Polyvinyl Chloride
Contact Plating	Tin
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Tab Width	2.79mm
Tab Thickness	0.51mm
Tab Size	2.79 x 0.51 mm

Key Features

Designed with insulated polyvinyl chloride for safety.
Features a female brass contact plated with tin for corrosion resistance.
Compatible with 18 to 22 AWG wire sizes for versatile applications.
Straight orientation allows easy installation in wiring harnesses.
Tab width of 2.79 mm and thickness of 0.51 mm ensures reliable connection.
Suitable for use in industrial electrical and electronic systems.
Manufactured in the United States maintaining high-quality standards.

Product Description

Molex 190170001 is a red insulated female spade connector designed for crimp termination of wires ranging from 18 to 22 AWG. It features a straight orientation with a tab size of 2.79 x 0.51 mm that ensures a secure and reliable connection for electrical and electronic applications.

The connector utilizes brass contact material plated with tin, providing excellent conductivity and corrosion resistance. Its insulation is made from polyvinyl chloride, enhancing safety and durability in use.

This component is ideal for applications requiring quick disconnects in wiring harnesses and is compatible with a broad range of wire sizes, ensuring versatile use in industrial, manufacturing, electronic, and power distribution systems.

Insulated polyvinyl chloride enhances electrical safety. Brass contact material with tin plating ensures corrosion resistance. Compatible with 18 to 22 AWG wire sizes for flexibility. Straight orientation for simple integration.

2.79 mm width and 0.51 mm thickness tab specifications. Suitable for industrial, manufacturing, and electronic system use. Manufactured under high-quality standards in the United States. Explore a wide range of Spade Connectors and related electrical components in EnvMart’s extensive catalog for your industrial and commercial needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is compatible with wire sizes ranging from 18 to 22 AWG, allowing for versatile applications in various electrical systems.

The connector features a brass contact material plated with tin for corrosion resistance, and its insulation is made from polyvinyl chloride for enhanced safety.

The tab width is 2.79 mm and the thickness is 0.51 mm, ensuring a secure connection.

It utilizes a crimp termination type, which is suitable for secure connections in wiring applications.

This model has a straight orientation, which facilitates easy installation in wiring harnesses.

It is manufactured in the United States, adhering to high-quality standards.

It is suitable for use in industrial, manufacturing, electronic, and power distribution systems that require quick disconnects in wiring harnesses.

The connector is red in color, which is often used for easy identification in wiring systems.

This connector is female, designed for use with male counterparts in electrical connections.

The insulation is made from polyvinyl chloride, enhancing electrical safety and durability during use.

This model belongs to the 19017 series of connectors, which is known for its reliability in electrical applications.

Its primary function is to provide a reliable and secure electrical connection in various applications, particularly where quick disconnects are needed.
