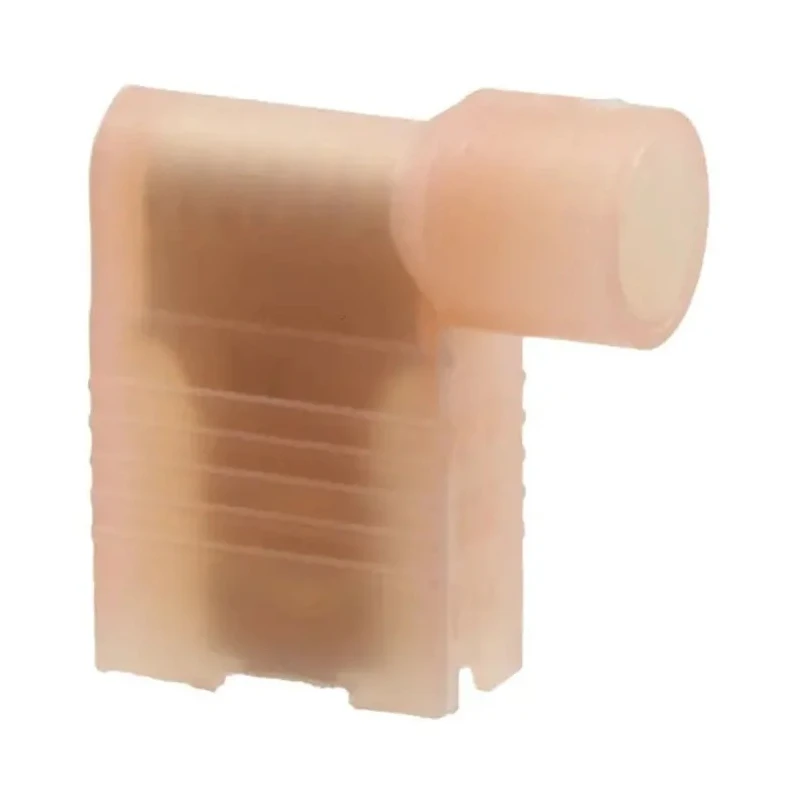

Molex Red Insulated Female Spade Connector Crimp 4.75 x 0.81 mm Tab Size 22 AWG to 18 AWG 190070015
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Red |
| Orientation | Flag |
| Gender | Female |
| Insulation | Insulated |
| Contact Material | Brass |
| Series | 19007 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Standards/Approvals | CSA LR18689, UL E79133 |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Tab Width | 4.75mm |
| Tab Thickness | 0.81mm |
| Tab Size | 4.75 x 0.81 mm |
Key Features
- Red insulated design ensures safe and secure connections.
- Female spade connector with flag orientation suitable for quick disconnect applications.
- Tab size of 4.75 x 0.81 mm fits standard male terminals.
- Constructed from brass contact material with tin plating for durability and corrosion resistance.
- Insulation made from nylon enhances mechanical durability and electrical insulation.
- Compatible with wire sizes ranging from 22 AWG minimum to 18 AWG maximum.
- Meets CSA LR18689 and UL E79133 standards ensuring safety and compliance.
- Series 19007 designed for dependable industrial and electrical use.
Product Description
Molex 190070015 Red Insulated Female Spade Connector is a high-quality crimp terminal designed for use with wire sizes from 22 AWG to 18 AWG. This flag-style quick disconnect terminal features a female connection type with tab dimensions of 4.75 x 0.81 mm, making it compatible with standard male tabs in various electrical and electronic applications.
The connector's red nylon insulation offers excellent electrical insulation and mechanical strength, ensuring durability and safety in usage. Its brass contact material, plated with tin, provides superior corrosion resistance and reliable conductivity suitable for industrial, manufacturing, HVAC, and general electrical wiring sectors.
This product complies with CSA LR18689 and UL E79133 certification standards, underlining its safety and performance qualifications in commercial and professional environments. The series 19007 ensures consistency in design and compatibility with a broad range of wiring setups.
The connector is ideal in applications where reliable, quick disconnect connections are required, such as control panels, wiring harnesses, and electrical assemblies in various industrial machines and equipment. Its flag orientation supports installations in tight spaces by allowing easier cable routing and connection management.
Red insulated design ensures safe and secure connections. Female Spade Connector with flag orientation suitable for quick disconnect applications. Tab size of 4.75 x 0.81 mm fits standard male terminals. Constructed from brass contact material with tin plating for durability and corrosion resistance.
Insulation made from nylon enhances mechanical durability and electrical insulation. Compatible with wire sizes ranging from 22 AWG minimum to 18 AWG maximum. Meets CSA LR18689 and UL E79133 standards ensuring safety and compliance.
Series 19007 designed for dependable industrial and electrical use. Country of origin is United States guaranteeing manufacturing quality. Explore the entire range of Molex connectors suitable for electronics, electrical repair, and manufacturing with EnvMart’s comprehensive catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this connector is 4.75 x 0.81 mm, making it compatible with standard male terminals.
It is compatible with wire sizes ranging from 22 AWG minimum to 18 AWG maximum.
The connector is constructed from brass contact material with tin plating, and the insulation is made from nylon.
This product meets CSA LR18689 and UL E79133 standards, ensuring safety and compliance.
This model features a flag orientation, which is suitable for quick disconnect applications.
It is ideal for applications such as control panels, wiring harnesses, and electrical assemblies in various industrial machines and equipment.
The connector is manufactured in the United States, ensuring quality.
This connector is a female spade connector.
It uses a crimp termination type for secure connections.
The connector has a red insulated design, which ensures safe and secure connections.
The contact material is brass, which is plated with tin for corrosion resistance.
This connector is part of the Molex series 19007, designed for dependable industrial and electrical use.
