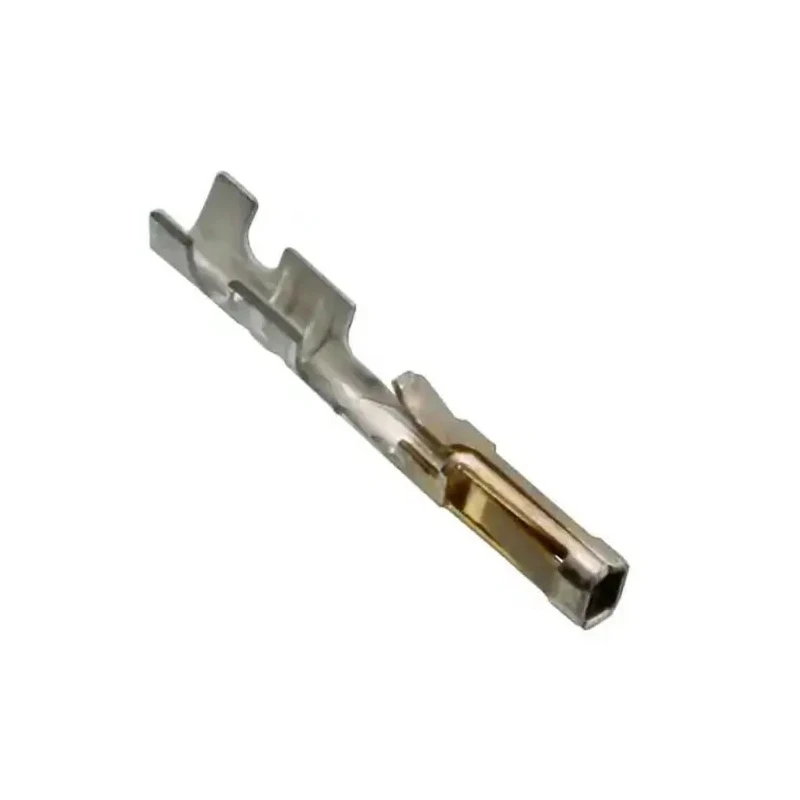

Molex 70058 Series Female Crimp Terminal 36 AWG 450mA Gold Plated Contact 16020074
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 450mA |
| Model | 16020074 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Automotive Connector |
| Standards/Approvals | REACH, EU RoHS, EU ELV, CHINA RoHS |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.0127mm² |
| Maximum Wire Size mm² | 0.032mm² |
| Minimum Wire Size AWG | 36AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with phosphor bronze contact material for durability.
- Selective gold plating ensures excellent conductivity and corrosion resistance.
- Designed for a wire size range of 36 AWG (0.0127mm² minimum to 0.032mm² maximum).
- Crimp termination type facilitates secure wire connections.
- Operates reliably between -40°C and 105°C temperature range.
- Maximum contact resistance of 10mΩ for efficient electrical performance.
- Complies with REACH, EU RoHS, EU ELV, and CHINA RoHS standards.
- Manufactured in the United States ensuring quality and consistency.
Product Description
Molex 16020074 70058 Series female crimp terminal is engineered for use with automotive connectors, supporting wire sizes of 36 AWG with a current rating of 450mA. This crimp terminal features phosphor bronze contact material and selective gold plating to deliver outstanding electrical conductivity and corrosion protection. It is specifically designed for secure crimp termination and offers a maximum contact resistance of 10mΩ, ensuring reliable signal integrity and low power loss.
The terminal accommodates wire sizes from 0.0127mm² to 0.032mm² and supports a maximum wire insulation diameter of 0.64mm. Operating temperature spans from -40°C up to 105°C, suitable for demanding environmental conditions, making it ideal for automotive and industrial applications. This component complies with multiple international standards including REACH, EU RoHS, EU ELV, and CHINA RoHS certifications, ensuring environmental and safety compliance.
The product packaging includes reel packaging for efficient handling and installation in manufacturing or repair environments. Manufactured in the United States, this terminal guarantees a high level of quality control. The 0.38μm selective gold plating on contact surfaces enhances mating performance, while the termination plating of 1.905μm secures a robust wire connection.
Constructed using phosphor bronze for high mechanical strength and conductivity. Selectively gold plated contacts improve corrosion resistance and electrical performance. Suitable for wire sizes 36 AWG allowing precise crimping in compact connectors.
Designed for automotive connectors requiring high current reliability. Endures operating temperatures from -40°C to 105°C for versatile applications. Provides low contact resistance with a maximum of 10mΩ for efficiency.
Certified to international environmental standards ensuring compliance. Reel packaging facilitates ease of use in automated assembly processes.
This female Crimp Terminal suits industrial, automotive, and electronics manufacturing contexts, contributing to robust and durable electrical connections. For exploring comprehensive connector and terminal solutions, browse the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this female crimp terminal is 450mA.
It operates reliably between -40°C and 105°C, making it suitable for various environmental conditions.
This terminal is designed for wire sizes ranging from 36 AWG (0.0127mm² minimum to 0.032mm² maximum).
The contacts are constructed from phosphor bronze, which provides high mechanical strength and conductivity.
It features selective gold plating, which enhances electrical conductivity and corrosion resistance.
The maximum contact resistance is 10mΩ, ensuring efficient electrical performance.
This terminal complies with REACH, EU RoHS, EU ELV, and CHINA RoHS standards.
The termination type is crimp, facilitating secure wire connections.
The maximum wire insulation diameter supported is 0.64mm.
This female crimp terminal is manufactured in the United States.
It is suitable for automotive connectors and can be used in industrial and electronics manufacturing contexts.
The product is packaged in reel packaging, which facilitates efficient handling and installation in manufacturing or repair environments.
