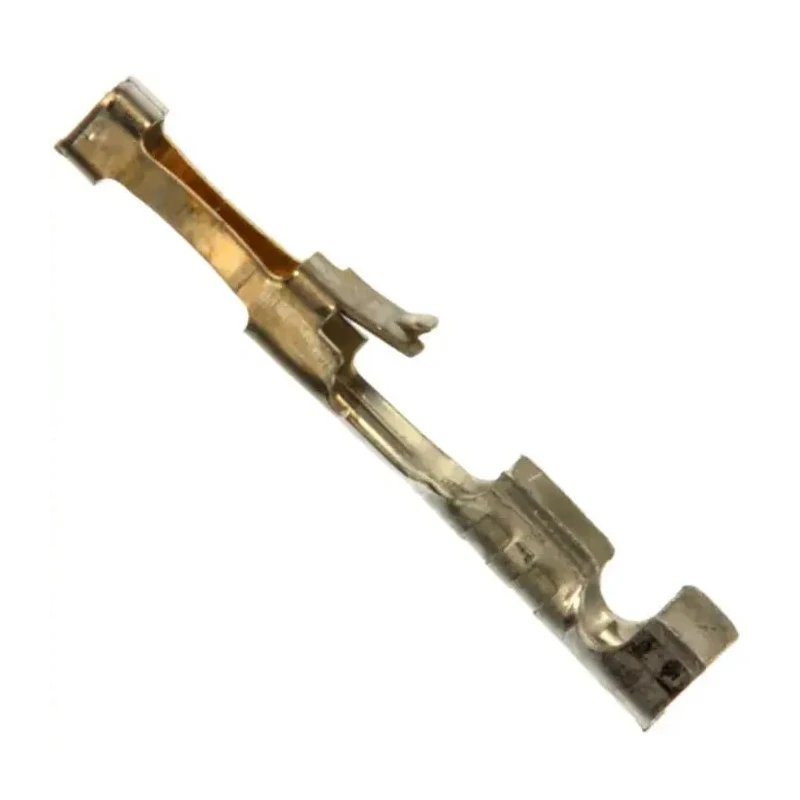

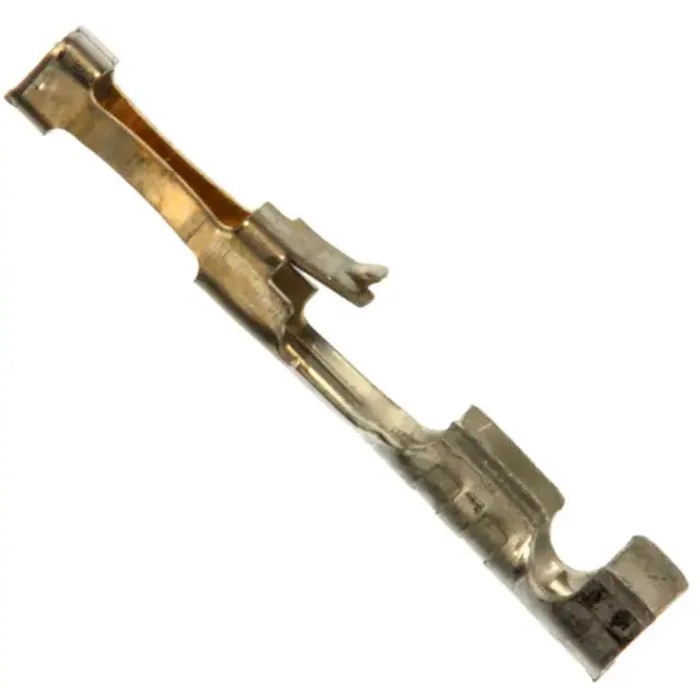

Molex 71851 Series Female Crimp Terminal, Gold Plated Phosphor Bronze Contact, 30 AWG Wire Size 16021117
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Model | 16021117 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 71851 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Automotive Connector |
| Standards/Approvals | EU RoHS China RoHS Compliant |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.25mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Constructed with phosphor bronze contact material for durability.
- Contacts are selectively plated with 0.76 μm gold ensuring low contact resistance.
- Compatible with 24 to 30 AWG wire sizes with a maximum insulation diameter of 1.52 mm.
- Designed for automotive connector applications within the 71851 series.
- Operates reliably between -40°C and 105°C temperature range.
- Complies with EU RoHS and China RoHS environmental standards.
- Termination type is crimp for secure wire connections.
- Maximum contact resistance of 15 milliohms ensures efficient conductivity.
Product Description
Molex 16021117 is a female crimp terminal designed for precise and reliable wire termination within automotive connectors. This terminal belongs to the 71851 series and features phosphor bronze contact material with selective 0.76μm gold plating, offering excellent corrosion resistance and low contact resistance, critical for maintaining signal integrity in demanding electrical environments.
The terminal supports wire sizes ranging from 24 to 30 AWG (minimum 30 AWG), accommodating wires with a maximum insulation diameter of 1.52 mm. Its crimp termination method ensures a secure mechanical and electrical joint.
This component is suitable for use in automotive electrical systems where temperature resilience from -40°C to 105°C is necessary. Compliance with EU RoHS and China RoHS confirms its adherence to hazardous substance restrictions, supporting environmentally conscious manufacturing.
Manufactured in the United States, this female crimp terminal is built to meet stringent performance standards with a maximum contact resistance of 15 milliohms, ensuring minimal energy loss during operation.
Constructed with durable phosphor bronze contact material. Selective gold plating of 0.76 μm on contacts to reduce corrosion and resistance. Suitable for wire sizes 24 to 30 AWG with maximum insulation diameter of 1.52 mm.
Operating temperature range from -40°C to 105°C for harsh environments. RoHS compliant for EU and China environmental standards. Efficient crimp termination for secure wire connections. Low maximum contact resistance of 15 mΩ for high conductivity.
This female Crimp Terminal is ideal for applications in industrial electronics, automotive wiring, and electronic connector assemblies, supporting reliable electrical connections under various environmental conditions. For related components and detailed engineering data, explore the extensive Crimp Contacts category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this female crimp terminal is 105°C.
This terminal is compatible with wire sizes ranging from 24 to 30 AWG, with a maximum insulation diameter of 1.52 mm.
The contacts of this crimp terminal are made from phosphor bronze and are selectively plated with 0.76 μm gold.
The minimum operating temperature for this female crimp terminal is -40°C.
The maximum contact resistance of this crimp terminal is 15 milliohms.
This terminal uses a crimp termination type for secure wire connections.
Yes, it complies with EU RoHS and China RoHS environmental standards.
This female crimp terminal is manufactured in the United States.
This terminal is designed for use in automotive connectors and applications in industrial electronics.
This crimp terminal is a female type.
This terminal belongs to the 71851 series.
The minimum wire size for this terminal is 0.05 mm².
