Crydom 1 Series Solid State Relay, Panel Mount, 90A Load Current, 280Vrms Load Voltage, 32V Control D2490PG

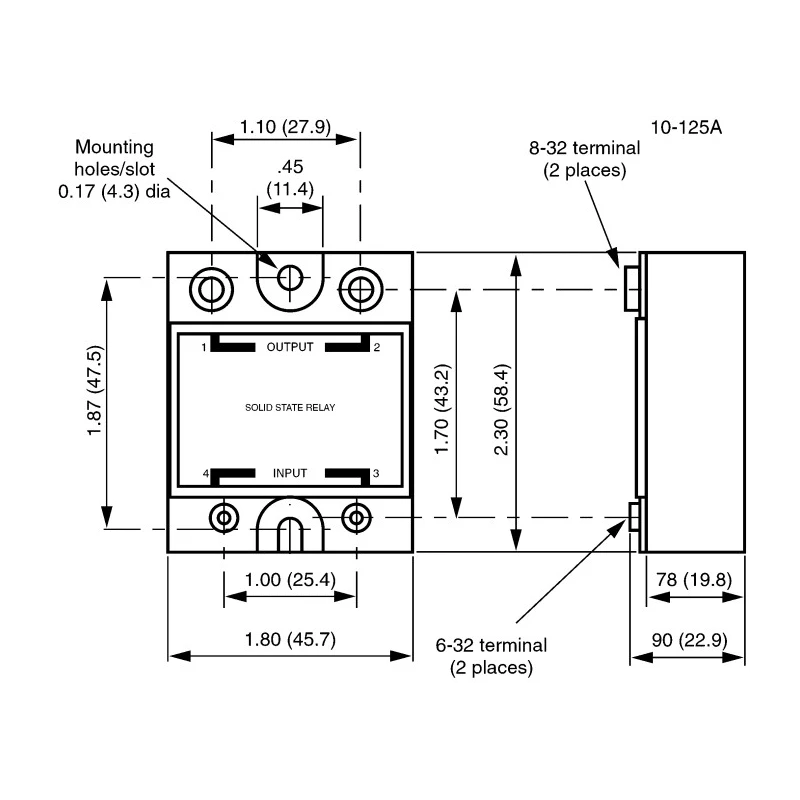

The Crydom D2490PG 1 Series Solid State Relay is engineered for industrial and automation applications demanding reliable and efficient AC load switching. It is designed to handle a maximum load current of 90 amperes and load voltages up to 280Vrms, making it suitable for control panels requiring robust power switching capabilities. The relay is optimized for panel mounting with screw terminals, facilitating easy installation and secure electrical connections. It operates with a control input voltage ranging from 3V dc minimum to 32V maximum, complying with modern microprocessor-based control circuits.

This solid state relay features zero cross switching technology, significantly reducing electrical noise and extending the lifespan of both the relay and connected equipment. It incorporates built-in overvoltage and transient protection, improving operational reliability under challenging electrical environments. The unit’s low input-to-output capacitance of 8pF ensures high signal integrity and isolation. Designed for harsh operating conditions, it supports temperature ranges from -40°C to +80°C, suitable for diverse industrial and commercial settings.

The D2490PG model includes a status indicating LED, providing visual confirmation of relay operation. It complies with several safety and environmental standards including CSA, UR recognition, and RoHS directives, ensuring the product meets global compliance requirements. The solid state relay’s SCR output type supports effective switching of AC loads with minimal leakage current measured at 10mA in off state.

This relay is ideal for use in electrical automation, HVAC systems, manufacturing process controls, water treatment plants, and other industrial applications needing reliable ac power switching. With its rugged design and advanced protection features, it enhances system uptime and reduces maintenance needs. Package contents typically include one panel mount solid state relay unit.

Explore the full Crydom 1 Series range and related control components at EnvMart to meet all your relay and signal conditioning requirements. Our comprehensive selection ensures optimal solutions for various industrial automation challenges.

Delivers a maximum load current of 90 amperes for heavy-duty switching. Supports a maximum load voltage of 280Vrms suited for AC loads. Features zero cross switching function to reduce electrical noise and arcing. Panel mount type with screw terminals for robust installation.

Capacitance between input and output is low at 8pF to maintain isolation. Operates reliably between -40°C and 80°C temperature range. Equipped with an output type SCR to handle AC power switching. Meets industry standards CSA, UR, and RoHS for safety and compliance.

Built-in overvoltage and transient protection enhances device durability. Status indicating LED provides clear operation feedback. Choose EnvMart for trusted industrial automation products including Crydom Solid State Relays.
