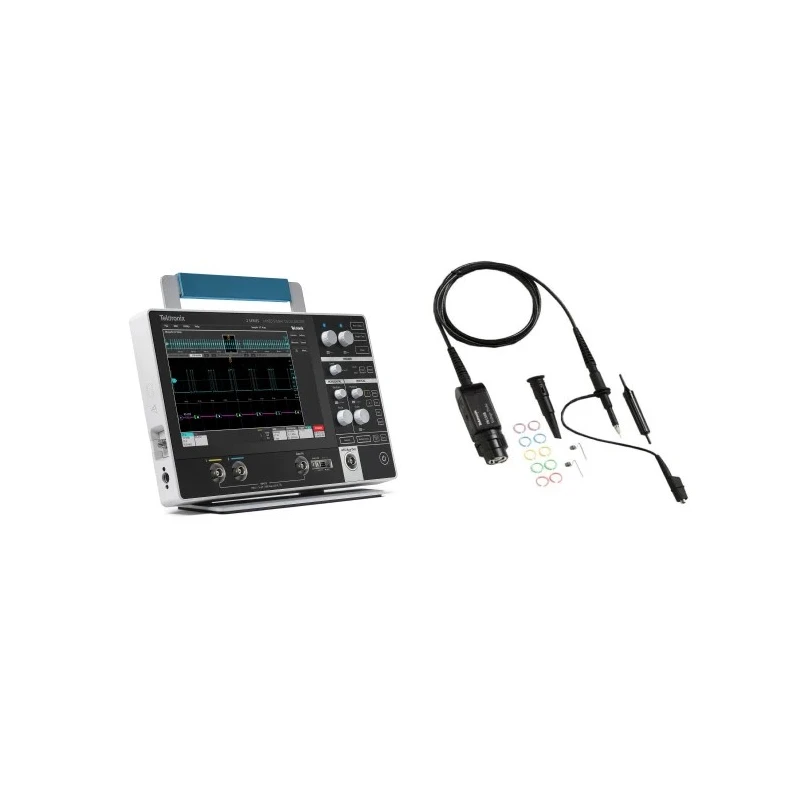

Tektronix MSO2 Series 500 MHz Portable Mixed Signal Oscilloscope, 2 Channels
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Capacitive Touch Display |
| Brand | Tektronix |
| Battery Life | 8h |
| Battery type | Lithium-ion |
| Height | 210mm |
| Model | MSO2 |
| Depth | 40.4mm |
| Width | 344mm |
| Bandwidth | 500MHz |
| Series | MSO2 |
| Screen Size | 10.1 in |
| Number Of Channels | 2 |
| Vertical Resolution | 8 bit |
| Interface Type | CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB |
| Oscilloscope Type | Portable |
| Digital Channels | 16 |
| Standards/Approvals | RoHS, CE, UL |
| Safety Category Level | CAT II |
| Oscilloscope Form | Mixed Signal |
| Lightweight and Portable | Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs) |
| Award Winning Touchscreen UI | Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function |
| Compact | Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm |
| Battery Powered | Optional battery pack supports two hot-swappable batteries for hours of unplugged testing |
| Bench Space Saver | VESA mount compatible with many off-the shelf VESA accessories |
| Built-in VNC Server | View and control your oscilloscope from PC, Tablet or Phone |
| Optional Extras Includes | Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below) |
Key Features
- Provides 500 MHz bandwidth and 2.5 GS/s sample rate for precise signal analysis.
- Equipped with 2 analog channels plus optional 16 digital channels for mixed signal applications.
- Features a large 10.1-inch capacitive touch display for intuitive operation.
- Battery powered with optional hot-swappable lithium-ion batteries for up to 8 hours of portable use.
- Supports wide interface connectivity including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB.
- Compact and lightweight design with instrument dimensions 210mm x 344mm x 40.4mm and weight approx 1.8 kg without battery pack.
- Includes TPP0200 200 MHz, 10x probe per channel, instrument stand, external power supply, and calibration certificate.
- Highly suitable for industrial, laboratory, and field applications with CAT II safety rating.
Product Description

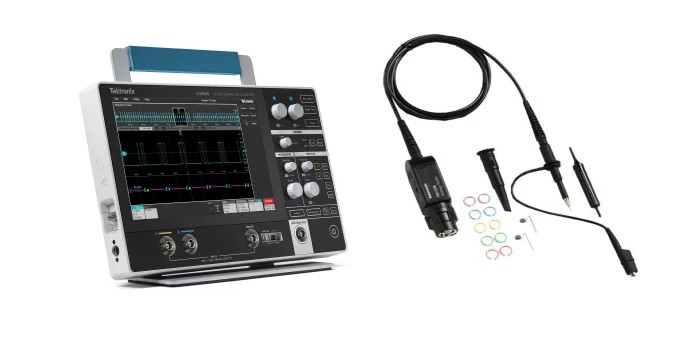

Tektronix MSO2 Series MSO22 2-BW-500 + MSO22 2-P6139B is a 500 MHz portable mixed signal oscilloscope with 2 analog channels designed for precise electronic debugging and testing.
This unit offers a 10.1-inch color capacitive touchscreen display with a highly intuitive user interface tailored for ease of use and efficient workflow. The instrument delivers a bandwidth of 500 MHz and up to 2.5 GS/s sample rate, enabling accurate capture and analysis of complex signals.
The MSO2 Series includes versatile interface support encompassing CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB buses, facilitating comprehensive signal monitoring and protocol decoding within a compact form factor measuring 210mm height, 344mm width, and 40.4mm depth. Its lightweight design (~1.8 kg without battery) and optional lithium-ion battery pack supporting up to 8 hours of operation ensure excellent portability for field and bench work.
The scope is compatible with various optional features such as 16 digital channel MSO, 50 MHz arbitrary function generator, 4-bit digital pattern generator, and advanced triggers.
Standard accessories include one TPP0200 200 MHz, 10x probe per channel, instrument stand, external power supply, embedded help system, multilingual installation and safety manual, and a calibration certificate traceable to national metrology standards.
500 MHz bandwidth and 2.5 GS/s sample rate enable high fidelity signal analysis. Two analog channels with optional 16 digital channels for mixed signal testing. Large 10.1 inch touchscreen for ease of operation and viewing.
Lithium-ion battery option provides up to 8 hours of untethered use. Includes essential accessories for immediate deployment. VESA mount compatibility allows flexible workspace arrangements. Built-in VNC server facilitates remote viewing and control via PC or mobile devices.
Lightweight and compact design simplifies transport and storage. Suitable for industrial, laboratory, manufacturing, and field applications.
The Tektronix MSO2 Series oscilloscope combines portability, advanced measurement capabilities, and flexible connectivity, making it an ideal instrument for engineers and technicians requiring dependable mixed signal analysis. Its battery-powered operation, intuitive touchscreen UI, and robust feature set enhance productivity in various environments including industrial maintenance, research, and product development.
Explore more high-performance Oscilloscopes and test instruments in our measuring & testing instruments category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a bandwidth of 500 MHz and a sample rate of up to 2.5 GS/s for precise signal analysis.
This model features 2 analog channels and can be equipped with an optional 16 digital channels for mixed signal applications.
It supports a wide range of interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB.
It features a 10.1-inch capacitive touch display that provides an intuitive user interface.
The dimensions are 210 mm in height, 344 mm in width, and 40.4 mm in depth, with a weight of approximately 1.8 kg without the battery pack.
Included accessories are one TPP0200 200 MHz, 10x probe per channel, an instrument stand, an external power supply, and a calibration certificate.
Yes, its lightweight design and battery-powered operation make it suitable for industrial, laboratory, and field applications.
It has a CAT II safety rating and complies with RoHS, CE, and UL standards.
Yes, it is VESA mount compatible, allowing for flexible workspace arrangements.
Optional features include a 50 MHz arbitrary function generator, a 4-bit digital pattern generator, and additional probes for enhanced functionality.
The vertical resolution of this oscilloscope is 8 bits.
