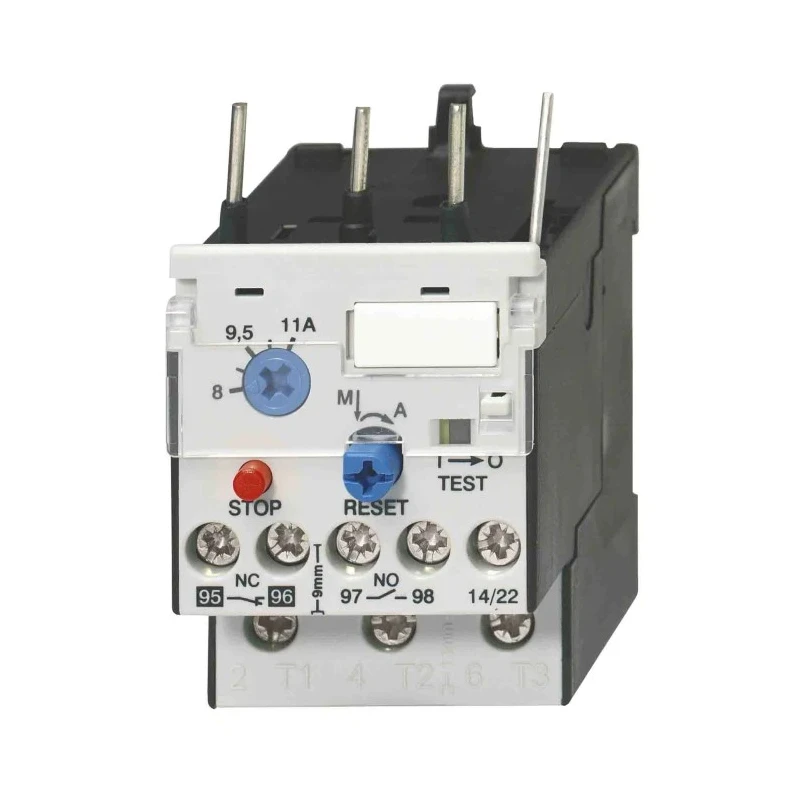

Omron Thermal Overload Relay 1 NO/1 NC, 10A Full Load Current, 44.3 kW Power Rating, 690V Control Voltage, 2-Pole J7TKN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Length | 126.5mm |
| Model | J7TKN |
| Depth | 70mm |
| Width | 45mm |
| Mount Type | Direct |
| Series | J7TKN |
| Power Rating | 44.3kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Contact Voltage | 690V |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Pole and Throw Configuration | 2P |
| Control Voltage | 690V |
| FLC Motor Rating | 10A |
| Adjustable Current Range | 13 to 18 A |
Key Features
- Provides adjustable protection for three-phase motors across multiple ratings.
- Features one normally open and one normally closed contact for signalling and control.
- Includes automatic and manual reset methods for flexible operation.
- Supports control voltage and contact voltage up to 690V in a 2-pole configuration.
- Operates reliably within ambient temperatures from -25°C to 60°C.
- Direct mounting facilitates easy integration with contactors or mounting rails.
- Complies with EN/IEC 60947-4-1, IEC 60947-4-1, UL, and VDE 0660 standards.
Product Description
Omron J7TKN Thermal Overload Relay is engineered for industrial and manufacturing applications requiring reliable motor protection. The relay supports motors up to 44.3 kW with a full load current of 10A and operates at a control and contact voltage of 690V.
This model features an adjustable current range from 13 to 18A, allowing it to fit various motor ratings with precise overload sensing through its 1 normally open and 1 normally closed contact configuration. The 2-pole design enables compact and effective circuit interruption suitable for control panels and automation racks.
Designed for direct mounting, the relay ensures easy installation on contactors or mounting rails. Its robust construction allows stable operation over a wide ambient temperature range from -25°C to 60°C, making it suitable for diverse industrial environments such as cold storage and heated plant rooms.
The J7TKN series includes automatic and manual reset options, providing flexibility in restart strategies after motor trip events. It meets rigorous industry standards including EN/IEC 60947-4-1, IEC 60947-4-1, UL, and VDE 0660, ensuring compatibility with recognized control gear and compliance with safety requirements.
Adjustable 13 - 18A current range for versatile motor protection. 1 NO/1 NC contact arrangement for versatile signalling and control. Automatic and manual reset methods for operational flexibility. 690V control and contact voltage rating for high-voltage applications.
2-pole configuration designed for compact installation. Wide operating temperature range: -25°C to 60°C. Direct mounting for ease of installation in control panels. Certified to EN/IEC 60947-4-1, UL, and VDE standards.
This thermal overload relay is ideal for industrial motor protection applications, including machinery control panels operating at 690V with motors rated up to 44.3 kW. It ensures effective overload detection and circuit interruption, contributing to equipment safety and operational reliability.
Browse other high-quality Thermal Overload Relays and motor protection devices in the Electronics & Electricals category at EnvMart for optimized control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum power rating of this thermal overload relay is 44.3 kW.
This model has a full load current rating of 10A.
The adjustable current range for the J7TKN relay is from 13 to 18A.
It features one normally open (NO) contact and one normally closed (NC) contact.
The control voltage rating for this relay is 690V.
The dimensions are 126.5mm in length, 70mm in depth, and 45mm in width.
It operates reliably within an ambient temperature range of -25°C to 60°C.
This relay is designed for direct mounting, facilitating easy installation on contactors or mounting rails.
It supports both automatic and manual reset methods for operational flexibility.
This model complies with EN/IEC 60947-4-1, IEC 60947-4-1, UL, and VDE 0660 standards.
The relay has a 2-pole configuration.
It is suitable for industrial motor protection applications, particularly in machinery control panels operating at 690V with motors rated up to 44.3 kW.
