Schneider Electric TeSyS LR Thermal Overload Relay 1 NO/1 NC, 5.5A - 8A F.L.C, 8A Contact Rating, 100 W, 250 V dc LR2K0314

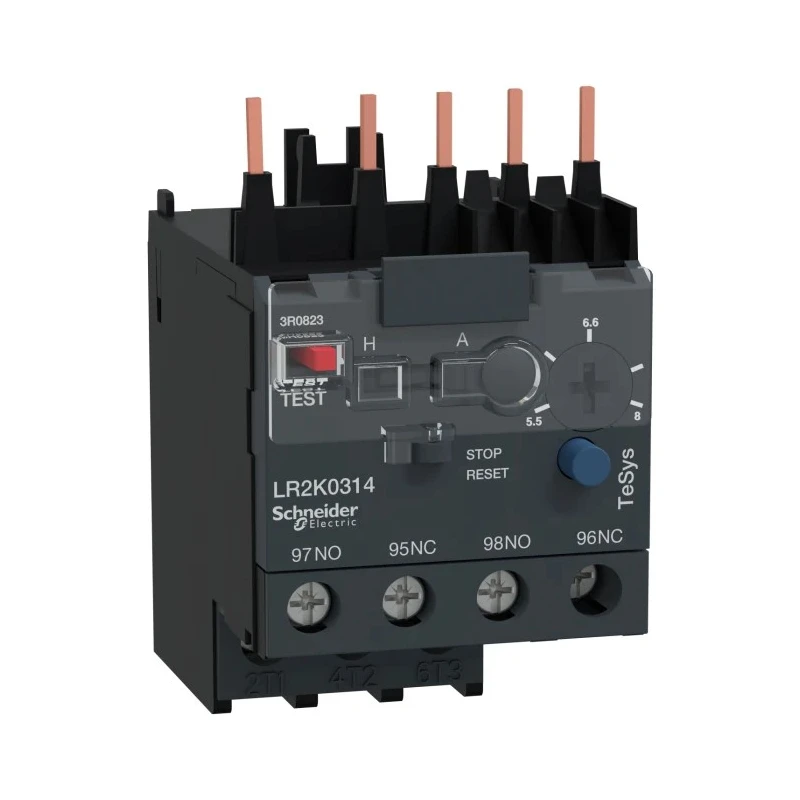

Schneider Electric LR2K0314 is a TeSyS LR Series Thermal Overload Relay designed to protect motors in industrial automation systems. This relay supports motors with a full load current (FLC) rating range from 5.5 to 8 amperes and features a durable 1 NO/1 NC contact configuration to ensure reliable operation. It offers effective thermal protection by responding to overload conditions, thereby safeguarding motors against damage and enhancing system longevity.

With a compact size - 45mm in width, 65mm in depth, and 116mm in length - it fits conveniently beneath contactors and is compatible with DIN rail mounting. The relay supports both automatic and manual reset methods, providing operational flexibility based on the application needs. Its IP2X protection rating affords safety from solid foreign objects, suitable for industrial environments.

Operating reliably within a temperature range from -20°C to +55°C, the unit is suitable for use in a variety of industrial settings including manufacturing plants, HVAC systems, and electrical control panels. It is built to conform with multiple international safety and performance standards such as UL, BS 4941, NFC 63-650, UKCA, VDE 0660, and CSA/IEC 60947, ensuring quality and regulatory compliance.

The LR2K0314 accommodates a control voltage of 250V and 690V DC, with contacts rated for 690V AC and a power rating of 100 W. It includes two auxiliary contacts to facilitate status reporting and integration with control circuits. Installation uses screw terminals for secure wiring connections.

This Thermal Overload Relay is ideal for applications requiring precise motor overload protection with a reliable, compact, and versatile device, making it an essential component in industrial motor control systems.

Features 1 normally open and 1 normally closed contact configuration. Adjustable current range from 5.5 to 8 amperes provides flexibility for various motor sizes. Automatic and manual reset options suit diverse control strategies.

Compact, DIN rail mountable design enables straightforward installation in electrical panels. IP2X protection degree enhances durability in industrial environments. Operating temperature range of -20°C to +55°C supports varied climatic conditions.

Meets international standards ensuring reliability and compliance. Rated control voltages of 250V and 690V DC accommodate various control circuits. Two auxiliary contacts facilitate advanced monitoring and control. Screw terminal connections ensure safe and easy wiring.
