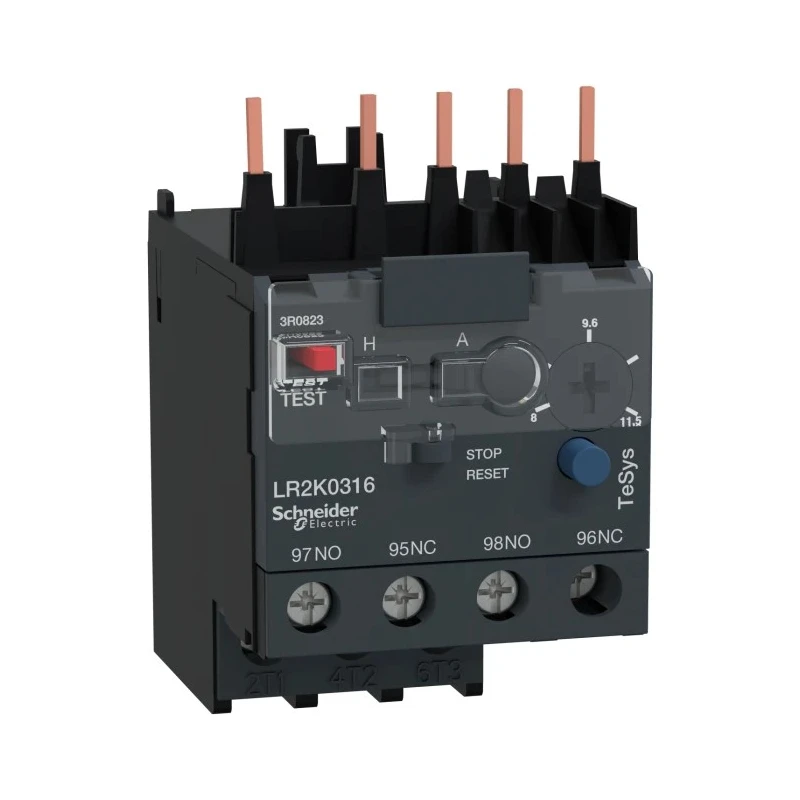

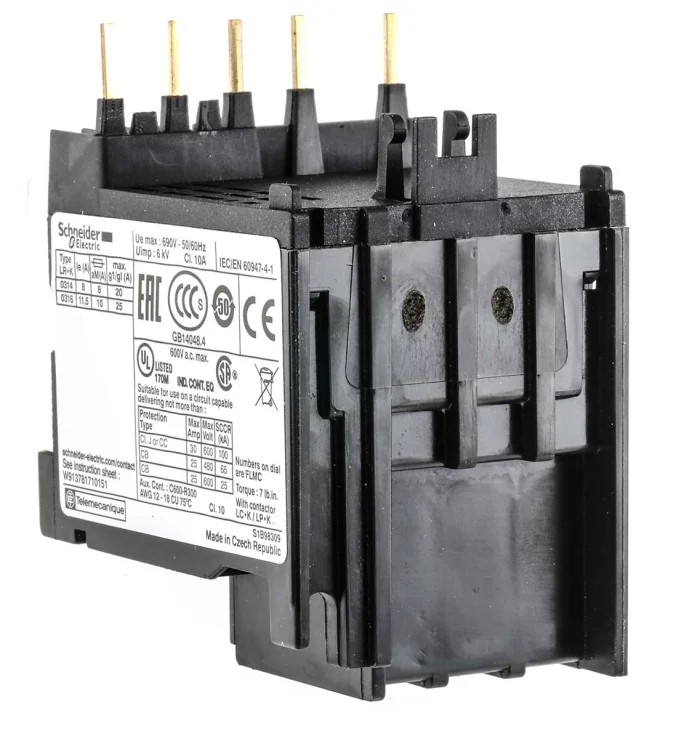

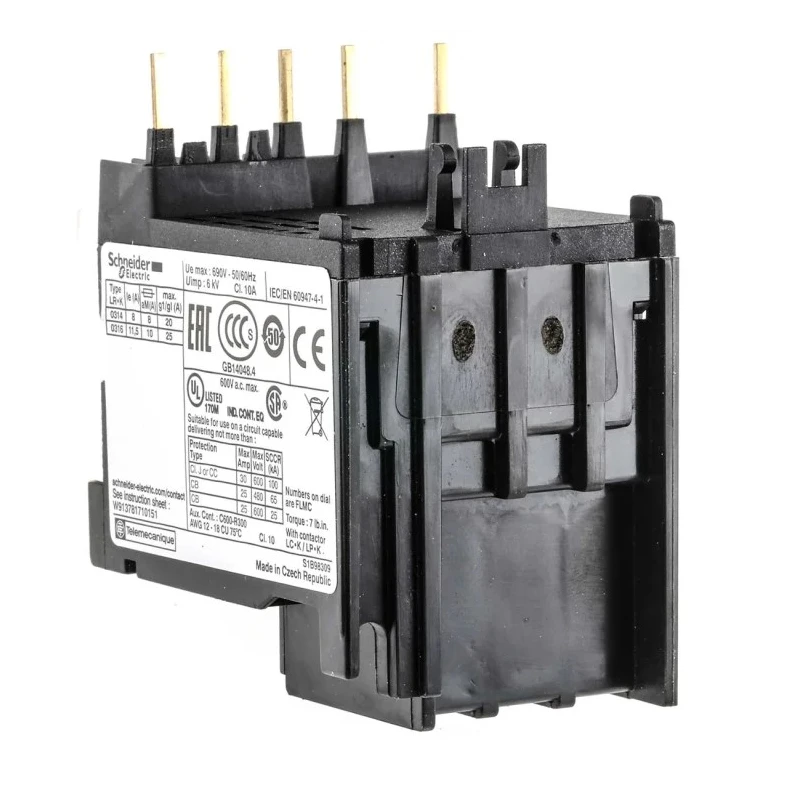

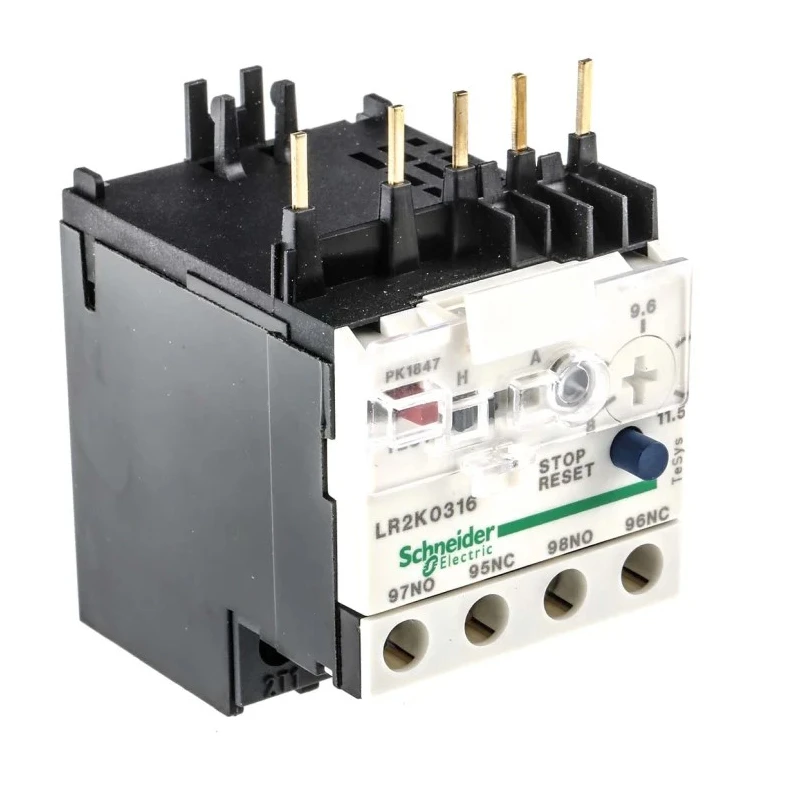

Schneider Electric TeSys Thermal Overload Relay 1 NO/1 NC 11.5A 8A FLC 100W 250V DC LR2K0316

Schneider Electric LR2K0316 TeSys Thermal Overload Relay is engineered for effective motor protection in industrial and automation control gear systems. This relay incorporates a 3-pole configuration with 1 normally open (NO) and 1 normally closed (NC) contact, rated for a contact current of 11.5A and motor full load current (FLC) adjustable from 8A to 11.5A. It is designed to prevent motor overheating by cutting off power in overload conditions, ensuring operational safety and equipment longevity.

The relay supports control voltages of 250V and 690V DC, and supply voltages of 110V and 240V AC, coupled with a power rating of 100W suitable for diverse applications. It features both automatic and manual reset capability for operational convenience, while the IP2X rating offers basic protection against solid objects, making it suitable for common industrial environments.

Compact in size, measuring 116mm length, 45mm width, and 65mm depth, with screw clamp terminals for straightforward installation and wiring. This device is compliant with UL 60947-5-1, CSA C22.2 No 60947-5-1, and EN/IEC 60947-5-1 standards, assuring reliable performance and safety.

Typical applications include motor circuits requiring dependable thermal overload protection in manufacturing, electrical panels, automation, and HVAC systems. Its compatibility with Schneider Electric contactors in the TeSys series enables seamless integration into existing electrical assemblies.

Provides adjustable thermal protection for motor safety in industrial applications. Features both automatic and manual reset methods for operational flexibility. Compact 3-pole design with screw clamp terminals for easy wiring and installation.

Operates efficiently under temperatures from -20°C to 55°C. Supports control voltages up to 690V AC and 250V DC. Rated for 100W power and 11.5A contact current rating ensuring reliable performance. Compatible with various Schneider Electric contactors within the TeSys series.

Designed with IP2X protection rating suitable for typical industrial environments. Manufactured in Czech Republic ensuring consistent quality standards.
