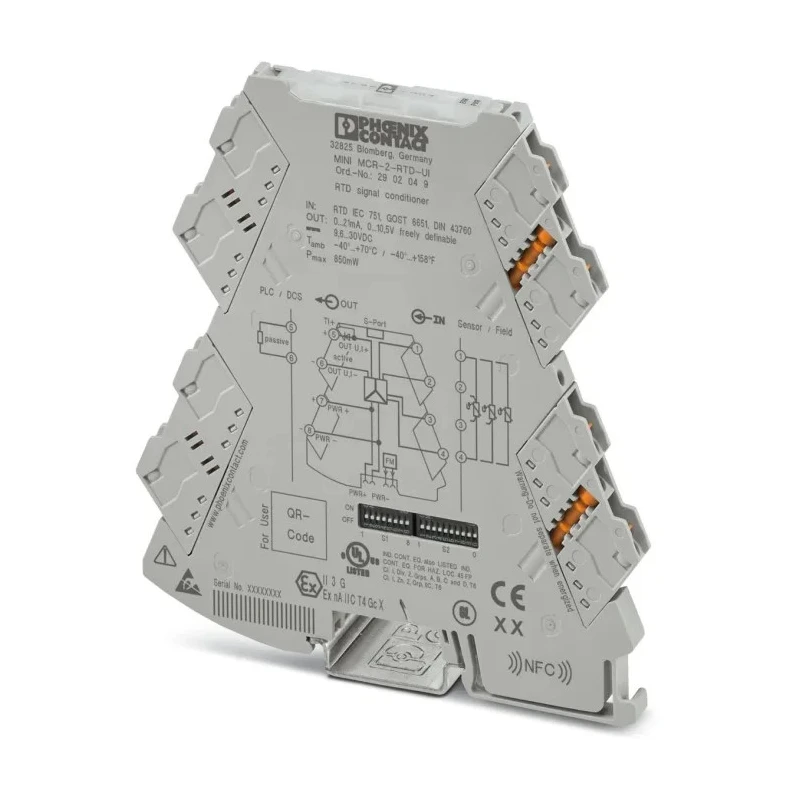

Phoenix Contact MINI MCR Series Signal Conditioner RTD Input Current/Voltage Output 30V dc 9.6V dc Supply ATEX 2902049
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | Output, 30V dc, 9 |
| Brand | Phoenix Contact |
| Model | 2902049 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | MINI MCR |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Output Range | 0 → 12.3 V, 0 → 24.6 mA |
| Input Range | -200 → +850 °C, 0 → 4000 Ω |
| Supply Voltage | 30, 9.6V dc |
| Hazardous Area Certification | ATEX, IECEx |
| Input Signal Type | RTD |
| Standards/Approvals | IEC 61010-1 |
| Output Signal Type | Current/Voltage |
| Easy startup and servicing | measures signals without disconnecting current loops and optional disconnect function |
| ABB 300 Series Isolation AmplifierBrand | ABB |
Key Features
- Suitable for temperature measurement automation in industrial and commercial settings.
- Converts resistance thermometer signals into configurable linear current or voltage output.
- Supports input ranges from -200 to +850 °C and 0 to 4000 Ω.
- Provides output ranges of 0 to 12.3 V or 0 to 24.6 mA.
- Mounts easily on DIN rail with screw terminals for secure connection.
- Operating temperature range from -40°C to +70°C ensuring reliability in harsh environments.
- IP20 rating for touch and tamper protection.
- Configuration possible via DIP switches, software, or NFC smartphone app.
Product Description
Phoenix Contact 2902049 MINI MCR Series Signal Conditioner is a high-precision temperature transducer designed for industrial and commercial automation. It accepts resistance thermometer (RTD) inputs with ranges from -200°C to +850°C and 0 to 4000 ohms, converting these signals into configurable current or voltage outputs (0 to 12.3 V or 0 to 24.6 mA) to suit various monitoring systems.
This device is suitable for diverse applications, including fault monitoring, battery and fluid temperature measurement in automotive systems, and circuit security enhancements. Its DIN rail mounting and screw terminal connection facilitate easy installation without specialized tools.
Operating within a temperature range of -40°C to +70°C and protected by an IP20 rating, it ensures robust performance in demanding environments. Certified to ATEX and IECEx standards, it is safe for deployment in hazardous areas.
Advanced configuration options are available via DIP switches, Phoenix Contact's standard software, or the MINI Analog Pro smartphone app using NFC technology, enabling flexible setup and adjustments. The compact 6.2 mm width housing allows efficient use of panel space with visible terminal points and plug-in technology for fast wiring. It supports measurement without disconnecting current loops, easing maintenance.
Suitable for temperature measurement automation in industrial and commercial settings. Converts RTD inputs into configurable linear current or voltage output. Wide input range from -200°C to +850°C and 0 to 4000 Ω. Output range options: 0 to 12.3 V or 0 to 24.6 mA.
Mount Type: DIN Rail with screw terminal connections. Operating temperature range: -40°C to +70°C, IP20 rated. ATEX and IECEx hazardous area certifications. Configurable via DIP switches, software, or NFC smartphone app.
Compact design with dimensions 6.2 x 110.5 x 120.5 mm. Ensures signal measurement without disconnecting current loops, simplifying maintenance.
This signal conditioner is ideal for integration in industrial, automation, laboratory, construction, and HVAC applications where precise temperature signal conditioning is critical. It supports enhanced safety and operational efficiency in demanding environments.
Explore the Phoenix Contact range at EnvMart for advanced signal conditioning solutions that meet industrial standards.
Explore more products in our Signal Conditioners & Isolators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It accepts resistance thermometer (RTD) inputs with a range from -200°C to +850°C and 0 to 4000 ohms.
The output ranges are configurable between 0 to 12.3 V or 0 to 24.6 mA.
It operates within a temperature range of -40°C to +70°C.
It mounts easily on DIN rail and features screw terminal connections for secure installation.
It is certified to ATEX and IECEx standards, making it suitable for deployment in hazardous environments.
The dimensions are 6.2 x 110.5 x 120.5 mm.
Configuration is possible via DIP switches, software, or a smartphone app using NFC technology.
It accepts RTD (Resistance Temperature Detector) input signals.
It has an IP20 rating, providing touch and tamper protection.
The supply voltage is 30V dc or 9.6V dc.
It measures signals without disconnecting current loops, simplifying maintenance, and includes an optional disconnect function.
It complies with IEC 61010-1 standards.
