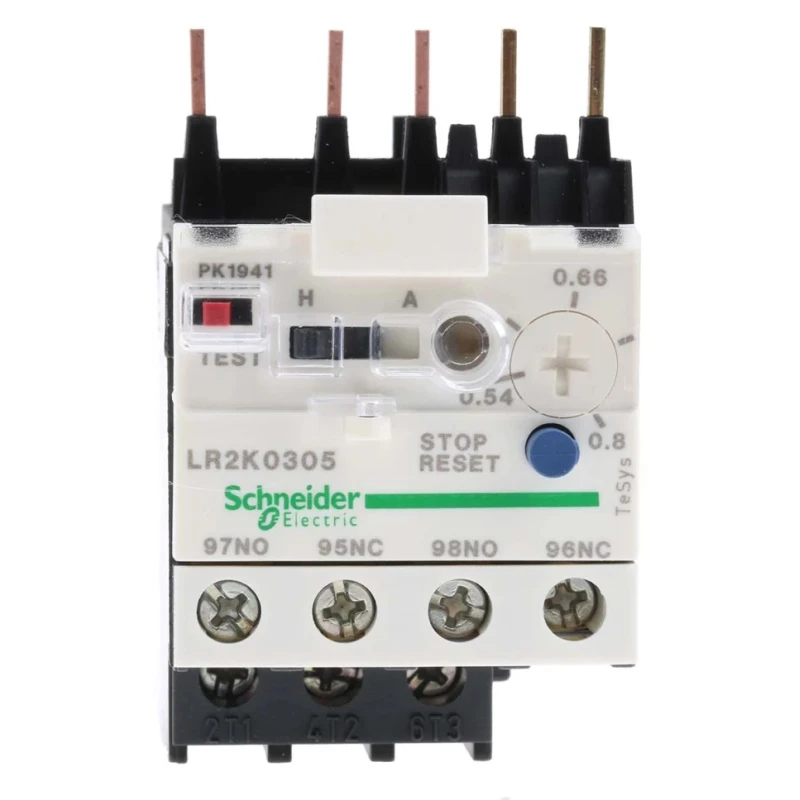

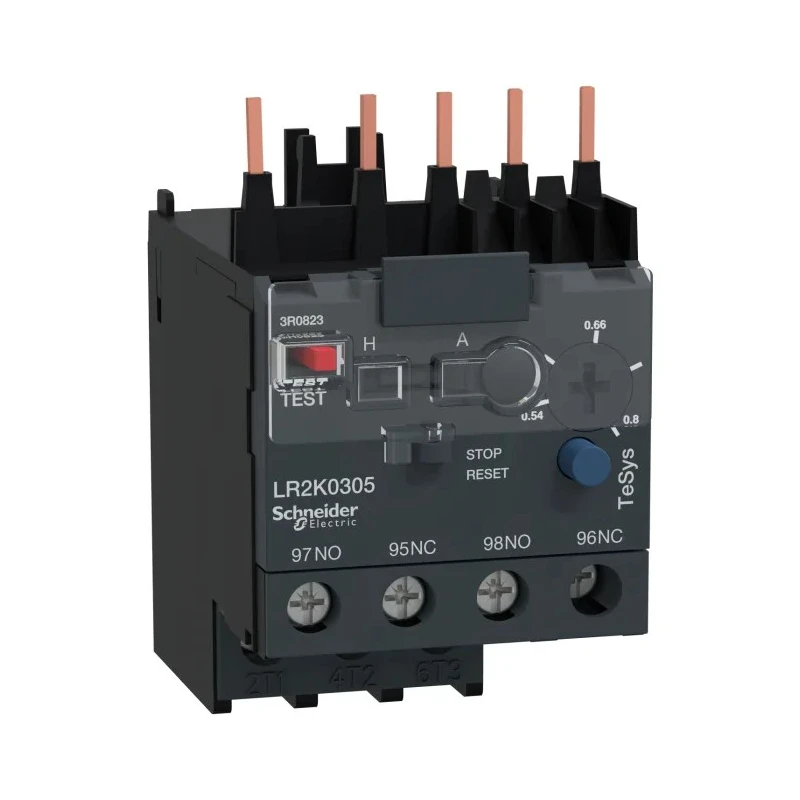

Schneider Electric TeSyS LR Thermal Overload Relay 1 NO/1 NC 0.54-0.8A FLC 10A Contact Rating 100W 250V DC LR2K0305

Name: Schneider Electric TeSyS LR Thermal Overload Relay 1 NO/1 NC 0.54-0.8A FLC 10A Contact Rating 100W 250V DC LR2K0305
Brand: Schneider Electric
SKU: 180426
Price: 68.6 USD
Availability: InStock



Category Thermal Overload Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Length	116mm
Model	LR2K0305
Depth	65mm
IP Rating	IP2X
Width	45mm
Mount Type	Direct
Series	TeSyS LR
Power Rating	100W
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Contact Voltage	690V ac
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	10A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
Control Voltage	250, 690V dc
FLC Motor Rating	0.54, 0.8A

Key Features

Designed for motor protection with a 0.54 to 0.8 amp full load current range.
Features 1 normally open and 1 normally closed auxiliary contacts.
Capable of handling up to 10A relay contact current for durable operation.
Equipped with automatic and manual reset methods for operational flexibility.
Suitable for use at temperatures from -20°C to +55°C in industrial environments.
Compact dimensions with 45mm width, 65mm depth, and 116mm length for easy panel mounting.
Supports direct mounting with screw terminal types for secure installation.
Rated control voltage of 250 V DC and 690 V AC for versatile control applications.

Product Description

Schneider Electric LR2K0305 TeSyS LR Thermal Overload Relay offers precise and effective motor protection for industrial and automation applications. It supports a full load current (FLC) rating range of 0.54 to 0.8 amperes with a relay contact current rating up to 10 amperes and power rating of 100 watts.

This thermal overload relay is designed for direct mounting on motor control panels, featuring screw terminal connections for secure wiring. Its compact size with 45mm width, 65mm depth, and 116mm length allows straightforward integration into control cabinet assemblies.

Operating reliably in ambient temperatures from -20°C to +55°C, the device ensures dependable performance across a range of industrial environments. The relay supports both automatic and manual reset methods providing flexible operation and ease of recovery from overload conditions.

The device is rated IP2X for protection against insertion of fingers and harmful ingress of objects, ensuring safety compliance. It supports control voltages of 250 V DC and 690 V AC, making it adaptable to diverse motor control systems.

Designed for motor protection across 0.54 to 0.8A FLC motor ratings. Durable relay contact rating of 10A for sustained industrial use. Includes both automatic and manual reset options for operational control. Compact form factor with secure screw terminals for easy panel installation.

Wide operating temperature range suits varied industrial climates. Protected against solid object ingress with IP2X rating. Suitable for a range of industrial and automation control applications.

This Schneider Electric Thermal Overload Relay is ideal for use in electrical control panels, automation systems, and motor protection within industrial, manufacturing, and commercial sectors.
