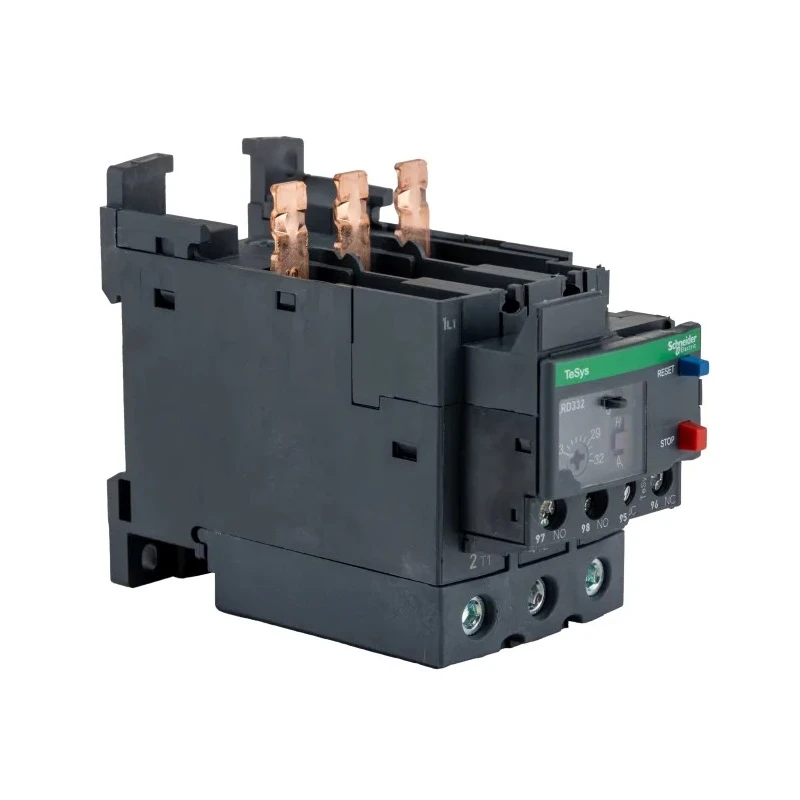

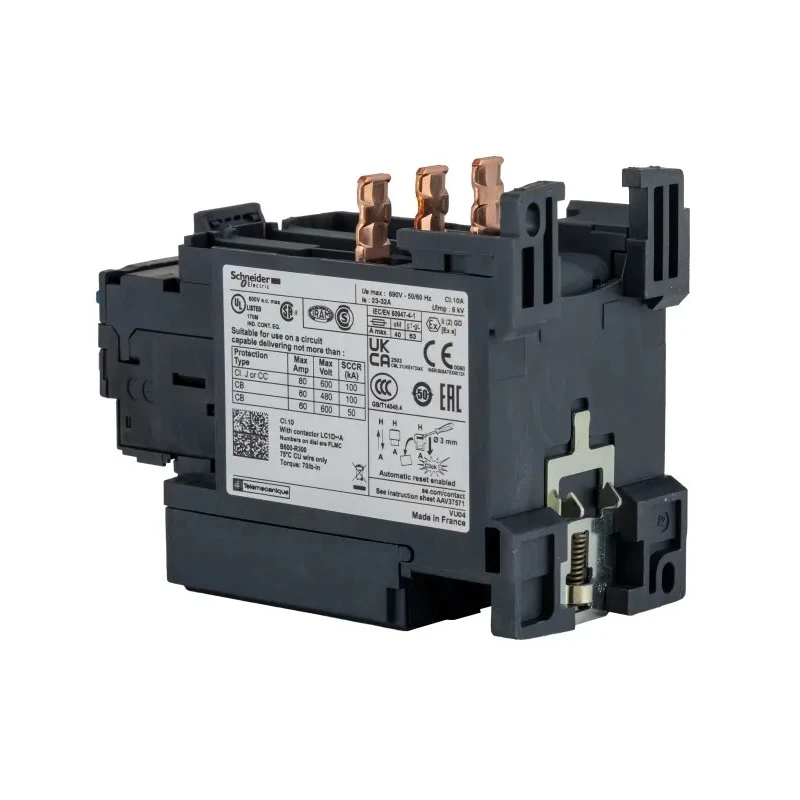

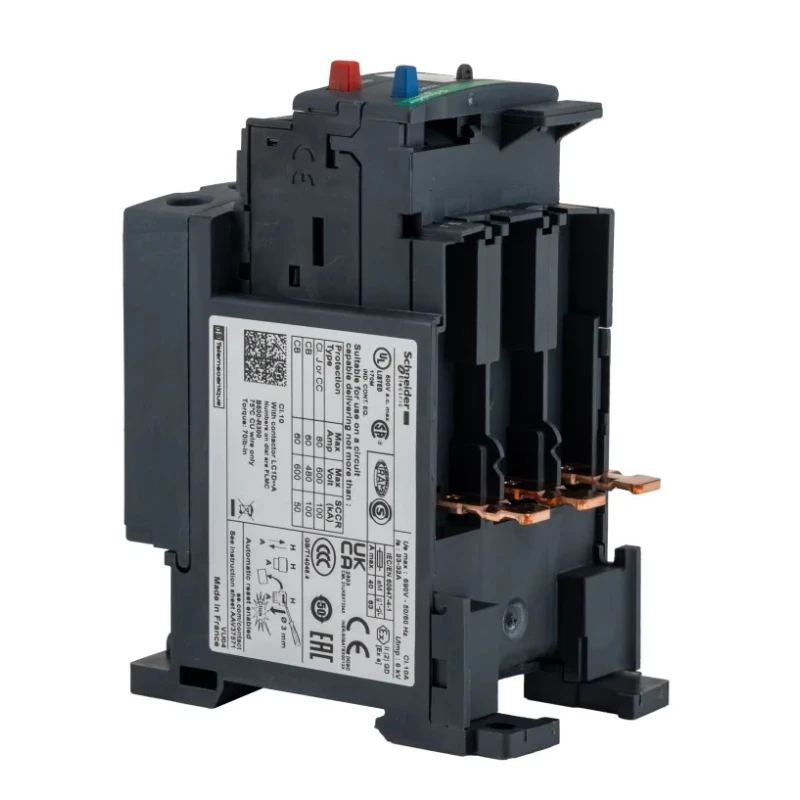

Schneider Electric Thermal Overload Relay 1 NO/1 NC 23A 32A F.L.C 32A Contact Rating 22 kW 3 Pole LRD332
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 123mm |
| Model | LRD332 |
| Depth | 123mm |
| IP Rating | IP20 |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | LRD |
| Power Rating | 22kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 690V |
| Contact Voltage | 1kV ac |
| Reset Method | Push Button |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 23, 32A |
| Adjustable Current Range | 23 → 32 A |
| Schneider Electric LRD3 Overload Relay, 23 → 32 A Contact Rating, TeSys DBrand | Schneider Electric |
Key Features
- Adjustable current range from 23 to 32 amperes for versatile motor protection.
- Equipped with 1 normally open (NO) and 1 normally closed (NC) contact for control precision.
- Operating temperature range from -20°C to 60°C accommodates diverse environments.
- Compact dimensions with 123mm length, 55mm width, and 123mm depth for DIN rail mounting.
- Supports supply voltages up to 690 V AC for broad industrial applications.
- IP20 rated for protection against solid objects and safe indoor use.
- Utilizes EverLink screw terminals ensuring secure and reliable connections.
- Thermal overload class 10A compliant as per IEC 60947-4-1 standards for efficient motor safeguarding.
Product Description
Schneider Electric LRD332 Thermal Overload Relay is engineered for dependable motor protection in industrial environments. It features an adjustable current range of 23 to 32 A, making it suitable for a variety of motor ratings. The product is configured with 1 normally open (NO) and 1 normally closed (NC) contact to provide precise control and reliable signaling for motor protection circuits.
This relay supports a supply voltage of up to 690 V and boasts an operating temperature range from -20°C to 60°C, ensuring consistent performance across diverse conditions. Its compact dimensions of 123mm height, 55mm width, and 123mm depth enable easy DIN rail mounting, facilitating efficient installation within control panels.
The device utilizes EverLink screw terminals that provide secure connections for both power circuits (1 to 35 mm² cables) and control circuits (1 to 2.5 mm² cables), accommodating a variety of wiring practices. It is rated IP20 for protection against solid objects and complies with thermal overload class 10A according to IEC 60947-4-1, ensuring motor safety and operational reliability.
Additional design features include temperature compensation for consistent operation and a robust structure resistant to shocks up to 15 G. This thermal overload relay is ideal for integration with contactors such as the LC1D40A and LC1D65A, making it well-suited for industrial motor control and protection applications.
Applications range from industrial manufacturing to HVAC and water treatment systems where motor protection is critical. The product can be mounted either on a plate or DIN rail, offering flexibility in installation to fit various industrial setups.
Adjustable current range from 23 to 32 amperes for versatile motor protection. Equipped with 1 normally open (NO) and 1 normally closed (NC) contact for control precision. Operating temperature range from -20°C to 60°C accommodates diverse environments.
Compact dimensions with 123mm length, 55mm width, and 123mm depth for DIN rail mounting. Supports supply voltages up to 690 V AC for broad industrial applications. IP20 rated for protection against solid objects and safe indoor use.
Utilizes EverLink screw terminals ensuring secure and reliable connections. Thermal overload class 10A compliant as per IEC 60947-4-1 standards for efficient motor safeguarding. Robust shock resistance capability up to 15 G ensures operational durability.
Suitable for use with contactors such as LC1D40A and LC1D65A in industrial motor control systems. Explore Schneider Electric and related Overload Relay products at EnvMart for your industrial and commercial motor protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable current range of this thermal overload relay is from 23 to 32 amperes.
The maximum operating temperature for this model is 60°C.
It is equipped with 1 normally open (NO) and 1 normally closed (NC) contact, providing control precision.
This thermal overload relay supports supply voltages up to 690 V AC.
The dimensions of this unit are 123mm in length, 55mm in width, and 123mm in depth.
This model has an IP20 rating, which provides protection against solid objects and is suitable for indoor use.
It can be mounted on a DIN rail, facilitating efficient installation within control panels.
It complies with thermal overload class 10A as per IEC 60947-4-1 standards.
The contact rating for this thermal overload relay is 32A.
This model is suitable for applications in industrial manufacturing, HVAC, and water treatment systems where motor protection is critical.
It utilizes EverLink screw terminals, ensuring secure and reliable connections for power and control circuits.
The FLC motor rating for this relay is 23A to 32A, making it suitable for various motor ratings.
