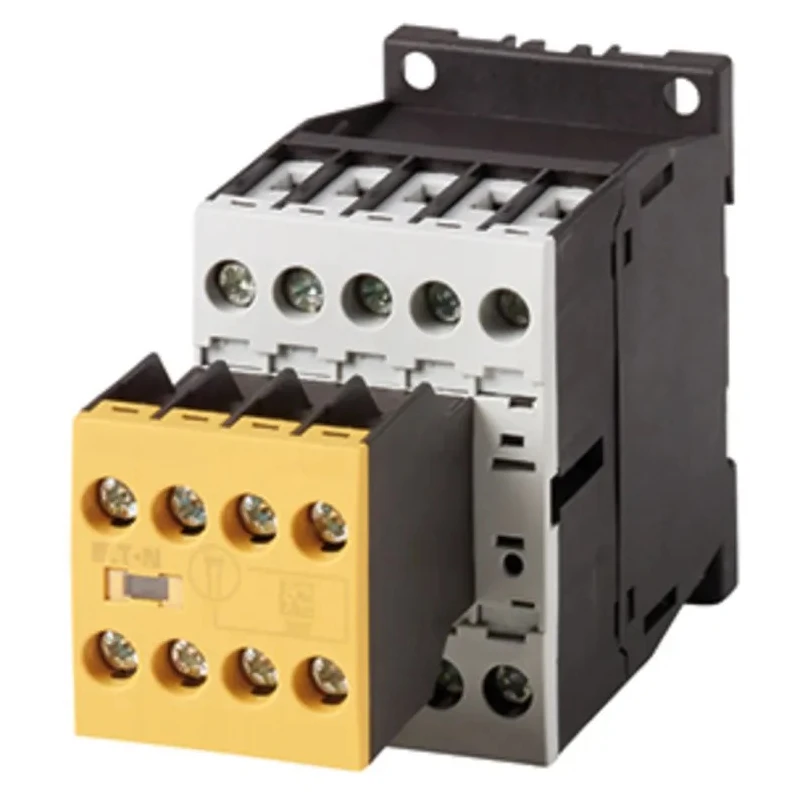

Eaton DILMS9-23 Contactor 3-Pole 240V AC Coil, 9A, 4kW Motor, Table Mount, 191741 DILMS9-23(230V50HZ,240V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Motor Control |
| Length | 45mm |
| Model | 191741 DILMS9-23(230V50HZ,240V60HZ) |
| Depth | 68mm |
| Width | 117mm |
| Mount Type | Table |
| Series | DILMS |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA, IEC |
| Contact Voltage | 400V ac |
| Coil Voltage | 240V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 5 |
| Auxiliary Contact Configuration | 2 NO/3 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3P |
| Eaton DILM Contactor, 230 V Coil, 3-Pole, 9 A, 4.5 kW, 400 VBrand | Eaton |
Key Features
- High-performance 3-pole power contactor for motor control circuits.
- Rated for 240V AC coil and suitable for 4kW motors up to 9A operational current.
- Features top-mounted, non-detachable auxiliary contacts for reliable circuit operation.
- Integrated mirror and interlocked opposing contacts enhance safety and status monitoring.
- Inspection window provides safe status indication and prevents manual activation.
- Durable screw clamp terminals ensure secure connections and easy installation.
- Yellow cover aids quick visual identification and additional safety compliance.
- Suitable for emergency stop circuits (category 4) and self-monitoring machine controls.
Product Description
The Eaton 191741 DILMS9-23(230V50HZ,240V60HZ) is a premium 3-pole power contactor engineered for demanding industrial, automation, and process control environments. Designed with a robust 240V AC coil, it delivers reliable motor switching and protection for loads up to 4kW and 9A operational current. This contactor is especially suited for applications involving AC motors, industrial equipment, and automated machinery where stringent safety and durability are required.
Key operational features include integrated mirror and interlocked opposing contacts to reinforce safety compliance. The yellow highlighted cover and prominent inspection window enable rapid status checks and minimize risk by preventing unauthorized manual activation. These safety mechanisms qualify the DILMS9-23 for emergency stop circuits (category 4) and high-integrity self-monitoring machine-control systems, making it ideal for manufacturing plants, HVAC installations, and automated process lines.
The top-mounted auxiliary contacts are non-detachable, enhancing circuit reliability and ease of maintenance. With a screw clamp terminal construction, this contactor simplifies installation, ensuring secure and vibration-resistant connections. Its normal state configuration is 3 NO contacts plus 2 NO / 3 NC auxiliary contacts, providing flexible control for various circuit architectures.
Built for wide environmental tolerance, the DILMS9-23 operates between -25°C to 60°C and meets international standards UL, CSA, and IEC. Its compact footprint (Length 45mm, Width 117mm, Depth 68mm) fits easily into control panels or machinery housings.
With reliable operation, enhanced safety features, and versatile auxiliary configurations, this Eaton DILMS series contactor meets the rigorous requirements of industrial automation, electrical distribution, and commercial control systems. Its country of origin is Romania as specified, ensuring robust European manufacturing standards.
Key industrial use cases: factory automation, process equipment, HVAC systems, water treatment, manufacturing lines, and emergency stop circuits. Explore other Eaton contactors and power control devices in the EnvMart catalog for advanced industrial solutions.
Explore more products in our Power Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILMS9-23 contactor has a power rating of 4kW.
This model has an operational current of 9A.
The coil voltage for the DILMS9-23 contactor is 240V AC.
The dimensions of this contactor are 45mm in length, 117mm in width, and 68mm in depth.
It features screw clamp terminals for secure connections and easy installation.
The operating temperature range for the DILMS9-23 is from -25°C to 60°C.
This contactor has 3 poles.
The auxiliary contact configuration consists of 2 normally open (NO) and 3 normally closed (NC) contacts.
It complies with international standards including UL, CSA, and IEC.
This contactor is suitable for motor control, safety applications, factory automation, and HVAC systems.
Yes, it includes integrated mirror and interlocked opposing contacts for enhanced safety, as well as an inspection window for status indication.
The Eaton DILMS9-23 contactor is manufactured in Romania.
