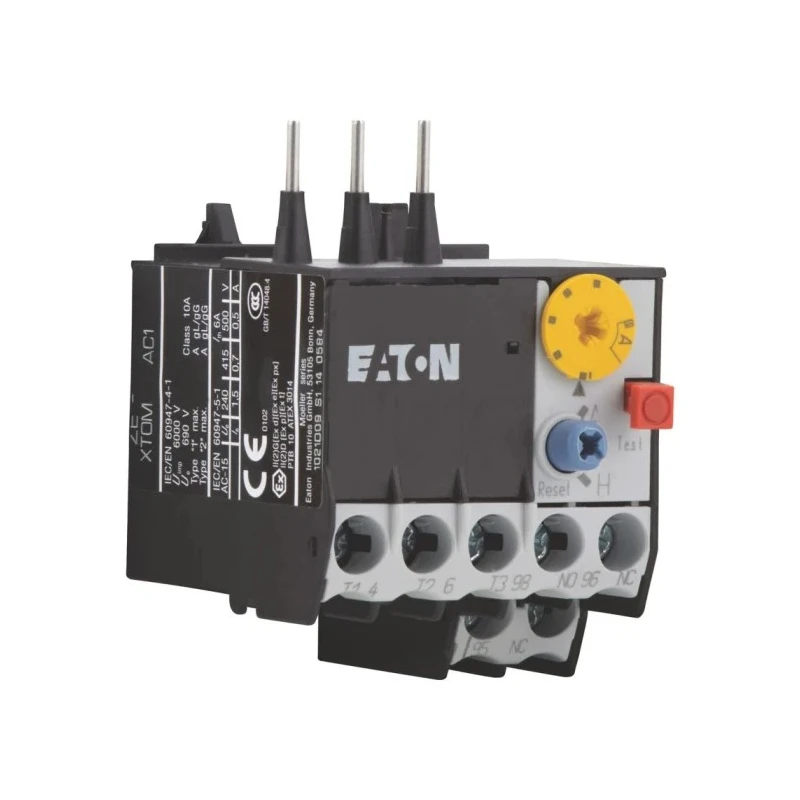

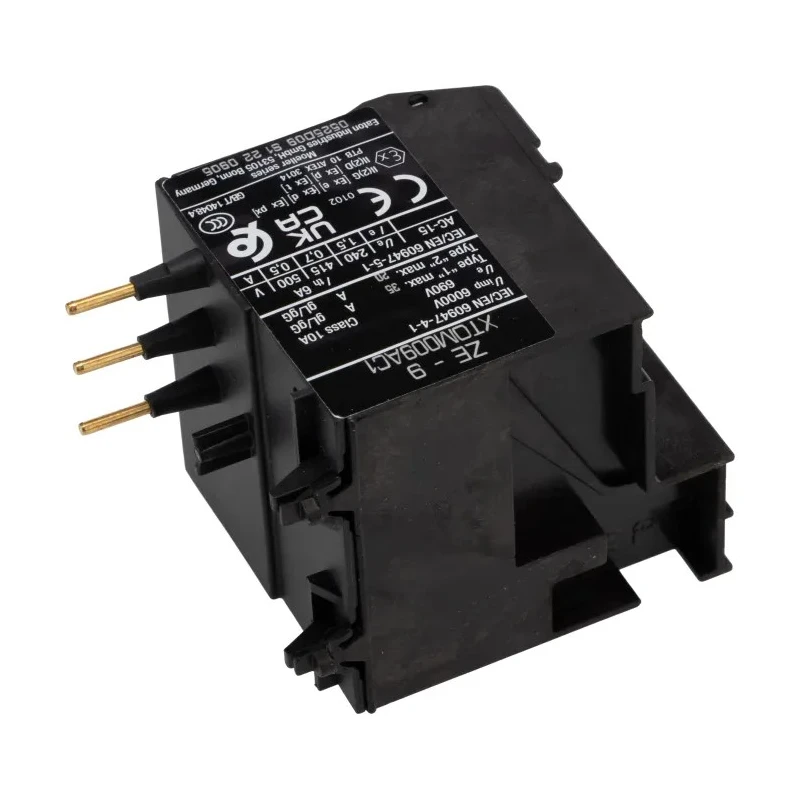

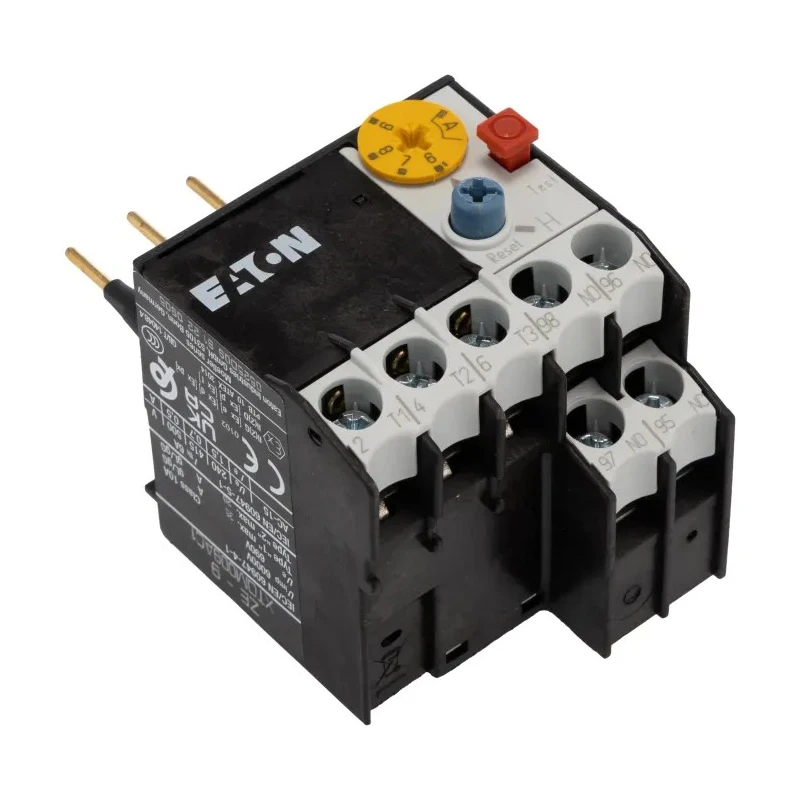

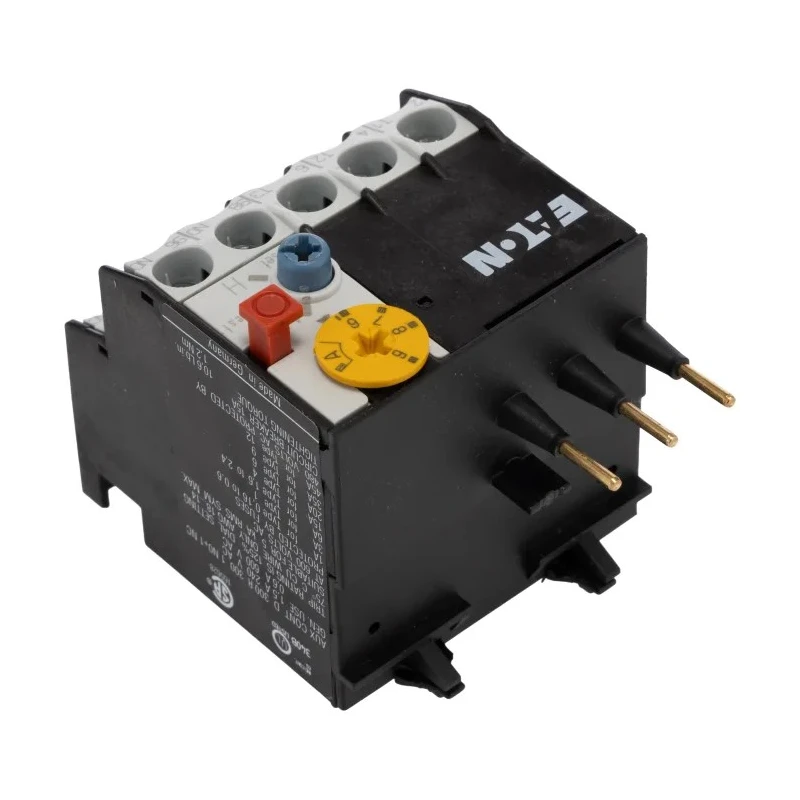

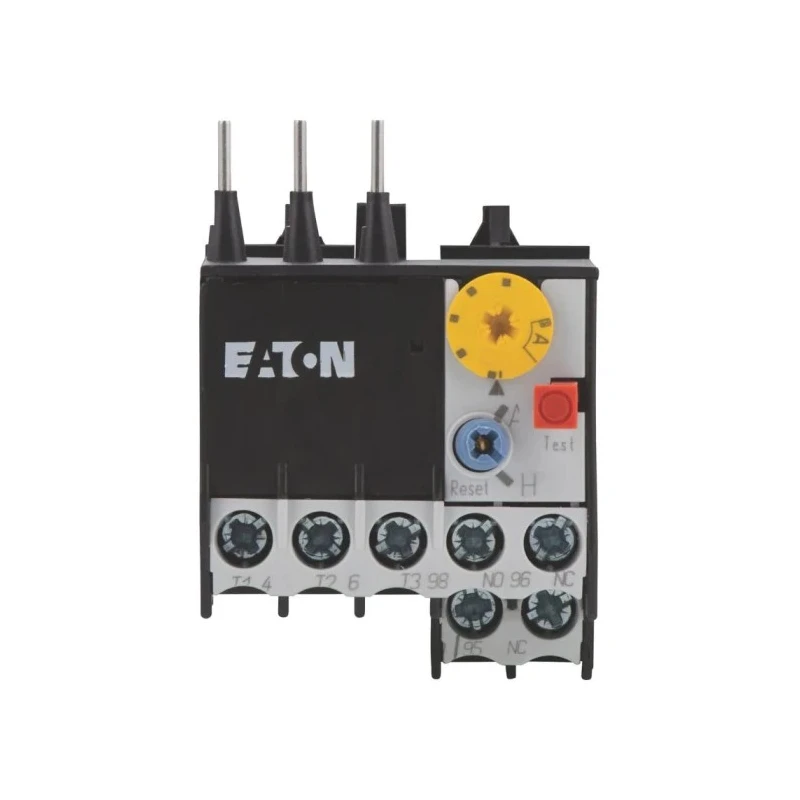

Eaton ZE Series Overload Relay, 6 - 9A FLC, 1 NO/1 NC, 9A Contact Rating, 6W, 600V AC, Direct Mount, 014708 ZE-9

Name: Eaton ZE Series Overload Relay, 6 - 9A FLC, 1 NO/1 NC, 9A Contact Rating, 6W, 600V AC, Direct Mount, 014708 ZE-9
Brand: Eaton
SKU: 86626
Price: 91.82 USD
Availability: InStock



Category Overload Relays Brand Eaton Condition New

Specifications

Country of Origin	Germany
Brand	Eaton
Length	106mm
Model	014708 ZE-9
Depth	58mm
IP Rating	IP20
Width	45mm
Mount Type	Direct
Series	ZE
Power Rating	6W
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-5°C
Terminal type	Screw
Supply Voltage	690V
Standards/Approvals	CSA, CE, UL, IEC/EN 60947-4-1, VDE 0660
Contact Voltage	690V ac
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	9A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	1P
Control Voltage	600V ac
FLC Motor Rating	6, 9A
Adjustable Current Range	6 → 9 A

Key Features

Adjustable full load current setting between 6A and 9A.
Features 1 normally open and 1 normally closed auxiliary contact for versatile control applications.
Direct mounting ensures ease in panel installations.
9A contact rating and 6W power rating suitable for a range of industrial machinery.
Screw terminals provide secure electrical connections.
Supports both automatic and manual reset modes.
Durable construction with IP20 ingress protection and robust shock resistance.
Wide operational voltage up to 600V AC and 690V supply/control voltage.

Product Description

The Eaton ZE Series Overload Relay, model 014708 ZE-9, is a robust protection device engineered to safeguard AC motors against overload and phase failure conditions. This relay features an adjustable full load current (FLC) range of 6A to 9A, making it adaptable to various motor ratings and applications in industrial and building automation panels.

It is equipped with both one normally open (NO) and one normally closed (NC) auxiliary contact, providing versatile integration into control logic schemes. The relay is designed for direct mounting, expediting the installation process within electrical enclosures or control panels, and is compatible with contactor bases typically used in HVAC, manufacturing, and machinery control systems.

Rated for reliable operation at up to 9A contact current and a power dissipation of 6W, the relay accommodates supply and control voltages up to 690V and 600V AC respectively, ensuring suitability for various industrial network voltages. Its screw terminal configuration ensures secure wiring and maintenance simplicity.

The unit is built for flexibility with dual reset options - both automatic and manual - making it easy for maintenance personnel to restore service after a protection trip. The built-in test button allows convenient functional checks and troubleshooting during commissioning or periodic maintenance routines.

Engineered for safety, the relay provides IP20 touch-proof housing and withstands mechanical shock up to 10g for 10 milliseconds, supporting use in challenging industrial settings. It operates reliably between -5°C and 55°C, so it can handle temperature extremes found in many electrical rooms and factory environments.

Applications commonly include motor protection in conveyor systems, pumps, compressors, HVAC drives, ventilation equipment, and a versatile range of machinery. In addition to motor overload protection, the adjustable current range helps prevent nuisance tripping while adapting to varied load profiles. Its compact body (length 106mm, width 45mm, depth 58mm) fits easily into existing control cabinets without requiring excessive space.

The Eaton ZE Series continues a legacy of durable, reliable performance for industrial control and protection, especially in sectors such as manufacturing, infrastructure, water treatment, and commercial HVAC setups.
