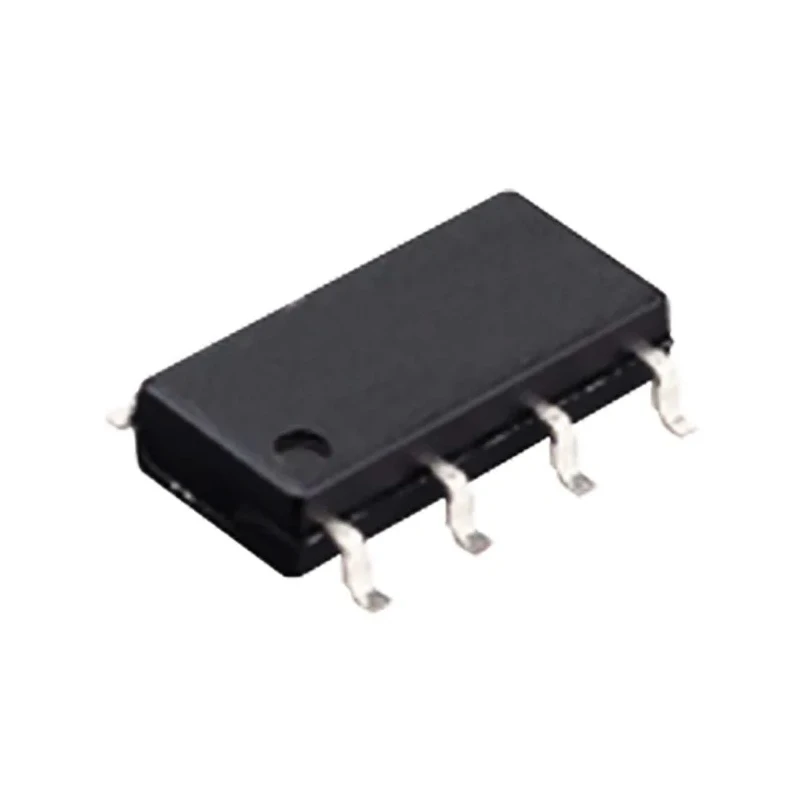

Panasonic PhotoMOS Series Solid State Relay 1.5 A Load, Surface Mount, 60 V Load AQW212S

Panasonic AQW212S PhotoMOS Series Solid State Relay provides reliable electronic switching for electrical and automation applications. Designed for both AC and DC switching, this relay supports a maximum load current of 1.5 A and a maximum load voltage of 60 V, suitable for precise control circuitry.

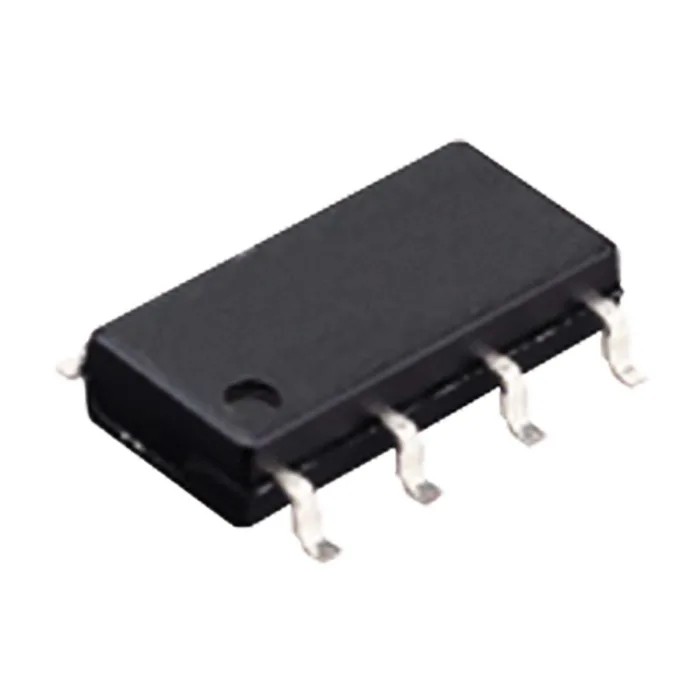

This model features a surface mount package with a compact miniature SOP8-pin form factor measuring approximately 4.4 mm by 9.37 mm by 2.1 mm. Its MOSFET output type allows for efficient low-level analog signal control with very low off-state leakage current of 1 μA, reducing power consumption.

It offers stable and consistent performance across an operating temperature range from -40°C to 85°C, making it suitable for demanding industrial, automation, manufacturing, and control systems environments.

The relay has a 2SPNO contact configuration and an on-state resistance of 2.5 Ω, ensuring low voltage drop and high switching efficiency. It meets RoHS compliance standards for environmental safety and material content.

With a construction and design made in Japan, this solid state relay ensures premium quality and longevity. Its surface mount technology and miniature size facilitate integration in compact assemblies and automated manufacturing processes.

This Solid State Relay is ideal for AC and DC switching applications. Featuring low off-state leakage current of 1 μA to minimize power losses. Includes MOSFET output for high reliability and durability. Operates effectively within a temperature range of -40°C to 85°C.

Compact miniature SOP8-pin design allows easy integration into surface mount PCB layouts. On state resistance of just 2.5 Ω ensures minimal voltage drop during operation. Complies with RoHS standards for environmental safety.

Manufactured in Japan ensuring high quality and dependability.

This product is widely used in industrial automation, electrical control, instrumentation, telecommunications, and other electronics manufacturing sectors. EnvMart offers comprehensive browsing for Panasonic relays and solid state switching components.
