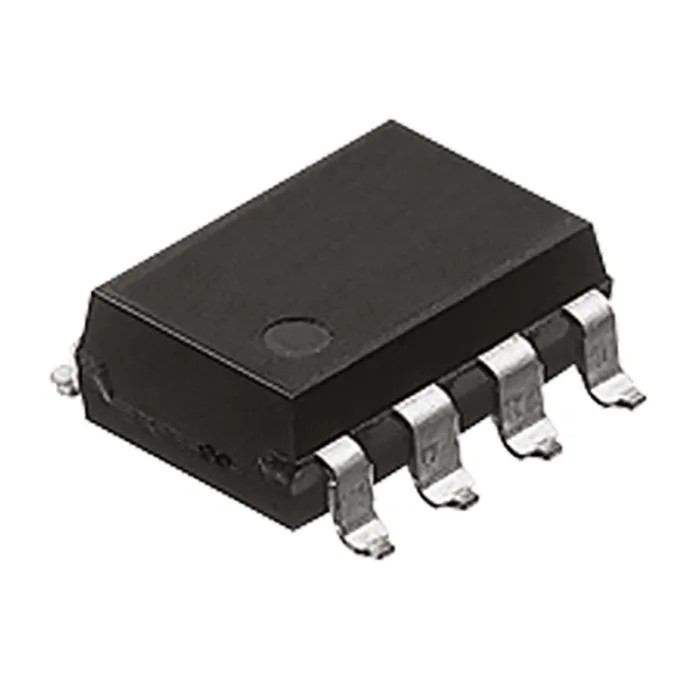

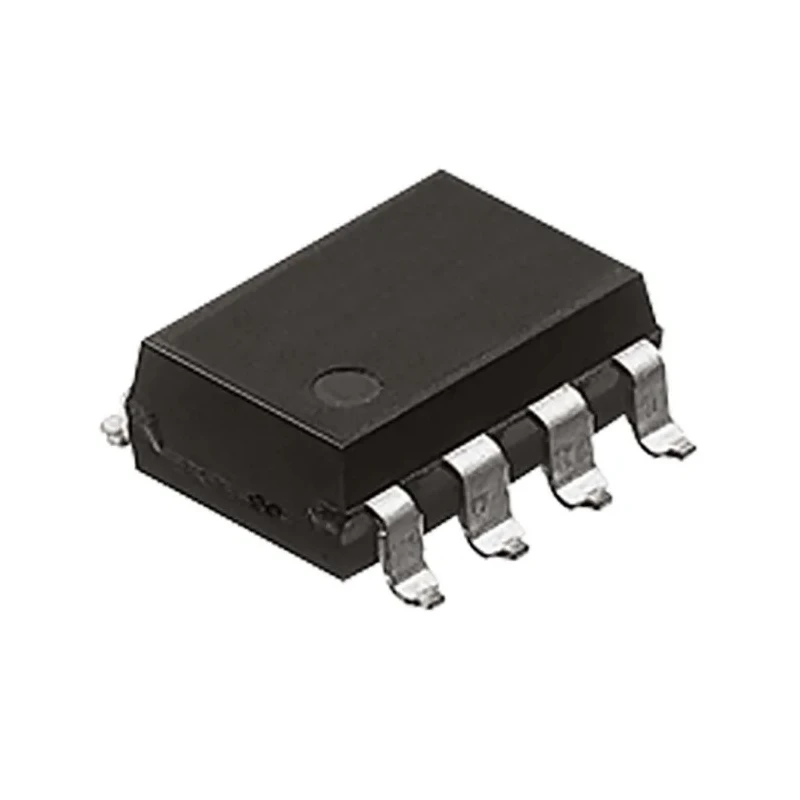

Panasonic PhotoMOS Series Solid State Relay, 0.3 A Load, Surface Mount, 400 V Load AQW214EHA

Panasonic AQW214EHA PhotoMOS Series Solid State Relay delivers reliable and high-speed switching with excellent reinforced insulation up to 5,000 V, designed for both industrial and commercial electronics applications. This solid state relay supports a maximum load current of 0.3 A and a load voltage up to 400 V, making it ideal for use in control systems requiring AC/DC switching functions.

The device employs a MOSFET output type that handles low-level analogue signals effectively, providing fast response times and consistent performance. Its compact DIP 8-pin through-hole package facilitates easy integration into printed circuit boards while ensuring mechanical robustness.

The relay's contact configuration of 2SPNO allows for flexible usage including dual independent 1 Form A configurations, expanding its applicability across various control circuits. The low on-state resistance of 35 ohms and minimal off-state leakage current of just 1 μA contribute to reducing power loss and ensuring energy-efficient operation.

Designed to operate within a wide temperature range of -40°C to 85°C, this relay maintains stable performance even in demanding environments. Its low capacitance of 1.5 pF ensures precise and clean signal switching with minimal interference.

Manufactured in Thailand, this relay complies with RoHS standards, ensuring environmentally responsible production. It is suitable for use in industrial automation, electronics manufacturing, laboratory equipment, and other applications requiring compact and reliable solid state relays.

The relay uses reinforced insulation validated at 5,000 V for enhanced safety compliance. Supports AC/DC switching with MOSFET output providing fast and efficient switching. Compact DIP 8-pin surface mount for ease of PCB mounting and integration.

Low off-state leakage current of 1 μA minimizes power consumption. Wide operating temperature range from -40°C to 85°C supports harsh condition operation. Low on-state resistance at 35 ohms ensures efficient load conduction.

Capacitance of 1.5 pF optimizes switching characteristics. Contact configuration 2SPNO supporting two independent form A circuits. Manufactured in Thailand maintaining high quality and RoHS compliance.
