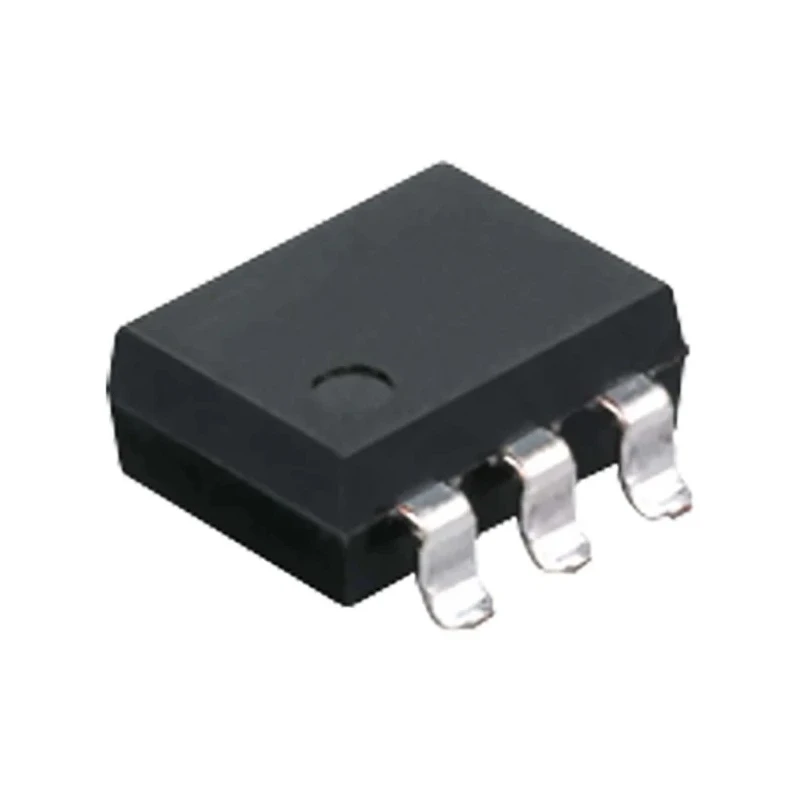

Panasonic PhotoMOS Series Solid State Relay, Surface Mount, 3 A Load Current, 80 V Load AQV255GS
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 2.1mm |
| Length | 6.3mm |
| Model | AQV255GS |
| Width | 4.4mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | PhotoMOS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 0.8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 3A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 80V |
| Minimum Load Voltage | 64V |
| Off State Leakage Current | 10nA |
| Continuous load current | Max. 3A |
| Load voltage | 50V and 80V |
Key Features
- This relay uses MOSFET output type for efficient switching.
- It supports AC/DC switching with SPST contact configuration.
- Compact dimensions of 6.3 mm length, 4.4 mm width, and 2.1 mm height.
- Operates reliably within a temperature range of -40°C to 85°C.
- Designed to replace mercury and mechanical relays with improved specifications.
- Features low off-state leakage current of 10 nA and capacitance of 0.8 pF.
- Through-hole terminal type for secure mounting.
- Manufactured in Japan ensuring quality and compliance with RoHS standards.
Product Description
Panasonic AQV255GS PhotoMOS Series Solid State Relay is a miniature SOP6-pin relay designed for industrial electronics and automation applications. With a maximum continuous load current of 3 A and load voltage capability up to 80 V, this surface mount relay provides reliable AC/DC switching functionality.
The relay employs MOSFET output technology, offering low power consumption and minimal leakage current of 10 nA, making it ideal for control circuits in industrial, manufacturing, and automation equipment. Its compact size (6.3 mm length, 4.4 mm width, 2.1 mm height) allows space-saving circuit design without compromising performance.
Equipped with SPST contact configuration and through-hole terminals, the AQV255GS ensures secure and versatile mounting options. It is rated to operate over a wide temperature range from -40°C to 85°C, suitable for demanding environments.
Its advanced specifications provide an effective replacement for traditional mercury and mechanical relays, reducing environmental hazards and improving system reliability. Compliance with RoHS standards demonstrates Panasonic's commitment to environmental regulations.
This relay uses MOSFET output type for efficient switching. Supports AC/DC switching with SPST contact configuration. Compact dimensions of 6.3 mm length, 4.4 mm width, and 2.1 mm height. Operates reliably within -40°C to 85°C temperature range.
Low off-state leakage current of 10 nA and capacitance of 0.8 pF. Through-hole terminal type for secure mounting. Manufactured in Japan ensuring quality and RoHS compliance.
This solid state relay is suited for industrial automation, signal conditioning, control systems, and electrical applications requiring reliable switching with minimal wear and noise. Users seeking a compact, durable, and environmentally friendly relay solution will find the Panasonic AQV255GS highly effective.
Explore more Solid State Relays and related industrial electrical components to meet your automation and control requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for the Panasonic AQV255GS is 3 A.
This model can handle a maximum load voltage of 80 V.
It uses a MOSFET output type for efficient switching.
The relay operates reliably within a temperature range of -40°C to 85°C.
The AQV255GS features an SPST contact configuration.
The relay has compact dimensions of 6.3 mm in length, 4.4 mm in width, and 2.1 mm in height.
The off-state leakage current is 10 nA.
It features a through-hole terminal type for secure mounting.
Yes, it complies with RoHS standards, ensuring environmental safety.
This relay is suitable for industrial automation, signal conditioning, control systems, and electrical applications requiring reliable switching.
The capacitance of the AQV255GS is 0.8 pF.
It is manufactured in Japan, ensuring quality and compliance with standards.
